TOYOTA SIENNA ASL30L-PFTEKK / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

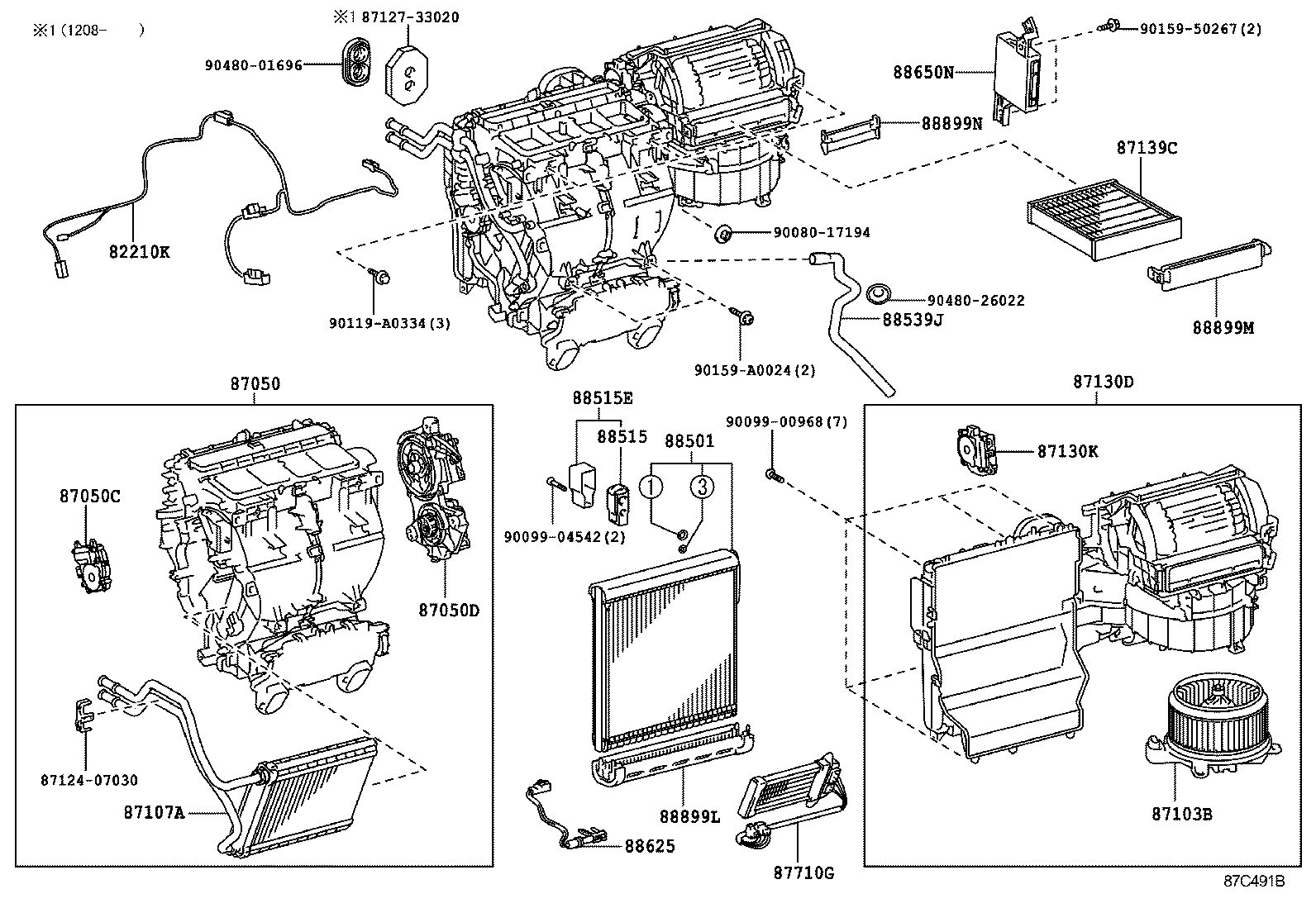

FRONT ILLUST NO. 1 OF 3(1109- )ASL30

SIENNA | HEATING AIR CONDITIONING COOLER UNIT 82210K - HARNESS ASSY, AIR CONDITIONER 87050 - RADIATOR ASSY, AIR CONDITIONER 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87107A - UNIT SUB-ASSY, HEATER RADIATOR ** Std Part ** Std Part 87130D - BLOWER ASSY 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 87139C - FILTER, CLEAN AIR 87710G - QUICK HEATER ASSY 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88515E - VALVE, COOLER EXPANSION, W/PACKING 88539J - HOSE, DRAIN COOLER 88625 - THERMISTOR, COOLER, NO.1 88650N - AMPLIFIER ASSY, AIR CONDITIONER 88899L - PARTS, COOLING UNIT 88899M - PLATE, COVER(FOR AIR FILTER) 88899N - PLATE, COVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
