TOYOTA CAMRY AURION HV ARL GSV50R-JETSKQ / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

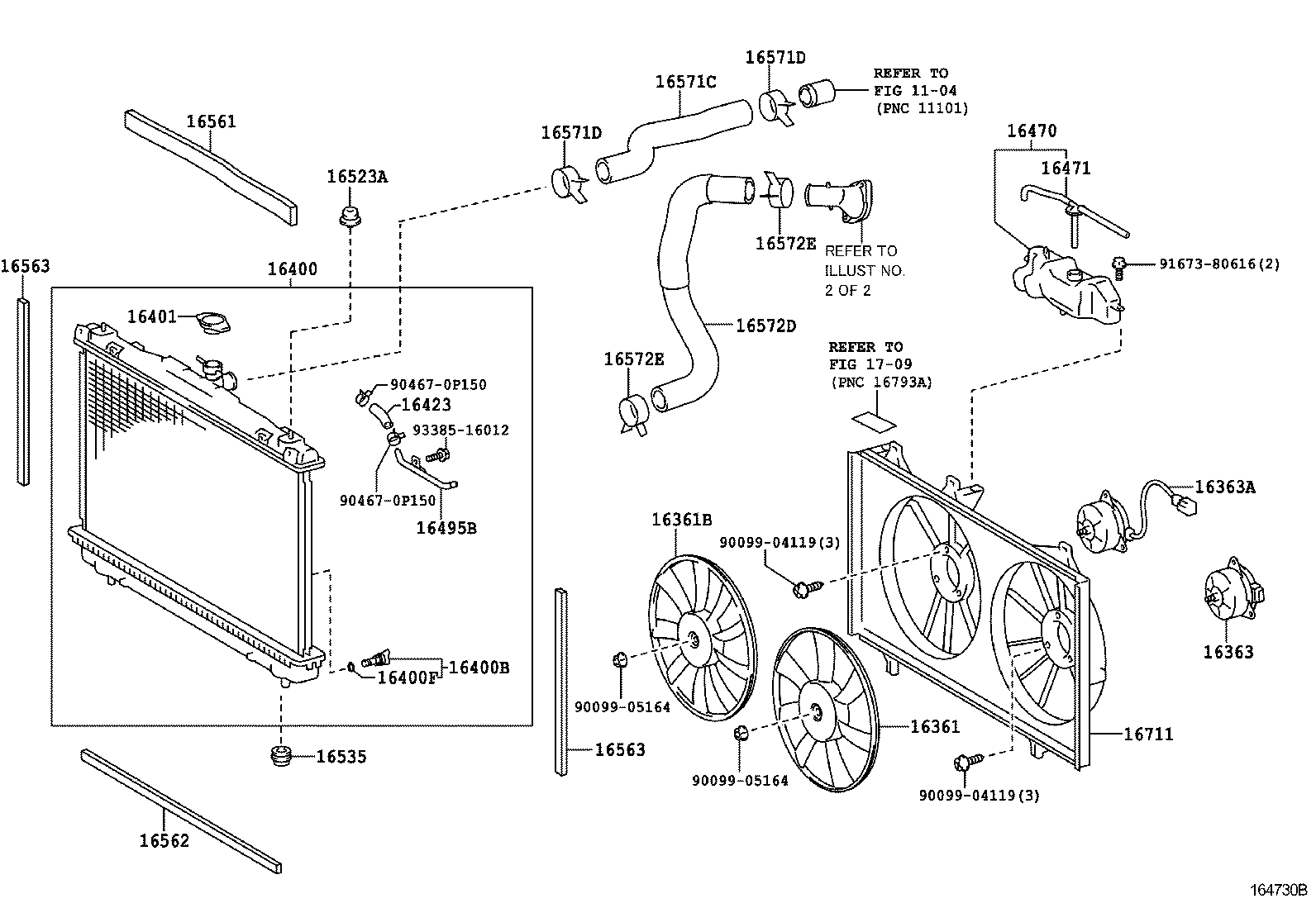

ILLUST NO. 1 OF 2(1202- )2GRFE

CAMRY AURION HV ARL | RADIATOR WATER OUTLET ** Refer Fig 16361 - FAN 16361B - FAN, NO.2 16363 - MOTOR, COOLING FAN 16363A - MOTOR, COOLING FAN, NO.2 16400 - RADIATOR ASSY 16400B - PLUG, RADIATOR DRAIN COCK 16400F - PACKING(FOR RADIATOR DRAIN COCK) 16401 - CAP SUB-ASSY, RADIATOR 16423 - HOSE, RADIATOR TANK 16470 - TANK ASSY, RADIATOR RESERVE 16471 - CAP SUB-ASSY, RESERVE TANK 16495B - PIPE (FOR ATM OIL COOLER) 16523A - CUSHION, RADIATOR SUPPORT 16535 - SUPPORT, RADIATOR, LOWER 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 16571C - HOSE, RADIATOR, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16571D - CLIP, RADIATOR HOSE, NO.1 16572D - HOSE, RADIATOR, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16572E - CLIP, RADIATOR HOSE, NO.2 16711 - SHROUD, FAN ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
