TOYOTA CAMRY HYBRID CHINA ASV50L-JETVKC / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

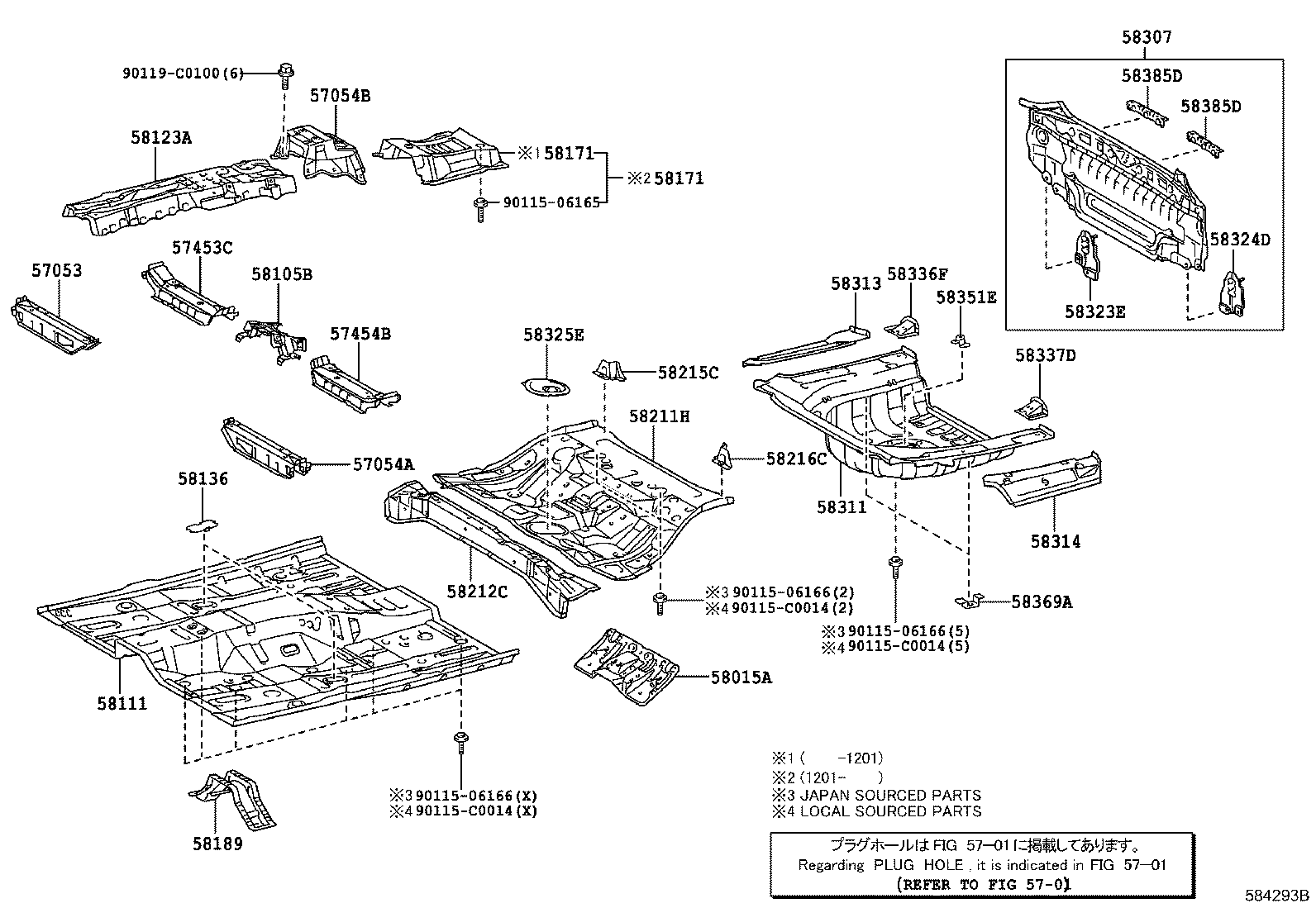

FLOOR PANEL ILLUST NO. 1 OF 2(1112- )ACV51,ASV50

CAMRY HYBRID CHINA | FLOOR PAN LOWER BACK PANEL ** Refer Fig 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH 57054B - REINFORCET SUB-ASSY, CROSS MEMBER FLOOR, NO.4 57453C - MEMBER, FRONT FLOOR CROSS SIDE, RH 57454B - MEMBER, FRONT FLOOR CROSS SIDE, LH 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB 58111 - PAN, FRONT FLOOR 58123A - SUPPORT, SHIFT & SELECT LEVER 58136 - COVER, FRONT FLOOR HOLE 58171 - REINFORCEMENT, PARKING BRAKE BASE 58171 - REINFORCEMENT, PARKING BRAKE BASE 58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET 58211H - PAN, CENTER FLOOR 58212C - PAN, CENTER FLOOR, FRONT 58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH 58216C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313 - PANEL, REAR FLOOR SIDE, RH 58314 - PANEL, REAR FLOOR SIDE, LH 58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH 58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58336F - REINFORCEMENT, REAR FLOOR PAN, RH 58337D - REINFORCEMENT, REAR FLOOR PAN, LH 58351E - BRACKET, SPARE WHEEL CLAMP 58369A - BRACKET, FUEL TUBE, NO.3 58385D - BRACKET, REAR BUMPER COVER 58385D - BRACKET, REAR BUMPER COVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
