TOYOTA DYNA WU710L-TKFTLV3 / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE TUBE CLAMP

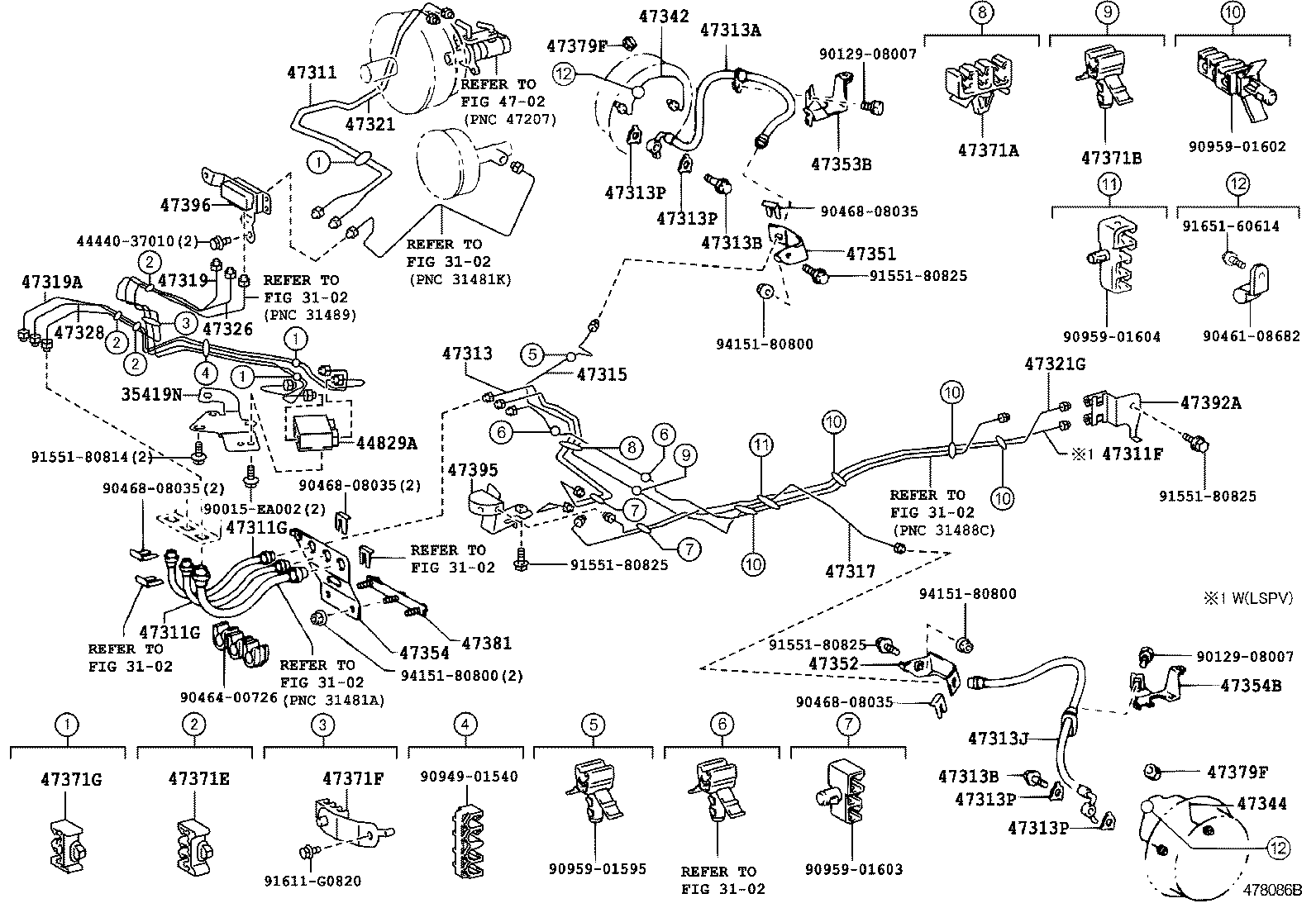

DRUM BRAKE-W/O(ABS) & W(CHECK VALVEILLUST NO. 1 OF 4(1107- )LHD..65T..GEN ; (1107- )WU710..LHD

DYNA | BRAKE TUBE CLAMP ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 35419N - VALVE, CHECK ** Std Part 44829A - BRACKET, CHECK VALVE ** Refer Fig 47311 - TUBE, FRONT BRAKE, NO.1 47311F - TUBE, FRONT BRAKE, FRAME NO.1 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47315 - TUBE, FRONT BRAKE, NO.5 47317 - TUBE, FRONT BRAKE, NO.7 47319 - TUBE, FRONT BRAKE, NO.9 47319A - TUBE, FRONT BRAKE, NO.10 47321 - TUBE, REAR BRAKE, NO.1 47321G - TUBE, REAR BRAKE, FRAME NO.1 47326 - TUBE, REAR BRAKE, NO.6 47328 - TUBE, REAR BRAKE, NO.8 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) 47353B - BRACKET, FLEXIBLE HOSE, NO.3 47354 - BRACKET, FRONT FLEXIBLE HOSE 47354B - BRACKET, FLEXIBLE HOSE, NO.4 47371A - CLAMP, BRAKE TUBE, NO.1 47371B - CLAMP, BRAKE TUBE, NO.6 47371E - CLAMP, BRAKE TUBE, NO.9 47371F - CLAMP, BRAKE TUBE, NO.10 47371G - CLAMP, BRAKE TUBE, NO.11 47379F - DAMPER, TUBE(FOR FRONT) 47379F - DAMPER, TUBE(FOR FRONT) 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 47392A - WAY, BRAKE TUBE, NO.2 47395 - WAY, BRAKE TUBE, NO.3 47396 - WAY, BRAKE TUBE, NO.4 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
