TOYOTA DYNA WU710R-TKMRJ3 / TOOL-ENGINE-FUEL / CYLINDER BLOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

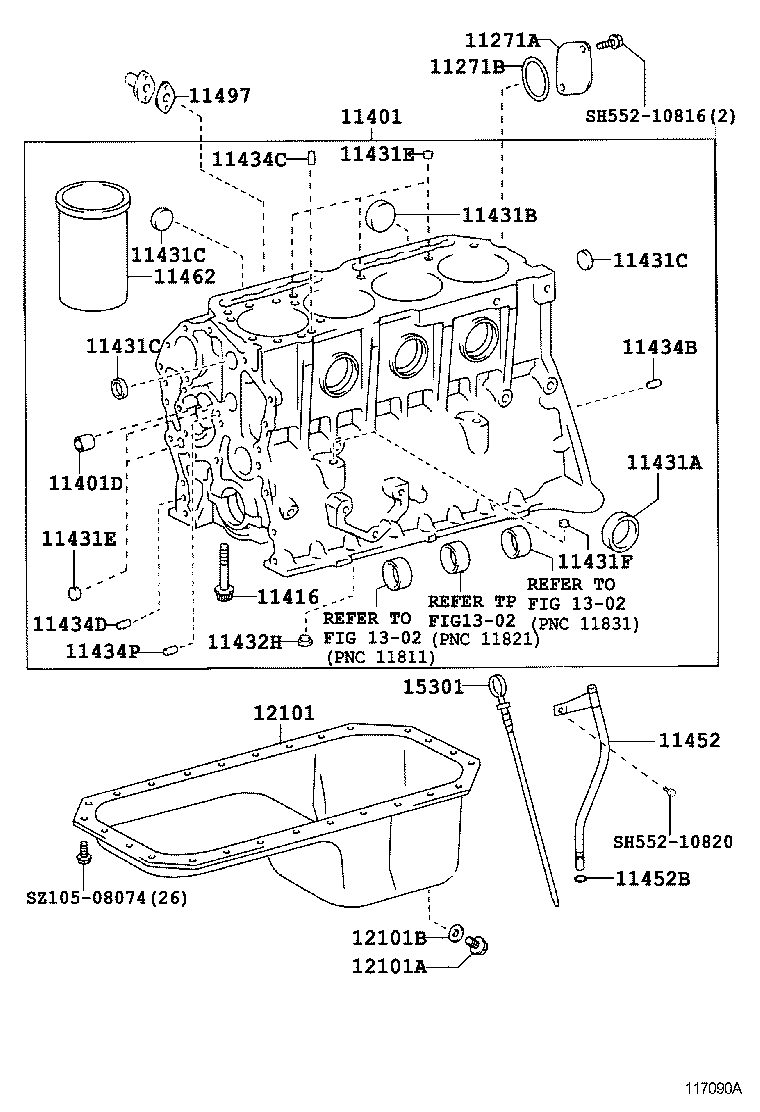

CYLINDER BLOCK

(1107- )W04D..65T ; (1107- )W04D..WU710..R

DYNA | CYLINDER BLOCK 11271A - COVER, CYLINDER BLOCK, REAR 11271B - RING, O(FOR CYLINDER BLOCK REAR PLATE) 11401 - BLOCK SUB-ASSY, CYLINDER 11401D - BUSH(FOR OIL PUMP COVER) 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) 11432H - PLUG, W/HEAD TAPER SCREW, NO.5 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) 11434P - PIN, STRAIGHT(FOR OIL PUMP SET) 11452 - GUIDE, OIL LEVEL GAGE 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) 11462 - LINER, CYLINDER 11497 - GASKET, CYLINDER BLOCK OIL HOLE 12101 - PAN SUB-ASSY, OIL 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) ** Refer Fig ** Refer Fig ** Refer Fig 15301 - GAGE SUB-ASSY, OIL LEVEL ** Std Part ** Std Part ** Std Part
