TOYOTA DYNA XZU720L-TKFRLV3 / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

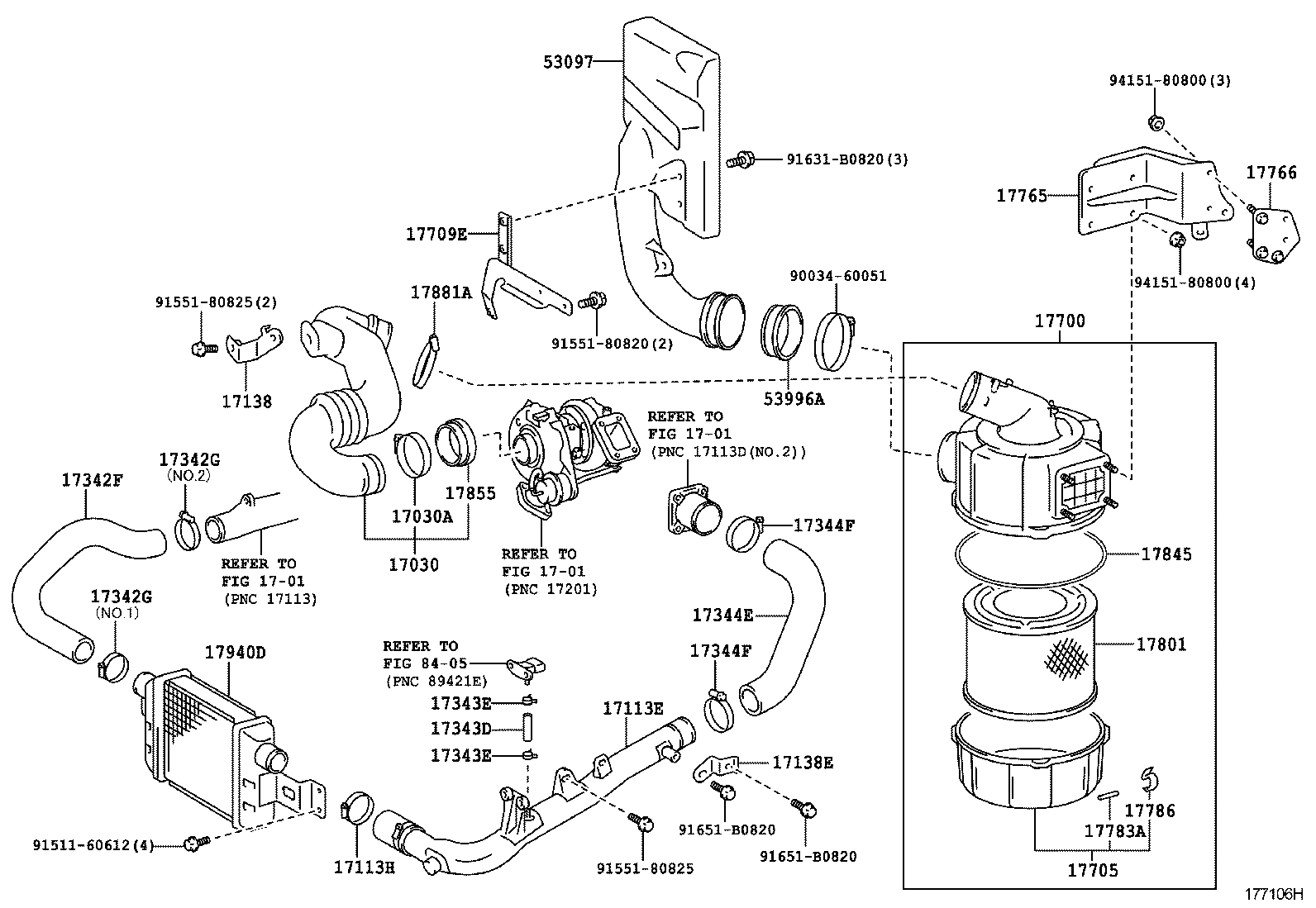

AIR CLEANER

(1107- )N04C..XZU710,720..6F,6FC..GCC

DYNA | AIR CLEANER ** Refer Fig ** Refer Fig ** Refer Fig 17030 - HOSE ASSY, AIR 17030A - CLAMP, HOSE 17113E - PIPE, INTAKE, NO.1 17113H - CLAMP, INTAKE PIPE 17138 - STAY, INTAKE PIPE OR HOSE 17138E - STAY, INTAKE PIPE 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) 17343D - HOSE, AIR, NO.3 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17344E - HOSE, AIR, NO.4 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17709E - BRACKET, AIR CLEANER INLET, NO.2 17765 - STAY, AIR CLEANER, NO.1 17766 - STAY, AIR CLEANER, NO.2 17783A - RETAINER, AIR CLEANER INLET 17786 - CLAMP, AIR CLEANER 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17845 - GASKET, AIR CLEANER CAP 17855 - GASKET, AIR INLET DUCT, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17940D - INTERCOOLER ASSY 53097 - INLET SUB-ASSY 53996A - PACKING, AIR CLEANER INLET PIPE ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
