TOYOTA ETIOS LIVA CROSS NGK15R-AEMRKX / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

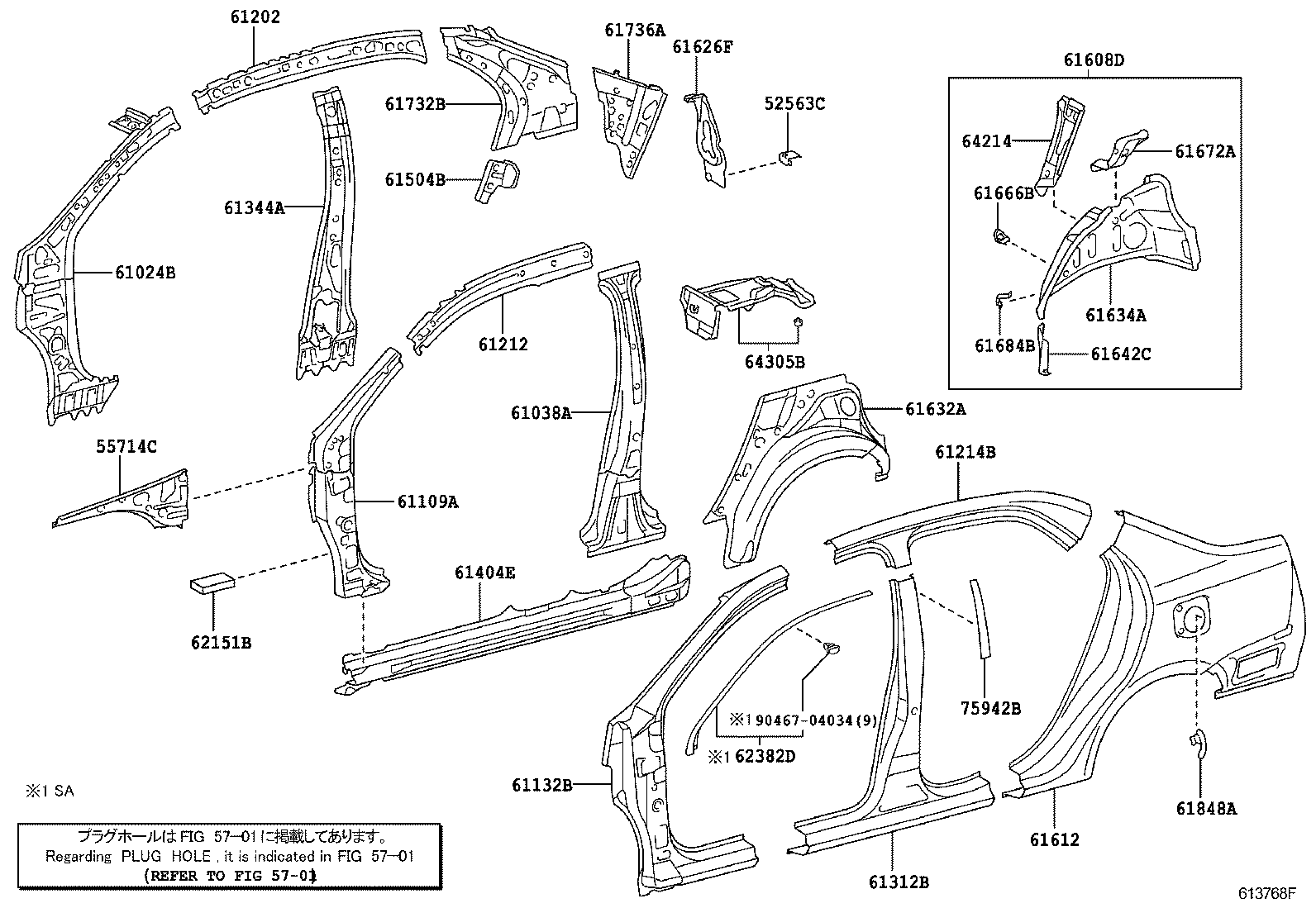

SIDE MEMBER

LH ILLUST NO. 2 OF 2(1012- )4D

ETIOS LIVA CROSS | SIDE MEMBER 52563C - RETAINER, REAR BUMPER, UPPER SIDE, LH 55714C - PANEL, COWL TOP SIDE, LH ** Refer Fig 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH 61132B - PILLAR, FRONT BODY, OUTER LH 61202 - RAIL SUB-ASSY, ROOF SIDE, LH 61212 - RAIL, ROOF SIDE, OUTER LH 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH 61312B - PILLAR, CENTER BODY, OUTER LH 61344A - PILLAR, CENTER BODY, INNER LH 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH 61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH 61612 - PANEL, QUARTER, LH 61626F - EXTENSION, QUARTER PANEL, UPPER LH 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH 61666B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH 61672A - SUPPORT, REAR SUSPENSION SPRING, LH 61684B - BRACKET, REAR WHEEL OPENING, NO.1 LH 61732B - PANEL, ROOF SIDE, INNER LH 61736A - PANEL, ROOF SIDE, INNER REAR LH 61848A - RETAINER, QUARTER PANEL, LH 62151B - PAD, COWL SIDE SILENCER 62382D - WEATHERSTRIP, ROOF SIDE RAIL, LH 64214 - EXTENSION, PACKAGE TRAY STRAINER, LH 64305B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH 75942B - STRIPE, CENTER PILLAR, LH ** Std Part
