TOYOTA ETIOS LIVA CROSS NGK15R-AEMRKX / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

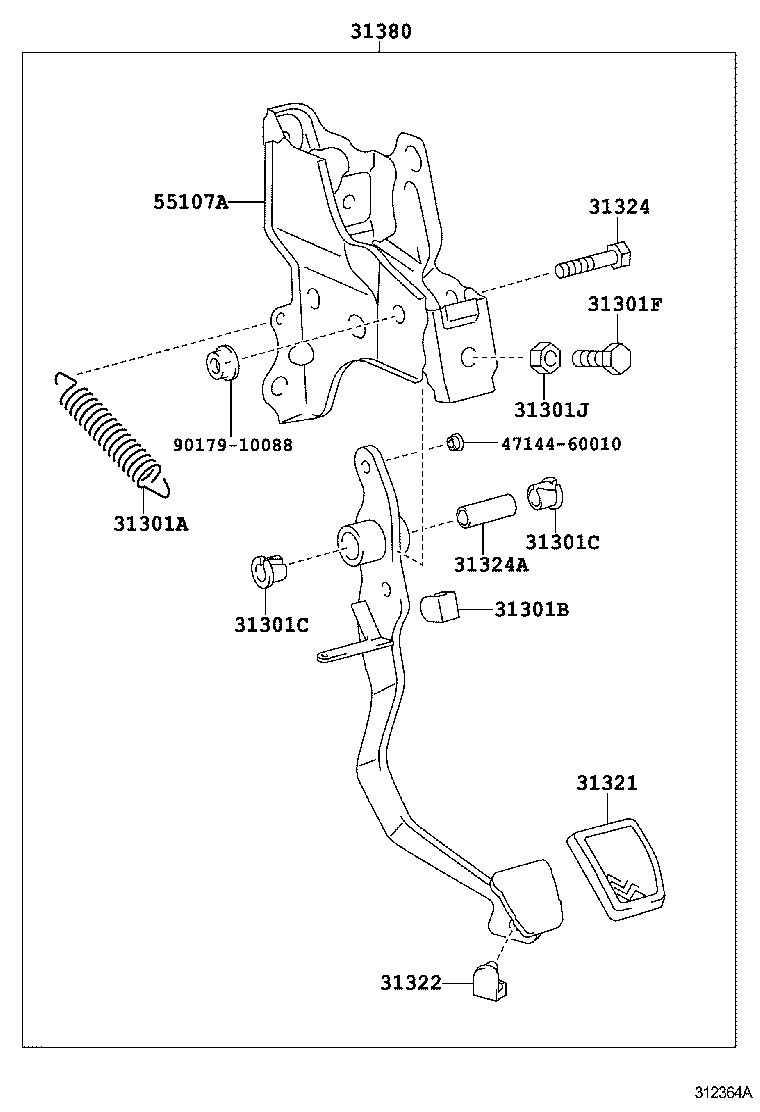

ILLUST NO. 1 OF 2(1012- )NGK1#..IND,SA

 ETIOS LIVA CROSS |  CLUTCH PEDAL FLEXIBLE HOSE 31301A - SPRING(FOR CLUTCH PEDAL) 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301C - BUSH(FOR CLUTCH PEDAL) 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) 31301J - NUT(FOR CLUTCH PEDAL STOPPER) 31321 - PAD, CLUTCH PEDAL 31322 - STOPPER, CLUTCH PEDAL 31324 - SHAFT, CLUTCH PEDAL 31324A - COLLAR, CLUTCH PEDAL SHAFT 31380 - SUPPORT ASSY, PEDAL  ** Std Part 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL  ** Std Part
