TOYOTA ETIOS LIVA CROSS NUK10R-AHMUXX / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

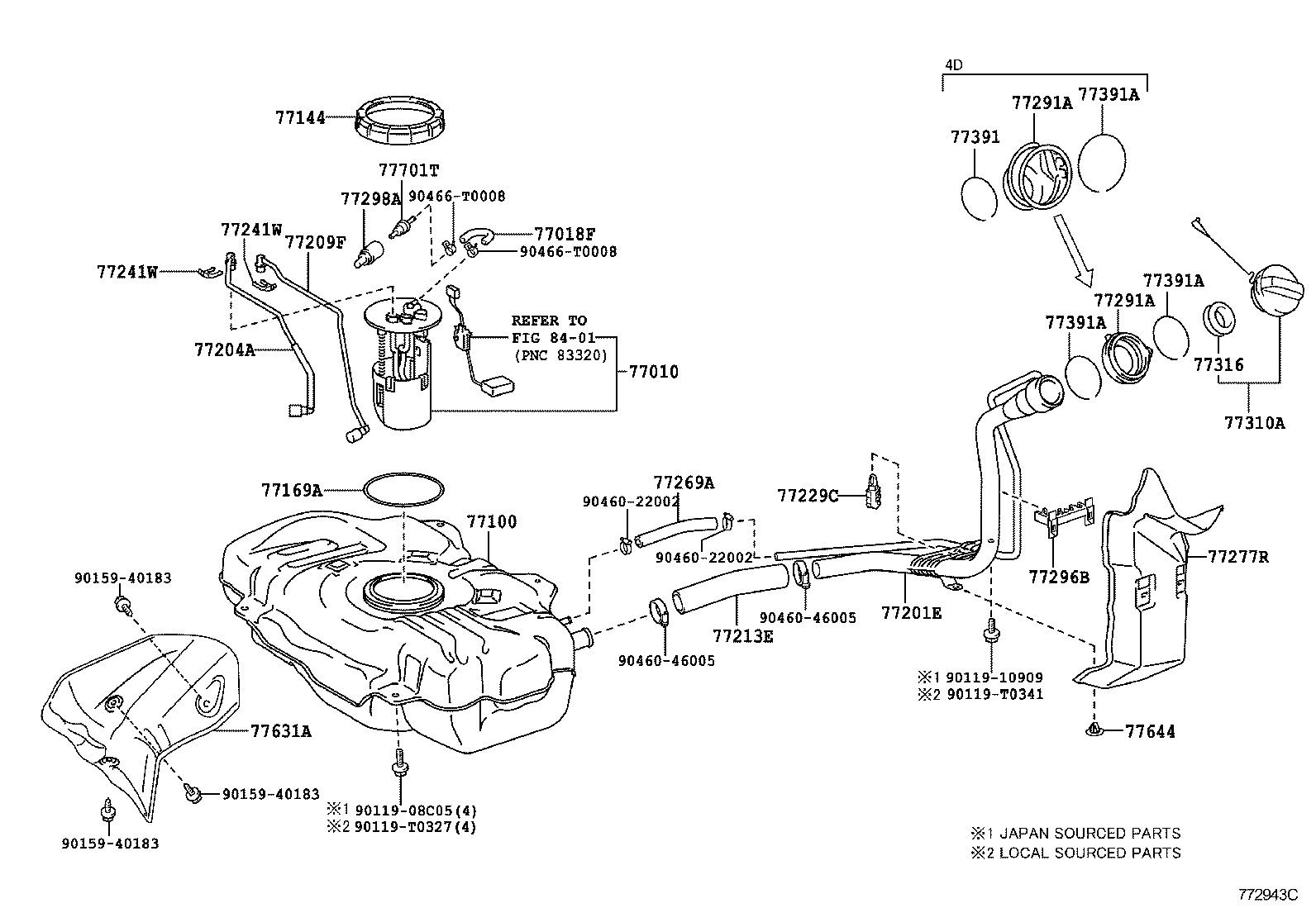

FUEL TANK ILLUST NO. 1 OF 3(1108- )NUK1#

 ETIOS LIVA CROSS |  FUEL TANK TUBE 77010 - TUBE ASSY, FUEL TANK VENT 77018F - HOSE, FUEL TANK EVAPORATION VENT 77100 - TANK ASSY, FUEL 77144 - RETAINER, FUEL PUMP GAUGE 77169A - GASKET, FUEL SUCTION TUBE SET 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77204A - TUBE, FUEL TANK RETURN 77209F - TUBE SUB-ASSY, FUEL TANK MAIN 77213E - HOSE, FUEL TANK TO FILLER PIPE 77229C - CLAMP, BREATHER TUBE 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77269A - HOSE, FUEL TANK BREATHER 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77291A - SHIELD, FUEL TANK FILLER PIPE 77291A - SHIELD, FUEL TANK FILLER PIPE 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 77298A - CLAMP, FUEL TUBE, NO.4 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77631A - PROTECTOR, FUEL TANK, LOWER CENTER 77644 - BOLT, FUEL TANK 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
