TOYOTA ETIOS NGK11L-AHMNGG / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

(1209- )1NRFE,2NRFE..BZ

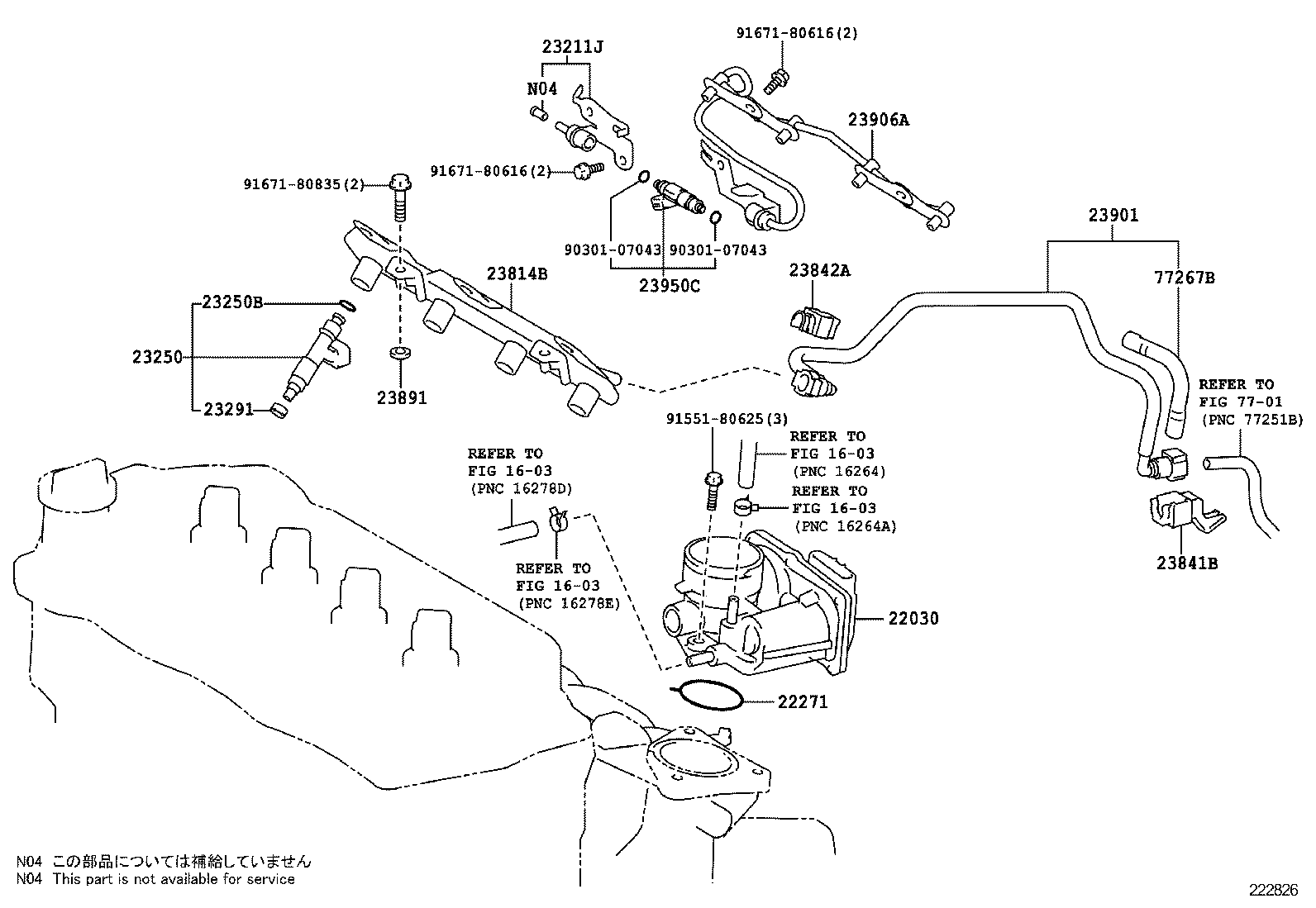

ETIOS | FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 22030 - BODY ASSY, THROTTLE W/MOTOR 22271 - GASKET, THROTTLE BODY 23211J - BRACKET, SOLENOID VALVE 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23291 - INSULATOR, INJECTOR VIBRATION 23814B - PIPE, FUEL DELIVERY 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) 23891 - SPACER, FUEL DELIVERY 23901 - TUBE SUB-ASSY, FUEL 23906A - HOSE SUB-ASSY, FUEL 23950C - VALVE ASSY, SOLENOID ** Refer Fig 77267B - PROTECTOR, FUEL TUBE, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
