TOYOTA FORTUNER KUN60R-EKMSH / TOOL-ENGINE-FUEL / EXHAUST GAS RECIRCULATION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

EXHAUST GAS RECIRCULATION SYSTEM

(1107-1208)2KDFTV..KUN60..IDN,PHL ; (1109-1210)2

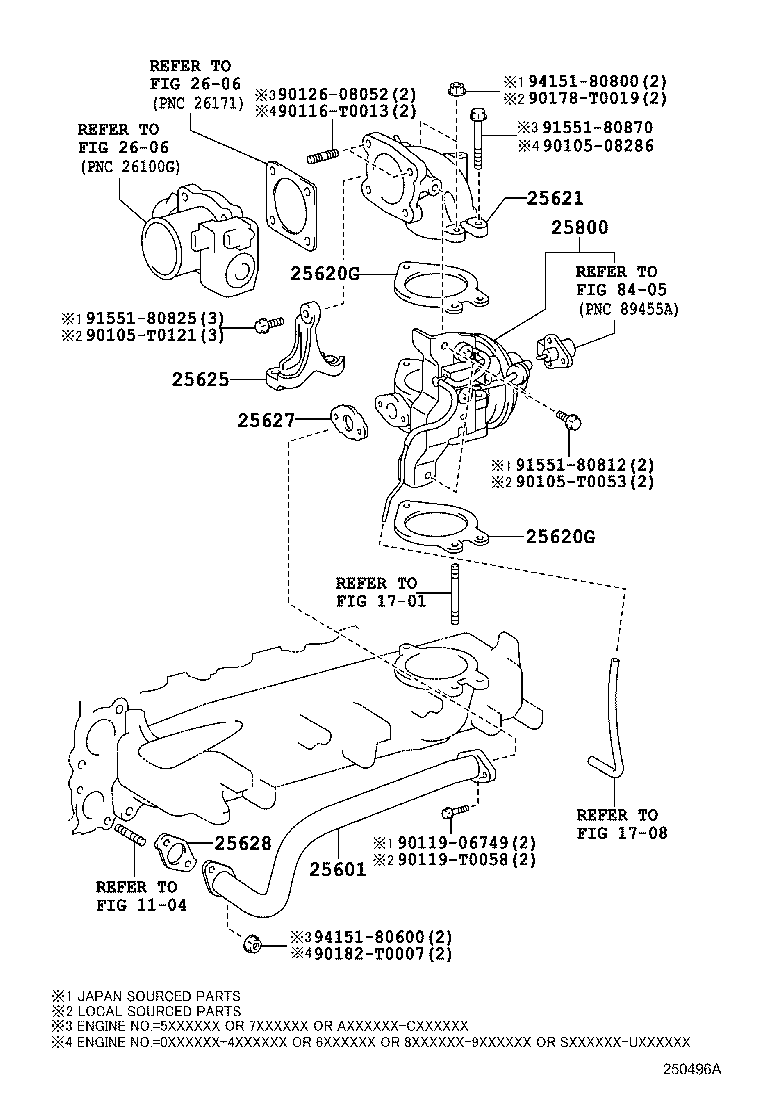

FORTUNER | EXHAUST GAS RECIRCULATION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig 25601 - PIPE SUB-ASSY, EGR, NO.1 25620G - GASKET, DIESEL THROTTLE 25620G - GASKET, DIESEL THROTTLE 25621 - CONNECTOR, INTAKE AIR(FOR GASKET) 25625 - BRACKET, EGR VALVE 25627 - GASKET, EGR VALVE 25628 - GASKET, EGR INLET 25800 - VALVE ASSY, ELECTRIC EGR CONTROL ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
