TOYOTA FORTUNER TGN61R-EKPSKD / POWERTRAIN-CHASSIS / REAR AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

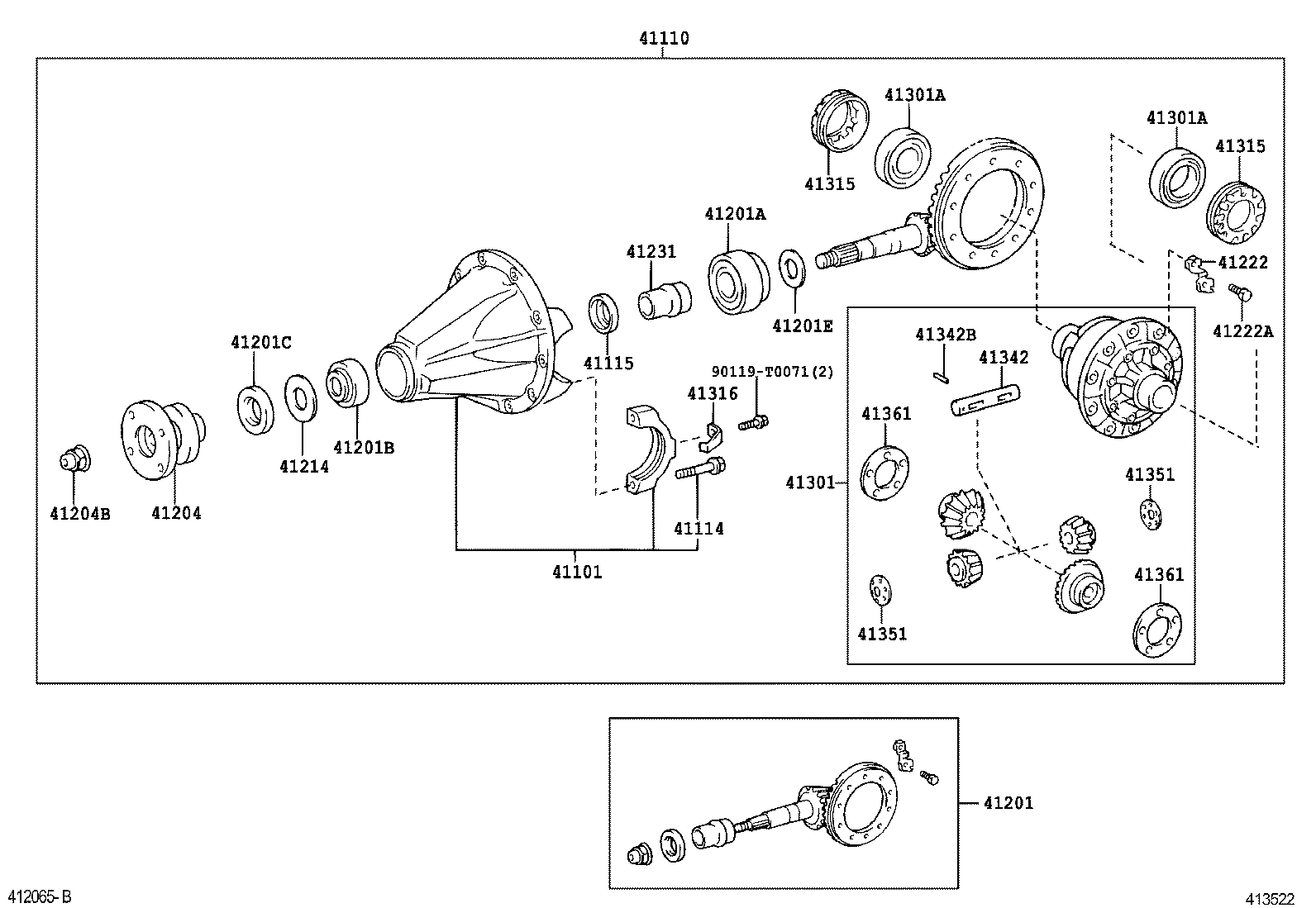

REAR AXLE HOUSING DIFFERENTIAL

ILLUST NO. 1 OF 2(1107- )KUN51..LHD..SUVW..GEN,PHL ; (1107-

FORTUNER | REAR AXLE HOUSING DIFFERENTIAL 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR 41110 - CARRIER ASSY, DIFFERENTIAL, REAR 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP 41115 - RING, DIFFERENTIAL OIL STORAGE 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR 41201A - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR) 41201B - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT) 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR 41204B - NUT (FOR REAR DRIVE PINION) 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT 41342 - SHAFT, REAR DIFFERENTIAL PINION 41342B - PIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT) 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 ** Std Part
