TOYOTA HIGHLANDER CHINA ASU40L-BRTNKC / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

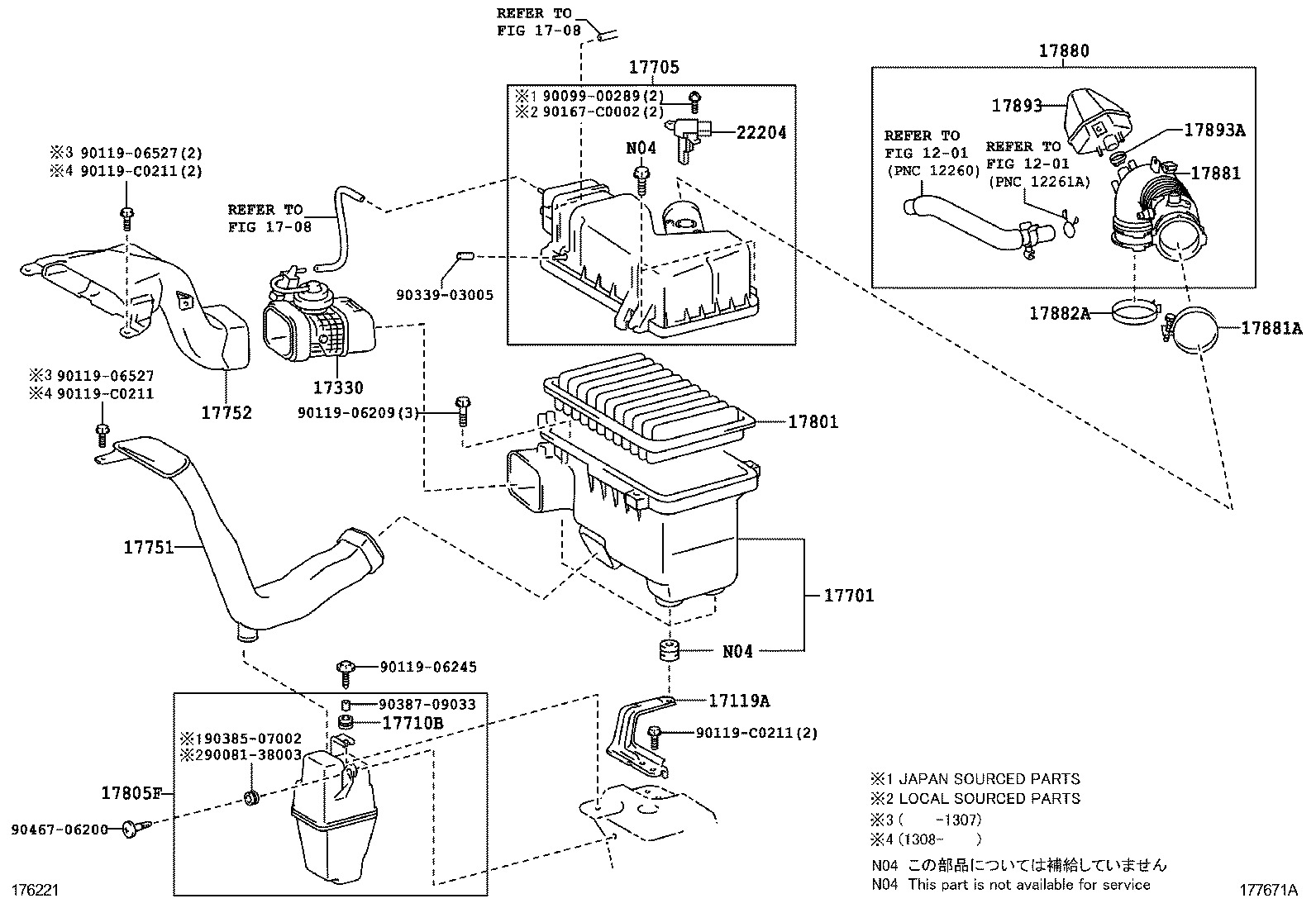

AIR CLEANER

(1205- )1ARFE

HIGHLANDER CHINA | AIR CLEANER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 17119A - BRACKET, AIR CLEANER 17330 - VALVE ASSY, INTAKE AIR CONTROL, NO.3 17701 - CASE SUB-ASSY, AIR CLEANER 17705 - CAP SUB-ASSY, AIR CLEANER 17710B - GROMMET 17751 - INLET, AIR CLEANER, NO.1 17752 - INLET, AIR CLEANER, NO.2 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17805F - RESONATOR SUB-ASSY, INTAKE AIR 17880 - HOSE ASSY, AIR CLEANER 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17893 - RESONATOR, INTAKE AIR 17893A - CLAMP, HOSE 22204 - METER SUB-ASSY, INTAKE AIR FLOW ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
