TOYOTA RAV4 CHINA ASA44L-ANTMKC / BODY / REAR DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

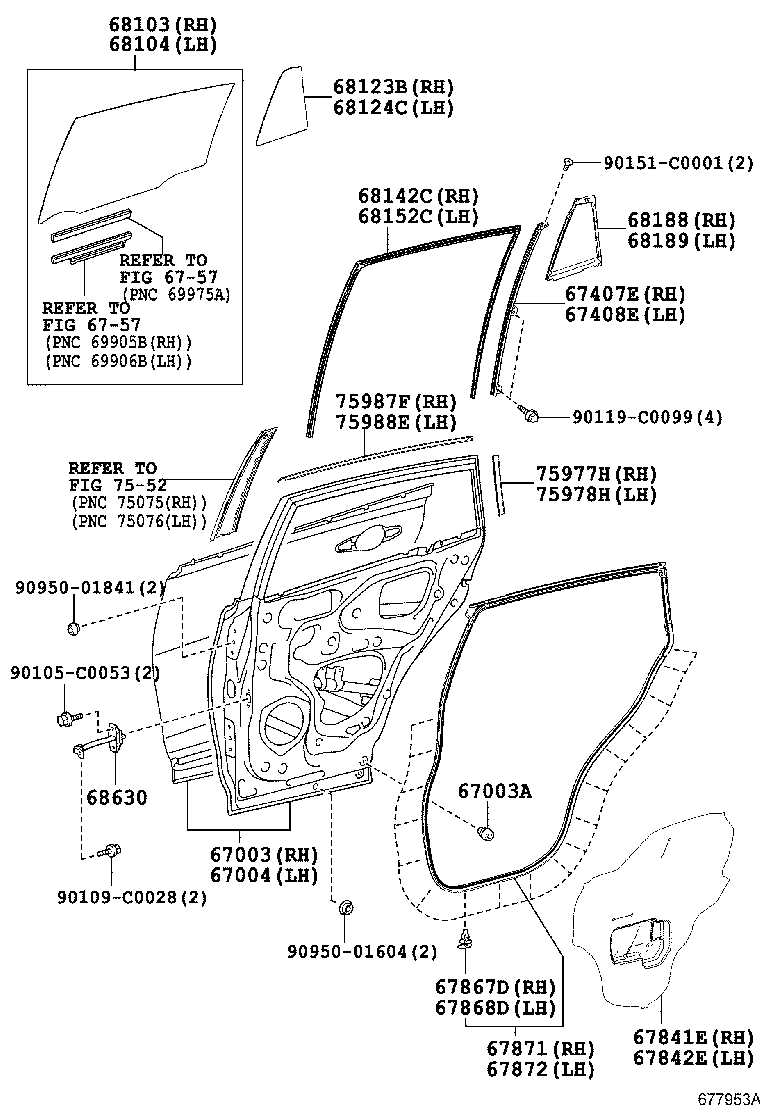

REAR DOOR PANEL GLASS

DOOR PANEL ILLUST NO. 1 OF 2(1308- )

RAV4 CHINA | REAR DOOR PANEL GLASS 67003 - PANEL SUB-ASSY, REAR DOOR, RH 67003A - PLUG, HOLE(FOR REAR DOOR PANEL) 67004 - PANEL SUB-ASSY, REAR DOOR, LH 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH ** Refer Fig ** Refer Fig 67841E - COVER, REAR DOOR SERVICE HOLE, RH 67842E - COVER, REAR DOOR SERVICE HOLE, LH 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH 67871 - WEATHERSTRIP, REAR DOOR, RH 67872 - WEATHERSTRIP, REAR DOOR, LH 68103 - GLASS SUB-ASSY, REAR DOOR, RH 68104 - GLASS SUB-ASSY, REAR DOOR, LH 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH 68124C - GLASS, REAR DOOR QUARTER WINDOW, LH 68142C - RUN, REAR DOOR GLASS, RH 68152C - RUN, REAR DOOR GLASS, LH 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH 68630 - CHECK ASSY, REAR DOOR ** Refer Fig 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH 75987F - STRIPE, REAR DOOR, OUTSIDE, RH 75988E - STRIPE, REAR DOOR, OUTSIDE LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
