TOYOTA RAV4 CHINA ZSA44L-ANXMKC / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

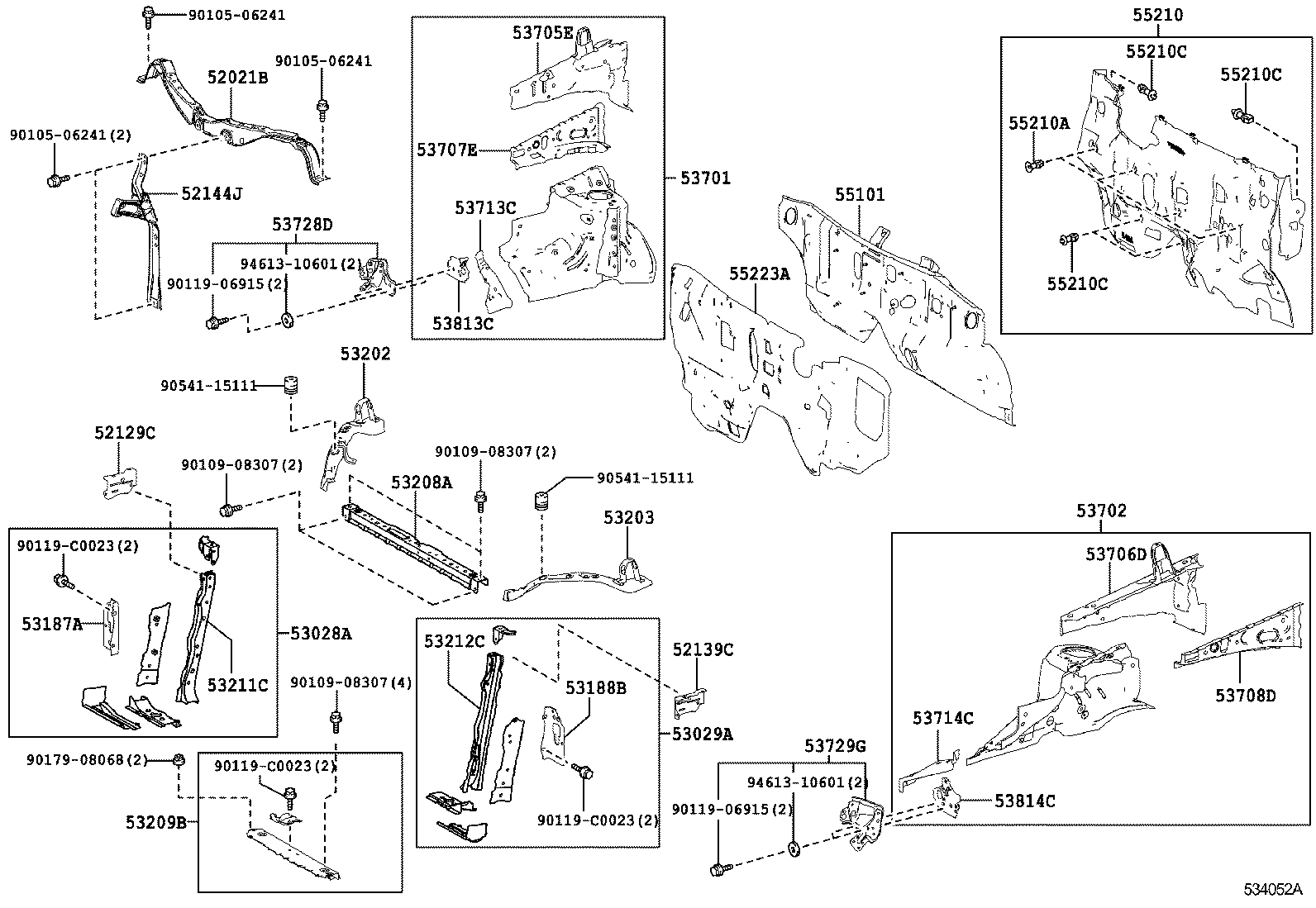

FRONT FENDER APRON DASH PANEL

ILLUST NO. 1 OF 2(1308- )

RAV4 CHINA | FRONT FENDER APRON DASH PANEL 52021B - REINFORCEMENT SUB-ASSY, FRONT BUMPER 52129C - ARM, FRONT BUMPER, UPPER NO.2 RH 52139C - ARM, FRONT BUMPER, UPPER NO.2 LH 52144J - STAY, FRONT BUMPER, CENTER 53028A - SUPPORT SUB-ASSY, RADIATOR, LOWER RH 53029A - SUPPORT SUB-ASSY, RADIATOR, LOWER LH 53187A - STAY, RADIATOR SUPPORT, RH 53188B - STAY, RADIATOR SUPPORT, LH 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT 53211C - SUPPORT, RADIATOR, RH 53212C - SUPPORT, RADIATOR, LH 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH 53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH 53707E - APRON SUB-ASSY, FENDER SIDE, RH 53708D - APRON SUB-ASSY, FENDER SIDE, LH 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH 53728D - BRACKET, FENDER APRON, RH 53729G - BRACKET, FENDER APRON, LH 53813C - EXTENSION, FRONT FENDER, RH 53814C - EXTENSION, FRONT FENDER, LH 55101 - PANEL SUB-ASSY, DASH 55210 - INSULATOR ASSY, DASH PANEL 55210A - CLIP 55210C - CLIP 55210C - CLIP 55210C - CLIP 55223A - INSULATOR, DASH PANEL, OUTER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
