TOYOTA RAV4 CHINA ZSA44L-ANXMKC / POWERTRAIN-CHASSIS / TRANSAXLE ASSY CVT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

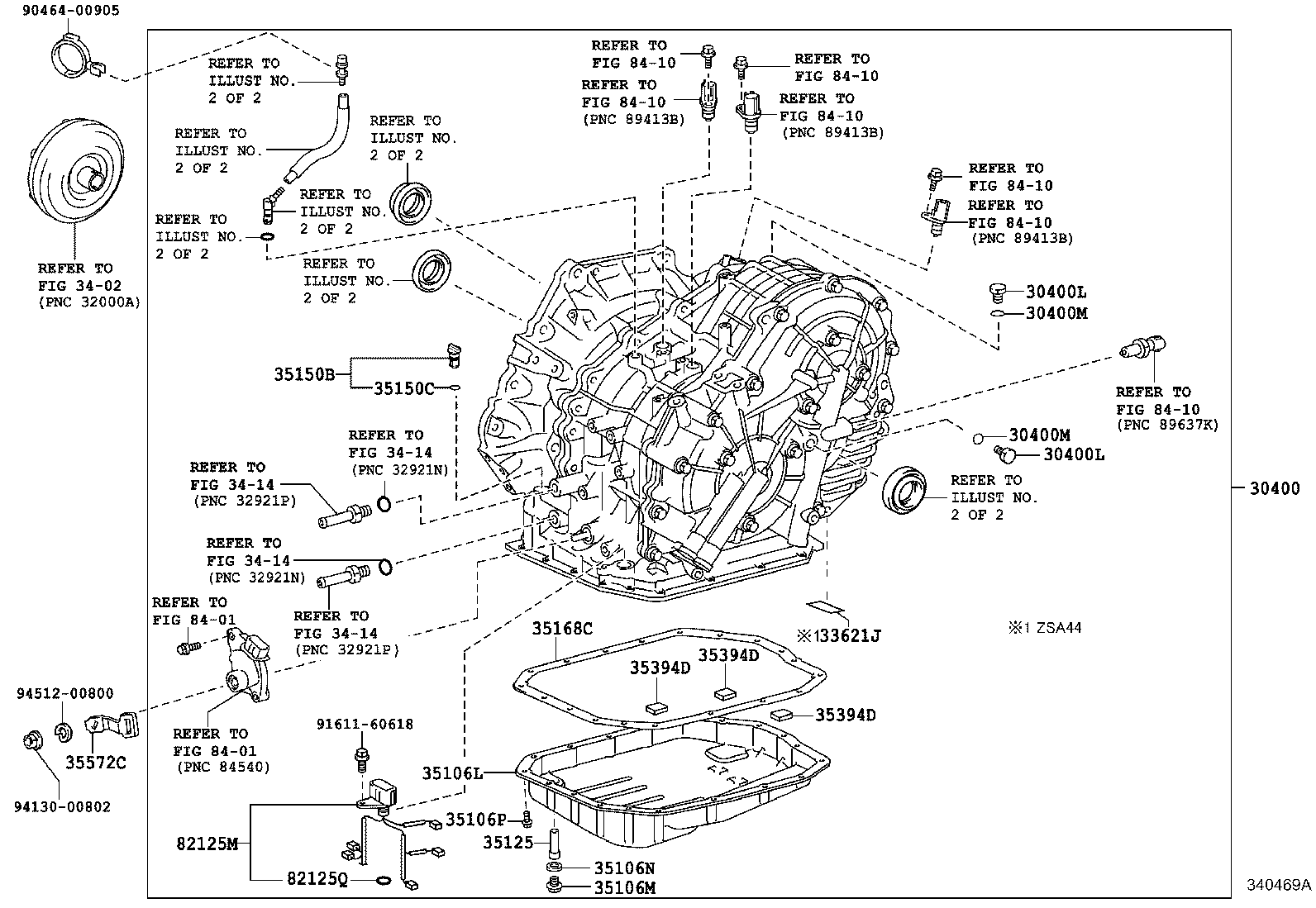

TRANSAXLE ASSY CVT

K111,K111F ILLUST NO. 1 OF 2(1308- )ZSA4#

RAV4 CHINA | TRANSAXLE ASSY CVT 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE 30400L - PLUG , FILLER(CVT) 30400L - PLUG , FILLER(CVT) 30400M - GASKET , FILLER PLUG(CVT) 30400M - GASKET , FILLER PLUG(CVT) 33621J - LABEL, TRANSAXLE OIL INFORMATION ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) 35106M - PLUG SUB-ASSY, DRAIN(CVT) 35106N - GASKET, DRAIN PLUG(CVT) 35106P - BOLT(FOR TRANSAXLE OIL PAN) 35125 - TUBE, TRANSMISSION OIL FILLER, NO.1 35150B - PLUG ASSY, TRANSMISSION CASE 35150C - RING, O (FOR TRANSMISSION CASE PLUG) 35168C - GASKET, TRANSAXLE OIL PAN(CVT) 35394D - MAGNET, OIL CLEANER(CVT) 35394D - MAGNET, OIL CLEANER(CVT) 35394D - MAGNET, OIL CLEANER(CVT) 35572C - LEVER, TRANSMISSION CONTROL SHAFT 82125M - WIRE, TRANSMISSION 82125Q - RING, O(FOR TRANSMISSION WIRE) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
