TOYOTA RAV4 CHINA ZSA44L-ANXMKC / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

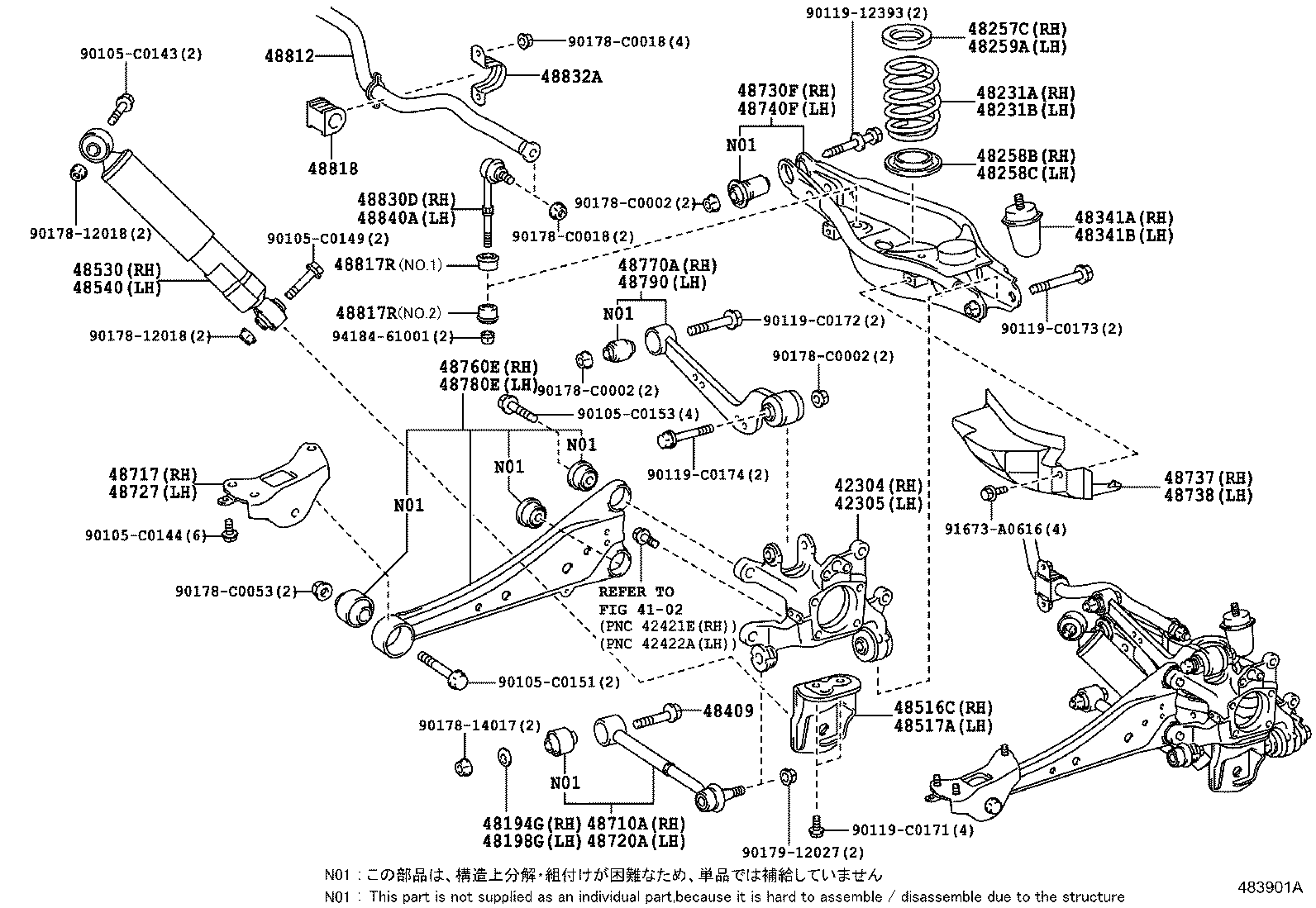

REAR SPRING SHOCK ABSORBER

(1308- )

RAV4 CHINA | REAR SPRING SHOCK ABSORBER ** Refer Fig 42304 - CARRIER SUB-ASSY, REAR AXLE, RH 42305 - CARRIER SUB-ASSY, REAR AXLE, LH 48194G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH 48198G - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH 48231A - SPRING, COIL, REAR RH 48231B - SPRING, COIL, REAR LH 48257C - INSULATOR, REAR COIL SPRING, UPPER RH 48258B - INSULATOR, REAR COIL SPRING, LOWER RH 48258C - INSULATOR, REAR COIL SPRING, LOWER LH 48259A - INSULATOR, REAR COIL SPRING, UPPER LH 48341A - BUMPER, REAR SPRING, NO.1 RH 48341B - BUMPER, REAR SPRING, NO.1 LH 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST 48516C - BRACKET, REAR SHOCK ABSORBER, NO.1 RH 48517A - BRACKET, REAR SHOCK ABSORBER, NO.1 LH 48530 - ABSORBER ASSY, SHOCK, REAR RH 48540 - ABSORBER ASSY, SHOCK, REAR LH 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH 48717 - BRACKET, REAR SUSPENSION ARM, RH 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH 48727 - BRACKET, REAR SUSPENSION ARM, LH 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH 48737 - COVER, REAR SUSPENSION ARM, RH 48738 - COVER, REAR SUSPENSION ARM, LH 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH 48760E - ARM ASSY, TRAILING, REAR RH 48770A - ARM ASSY, UPPER CONTROL, REAR RH 48780E - ARM ASSY, TRAILING, REAR LH 48790 - ARM ASSY, UPPER CONTROL, REAR LH 48812 - BAR, STABILIZER, REAR 48817R - CUSHION, STABILIZER(FOR REAR) 48817R - CUSHION, STABILIZER(FOR REAR) 48818 - BUSH, STABILIZER, REAR 48830D - LINK ASSY, REAR STABILIZER, RH 48832A - BRACKET, REAR STABILIZER BAR, NO.1 48840A - LINK ASSY, REAR STABILIZER, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
