TOYOTA RAV4 CHINA ZSA44L-ANXMKC / TOOL-ENGINE-FUEL / ALTERNATOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ALTERNATOR

12V 100A (1308- )6ZRFE

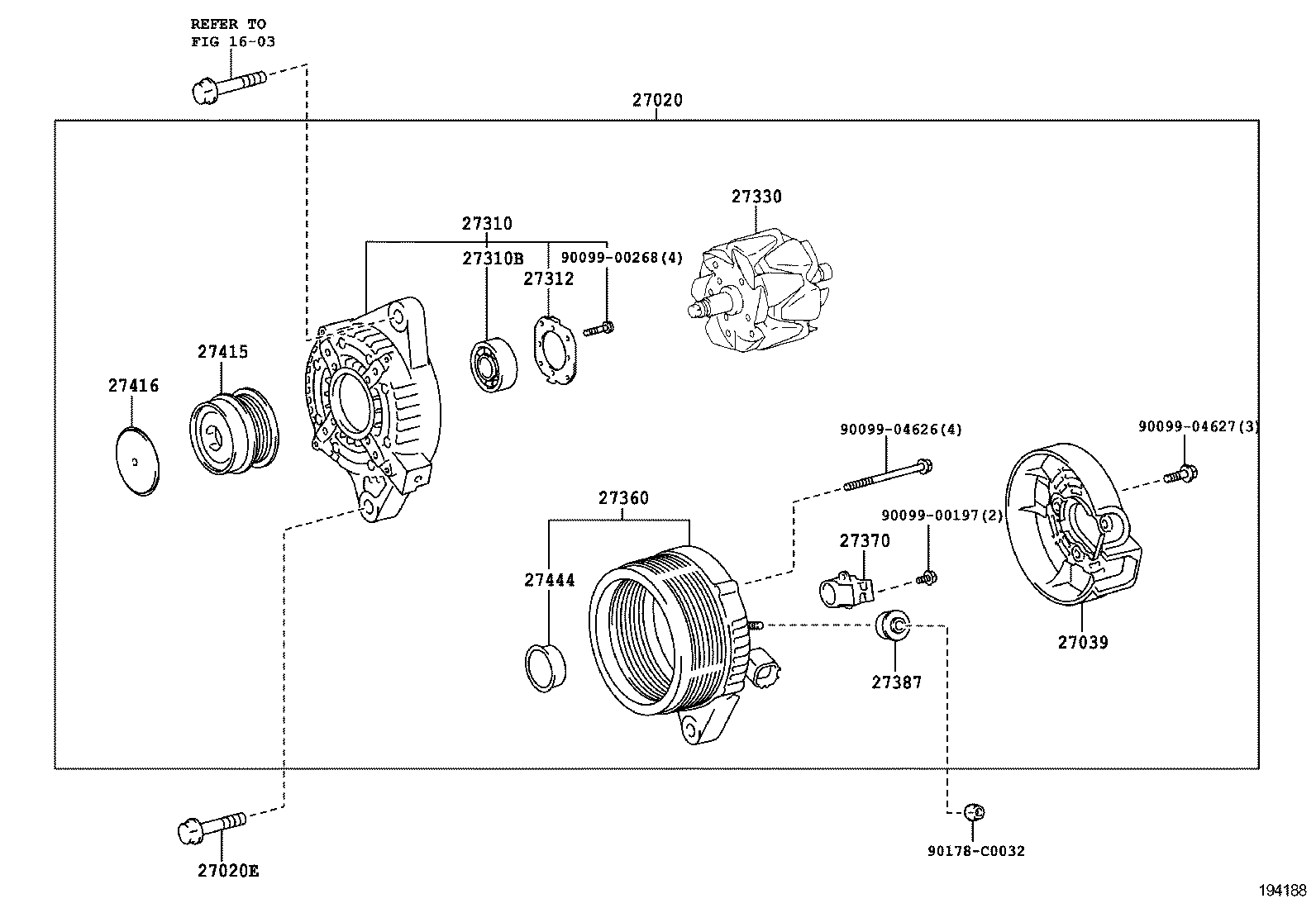

RAV4 CHINA | ALTERNATOR ** Refer Fig 27020 - ALTERNATOR ASSY 27020E - BOLT(FOR ALTERNATOR) 27039 - COVER, ALTERNATOR REAR END 27310 - FRAME ASSY, DRIVE END, ALTERNATOR 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) 27312 - PLATE, RETAINER 27330 - ROTOR ASSY, ALTERNATOR 27360 - COIL ASSY, ALTERNATOR 27370 - HOLDER ASSY, ALTERNATOR BRUSH 27387 - INSULATOR, TERMINAL 27415 - PULLEY, ALTERNATOR W/CLUTCH 27416 - CAP, ALTERNATOR PULLEY 27444 - PACKING, ALTERNATOR BEARING COVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
