TOYOTA RAV4 CHINA ZSA44L-ANXMKC / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

(1308- )6ZRFE

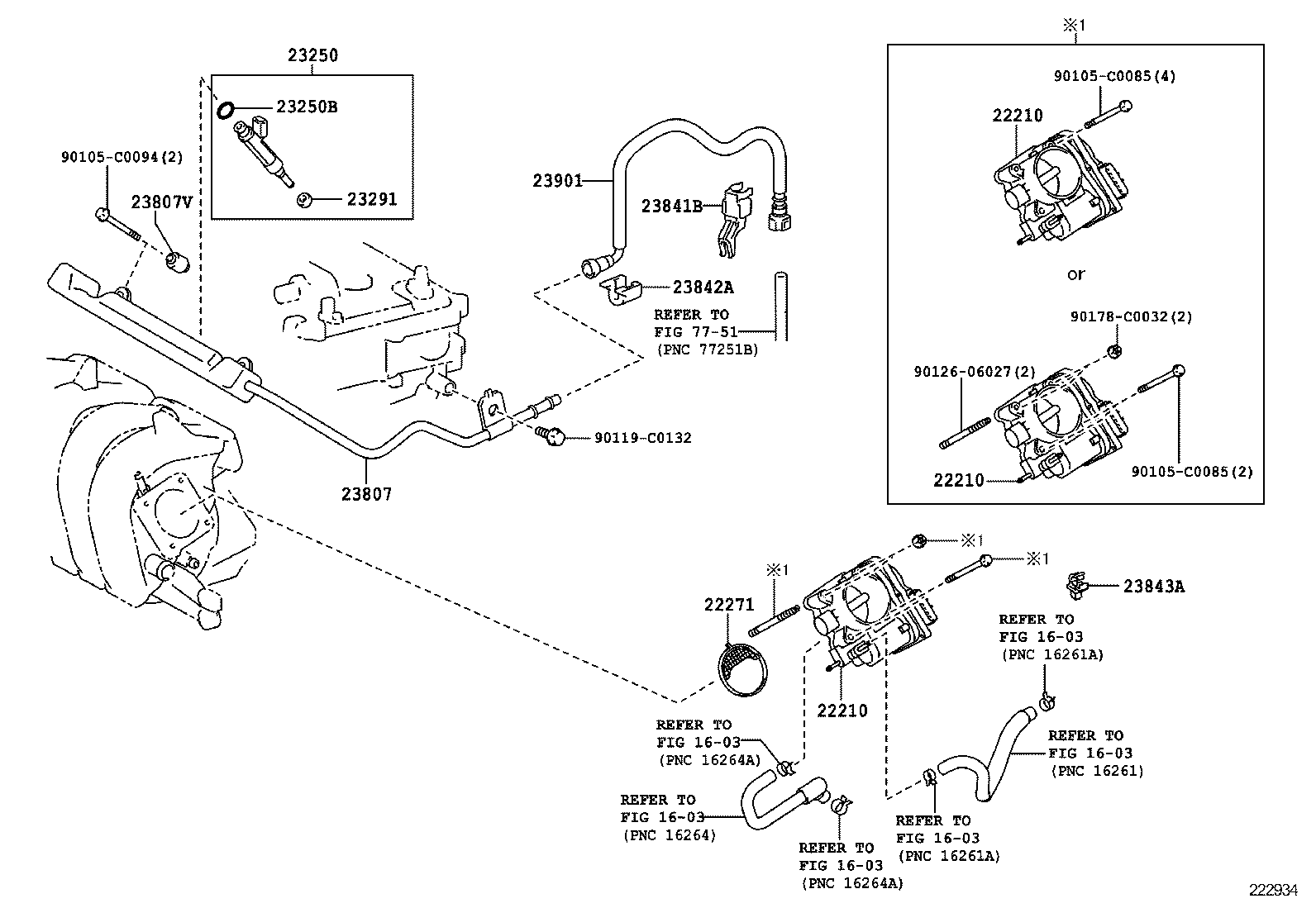

RAV4 CHINA | FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 22210 - BODY ASSY, THROTTLE 22210 - BODY ASSY, THROTTLE 22210 - BODY ASSY, THROTTLE 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23291 - INSULATOR, INJECTOR VIBRATION 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) 23843A - CLAMP,FUEL PIPE, NO.3(FOR EFI) 23901 - TUBE SUB-ASSY, FUEL ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
