TOYOTA RAV4 ASA44L-ANFXKV / BODY / COWL PANEL WINDSHIELD GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

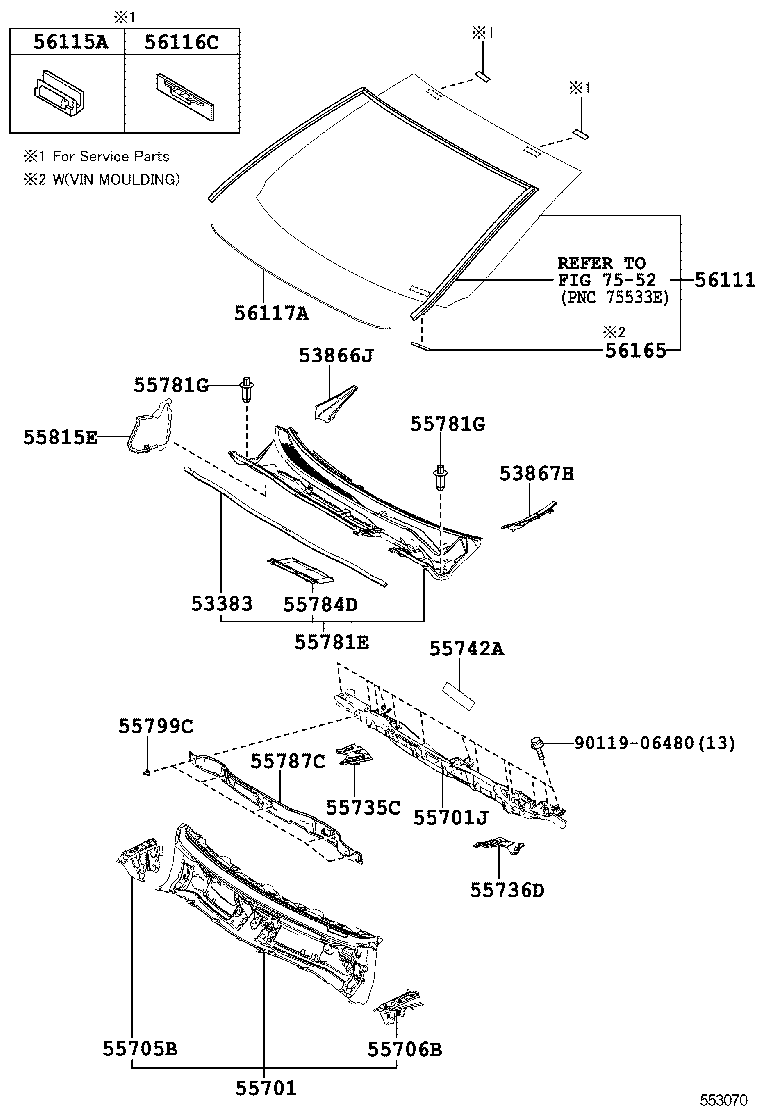

COWL PANEL WINDSHIELD GLASS

(1212- )LHD

 RAV4 |  COWL PANEL WINDSHIELD GLASS 53383 - SEAL, HOOD TO COWL TOP 53866J - SEAL, FRONT FENDER TO COWL SIDE, RH 53867H - SEAL, FRONT FENDER TO COWL SIDE, LH 55701 - PANEL SUB-ASSY, COWL 55701J - PANEL SUB-ASSY, COWL TOP, OUTER 55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH 55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH 55735C - REINFORCEMENT, COWL BODY MOUNTING, RH 55736D - REINFORCEMENT, COWL BODY MOUNTING, LH 55742A - SHEET, COWL TOP INSULATOR 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR 55781G - CLIP, COWL TOP VENTILATOR LOUVER 55781G - CLIP, COWL TOP VENTILATOR LOUVER 55784D - BRACKET, COWL TOP VENTILATOR LOUVER, LH 55787C - INSULATOR, COWL TOP PANEL, NO.1 55799C - CLIP, COWL TOP VENTILATOR LOUVER 55815E - SEAL, FRONT VENTILATOR, NO.1 56111 - GLASS, WINDSHIELD 56115A - STOPPER, WINDSHIELD GLASS, NO.1 56116C - STOPPER, WINDSHIELD GLASS, NO.2 56117A - DAM, WINDOW GLASS ADHESIVE 56165 - COVER, FRONT WINDOW INNER MOULDING, LH ** Refer Fig  ** Std Part
