TOYOTA RAV4 ASA44L-ANFXKV / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

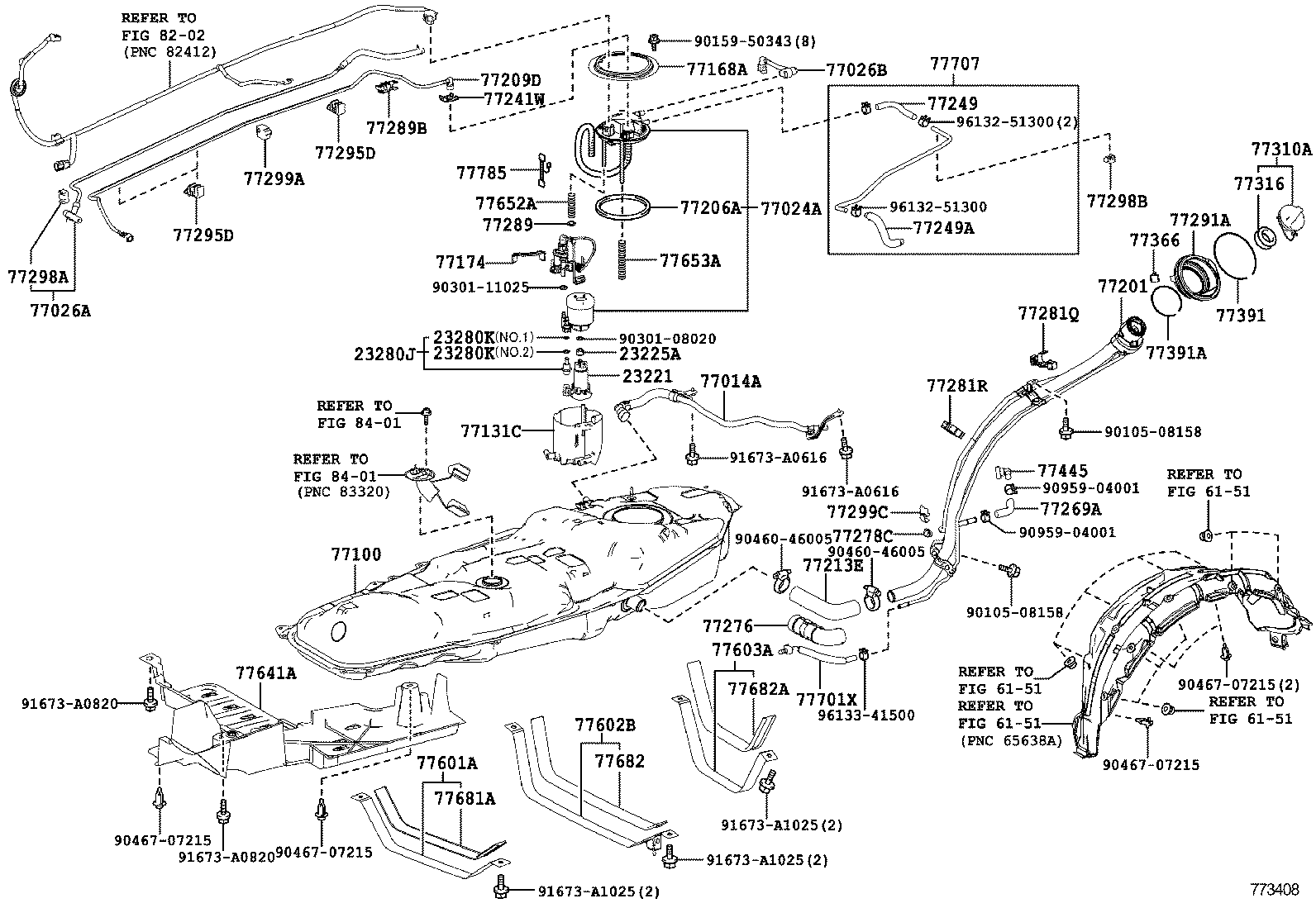

FUEL TANK ILLUST NO. 1 OF 3(1212- )LHD

RAV4 | FUEL TANK TUBE 23221 - PUMP, FUEL 23225A - SPACER, FUEL PUMP 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 77024A - PLATE SUB-ASSY, FUEL SUCTION 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 77100 - TANK ASSY, FUEL 77131C - SUB-TANK, FUEL, NO.1 77168A - PLATE, FUEL TANK VENT TUBE SET 77174 - SUPPORT, FUEL SUCTION, NO.1 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213E - HOSE, FUEL TANK TO FILLER PIPE 77241W - CLIP, TUBE JOINT 77249 - HOSE, FUEL EMISSION 77249A - HOSE, FUEL EMISSION 77269A - HOSE, FUEL TANK BREATHER 77276 - PROTECTOR, FUEL HOSE 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 77281Q - CLAMP, FUEL FILLER, NO.1 77281R - CLAMP, FUEL FILLER PIPE, NO.2 77289 - HOLDER, FUEL TANK PIPE SETTING 77289B - CLAMP, FUEL TUBE, NO.3 77291A - SHIELD, FUEL TANK FILLER PIPE 77295D - GROMMET, FUEL TUBE 77295D - GROMMET, FUEL TUBE 77298A - CLAMP, FUEL TUBE, NO.4 77298B - CLAMP, FUEL TUBE, NO.4 77299A - CLAMP, FUEL TUBE, NO.5 77299C - CLAMP (FOR FUEL FILLER PIPE) 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77445 - CONNECTOR, FUEL TANK VENT, NO.2 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 77641A - PROTECTOR, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 77653A - CUSHION, FUEL TANK, NO.3 77681A - SEAT, FUEL TANK BAND 77682 - SEAT, FUEL TANK BAND, LH 77682A - SEAT, FUEL TANK BAND, NO.2 77701X - HOSE SUB-ASSY, CANISTER OUTLET, NO.1 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
