TOYOTA RAV4 ASA44R-ANFGKQ / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

(1212- )2ARFE

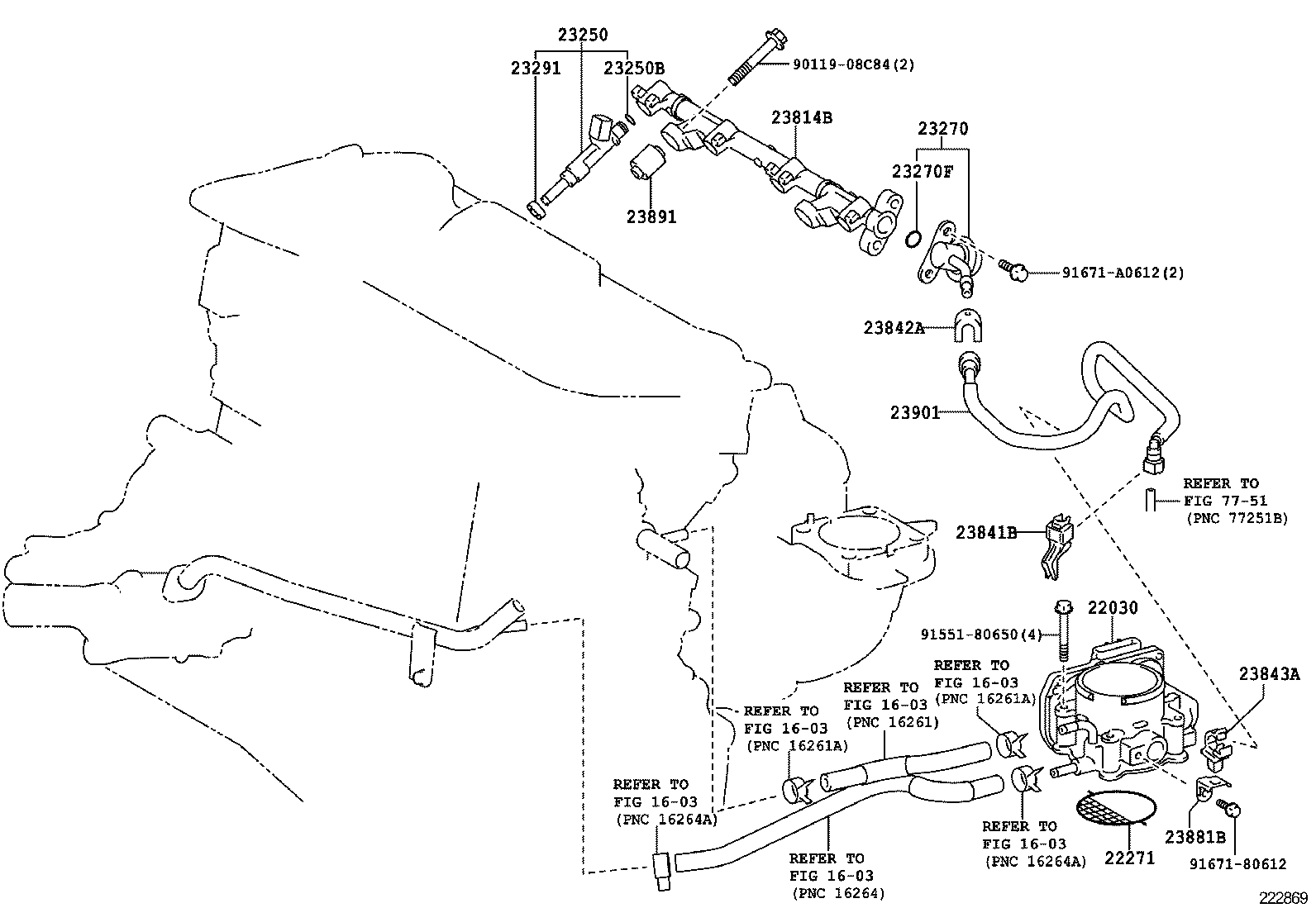

 RAV4 |  FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 22030 - BODY ASSY, THROTTLE W/MOTOR 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270F - RING, O(FOR PULSATION DAMPER) 23291 - INSULATOR, INJECTOR VIBRATION 23814B - PIPE, FUEL DELIVERY 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) 23843A - CLAMP,FUEL PIPE, NO.3(FOR EFI) 23881B - BRACKET, FUEL HOSE 23891 - SPACER, FUEL DELIVERY 23901 - TUBE SUB-ASSY, FUEL ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part
