TOYOTA RAV4 ASA44R-ANFXKQ / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

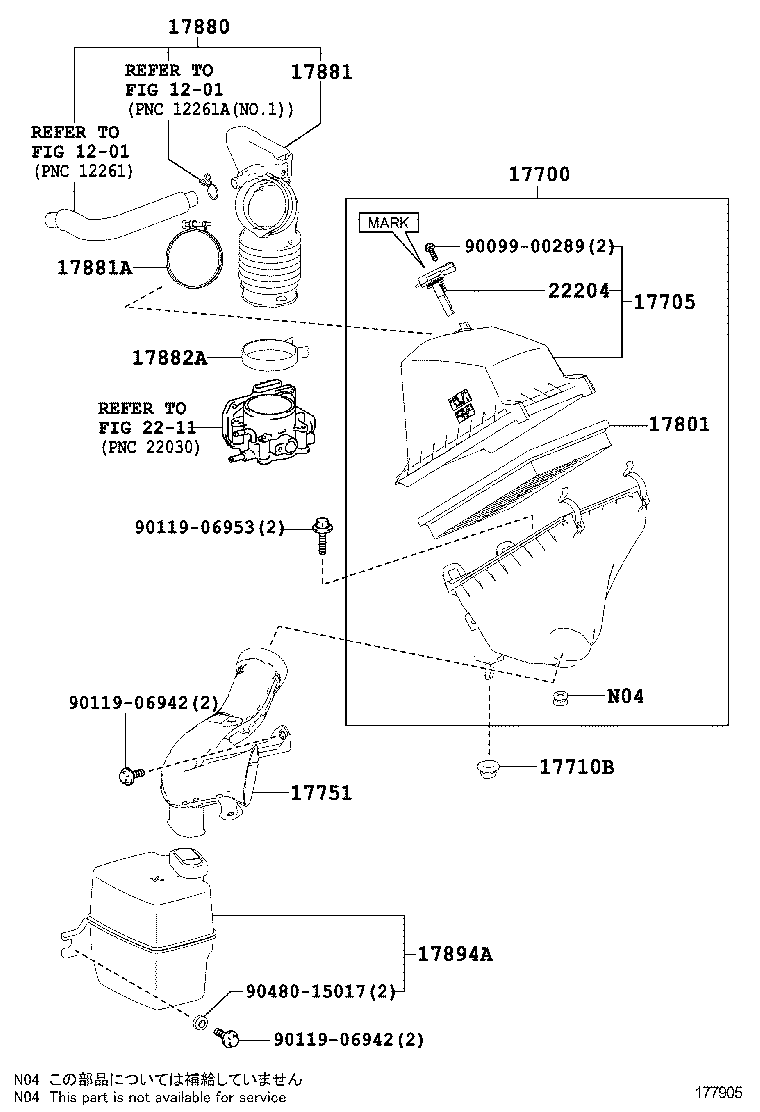

AIR CLEANER

(1212- )2ARFE

RAV4 | AIR CLEANER ** Refer Fig ** Refer Fig 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17710B - GROMMET 17751 - INLET, AIR CLEANER, NO.1 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17880 - HOSE ASSY, AIR CLEANER 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17894A - RESONATOR, INTAKE AIR, NO.2 ** Refer Fig 22204 - METER SUB-ASSY, INTAKE AIR FLOW ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
