TOYOTA VIOS CHINA NSP151L-BEPRKC / BODY / FRONT DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

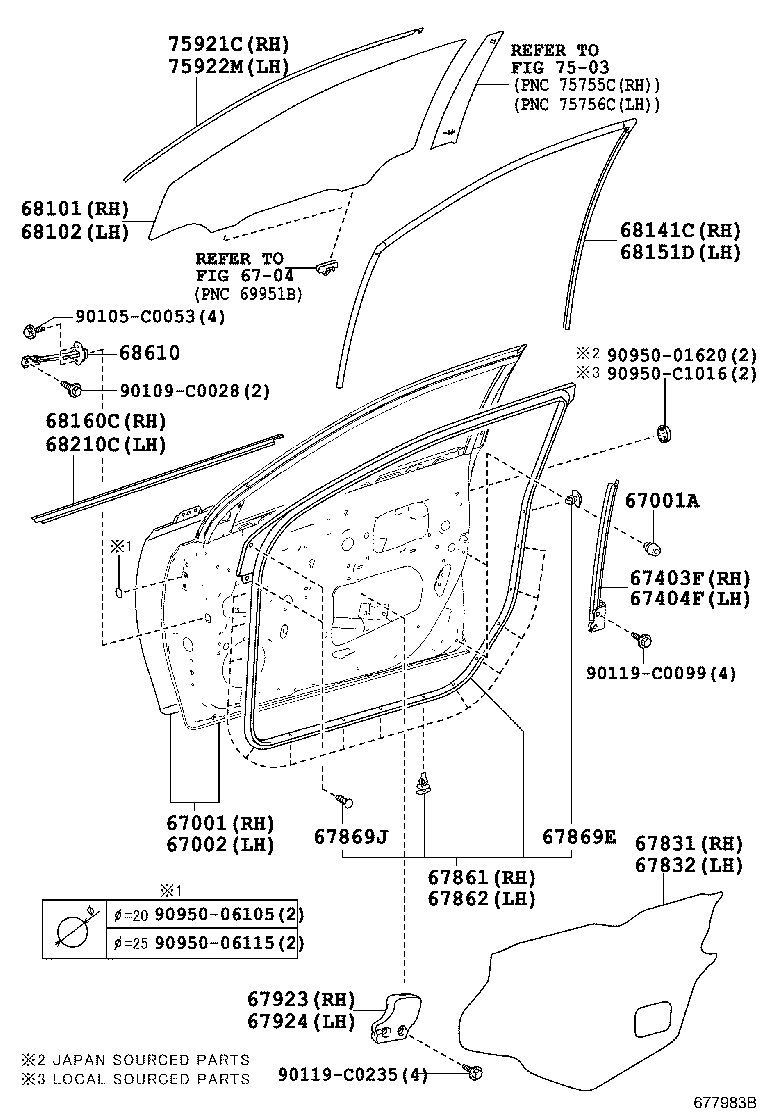

FRONT DOOR PANEL GLASS

DOOR PANEL ILLUST NO. 1 OF 2(1311- )

VIOS CHINA | FRONT DOOR PANEL GLASS 67001 - PANEL SUB-ASSY, FRONT DOOR, RH 67001A - CUSHION, FRONT DOOR PANEL 67002 - PANEL SUB-ASSY, FRONT DOOR, LH ** Refer Fig 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH 67831 - COVER, FRONT DOOR SERVICE HOLE, RH 67832 - COVER, FRONT DOOR SERVICE HOLE, LH 67861 - WEATHERSTRIP, FRONT DOOR, RH 67862 - WEATHERSTRIP, FRONT DOOR, LH 67869E - CLIP, FRONT DOOR WEATHERSTRIP 67869J - CLIP, FRONT DOOR WEATHERSTRIP 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 68101 - GLASS SUB-ASSY, FRONT DOOR, RH 68102 - GLASS SUB-ASSY, FRONT DOOR, LH 68141C - RUN, FRONT DOOR GLASS, RH 68151D - RUN, FRONT DOOR GLASS, LH 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH 68610 - CHECK ASSY, FRONT DOOR ** Refer Fig 75921C - TAPE, BLACK OUT, NO.1 RH 75922M - TAPE, BLACK OUT, NO.1 LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
