TOYOTA YARIS VIOS LIMO NCP150R-BEMRKD / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

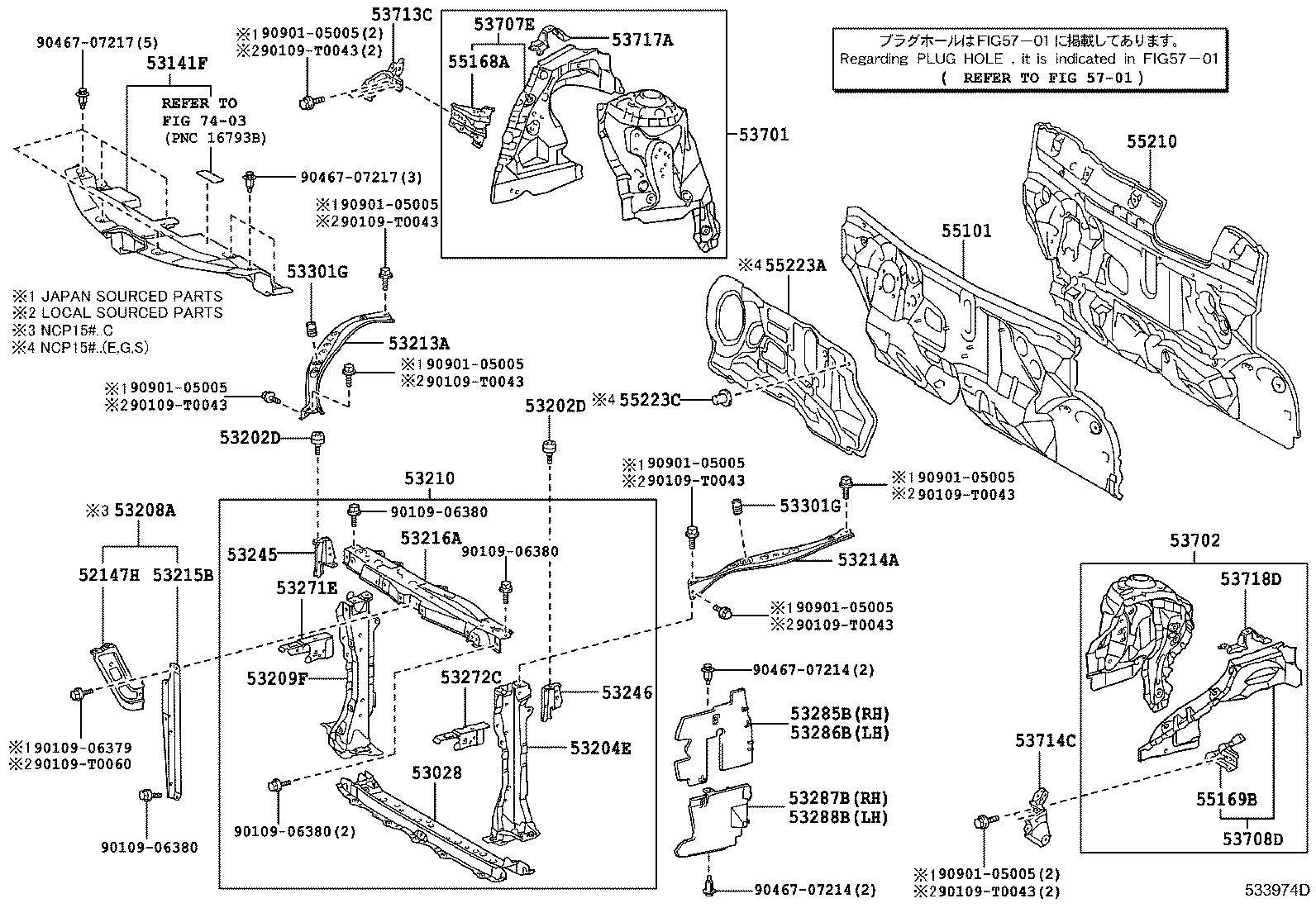

FRONT FENDER APRON DASH PANEL

(1304- )RHD

YARIS VIOS LIMO | FRONT FENDER APRON DASH PANEL 52147H - BRACKET, FRONT BUMPER MOUNTING 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER 53141F - COVER, RADIATOR 53202D - CUSHION, RADIATOR SUPPORT 53202D - CUSHION, RADIATOR SUPPORT 53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH 53210 - SUPPORT ASSY, RADIATOR 53213A - SUPPORT, RADIATOR, UPPER RH 53214A - SUPPORT, RADIATOR, UPPER LH 53215B - SUPPORT, HOOD LOCK 53216A - SUPPORT, RADIATOR, UPPER 53245 - BRACKET, HEADLAMP, RH 53246 - BRACKET, HEADLAMP, LH 53271E - BRACKET, HEADLAMP MOUNTING, RH 53272C - BRACKET, HEADLAMP MOUNTING, LH 53285B - SEAL, RADIATOR SIDE AIR, NO.1 53286B - SEAL, RADIATOR SIDE AIR, NO.2 53287B - EXTENSION, RADIATOR SUPPORT, RH 53288B - EXTENSION, RADIATOR SUPPORT, LH 53301G - CUSHION, HOOD BUMPER 53301G - CUSHION, HOOD BUMPER 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53707E - APRON SUB-ASSY, FENDER SIDE, RH 53708D - APRON SUB-ASSY, FENDER SIDE, LH 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH 53717A - PLATE, FENDER APRON 53718D - GUSSET, FENDER APRON, LH 55101 - PANEL SUB-ASSY, DASH 55168A - BRACKET, FRONT FENDER MOUNTING, RH 55169B - BRACKET, FRONT FENDER MOUNTING, LH 55210 - INSULATOR ASSY, DASH PANEL 55223A - INSULATOR, DASH PANEL, OUTER 55223C - CLIP ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
