TOYOTA YARIS VIOS LIMO NCP151L-BEMRKV / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

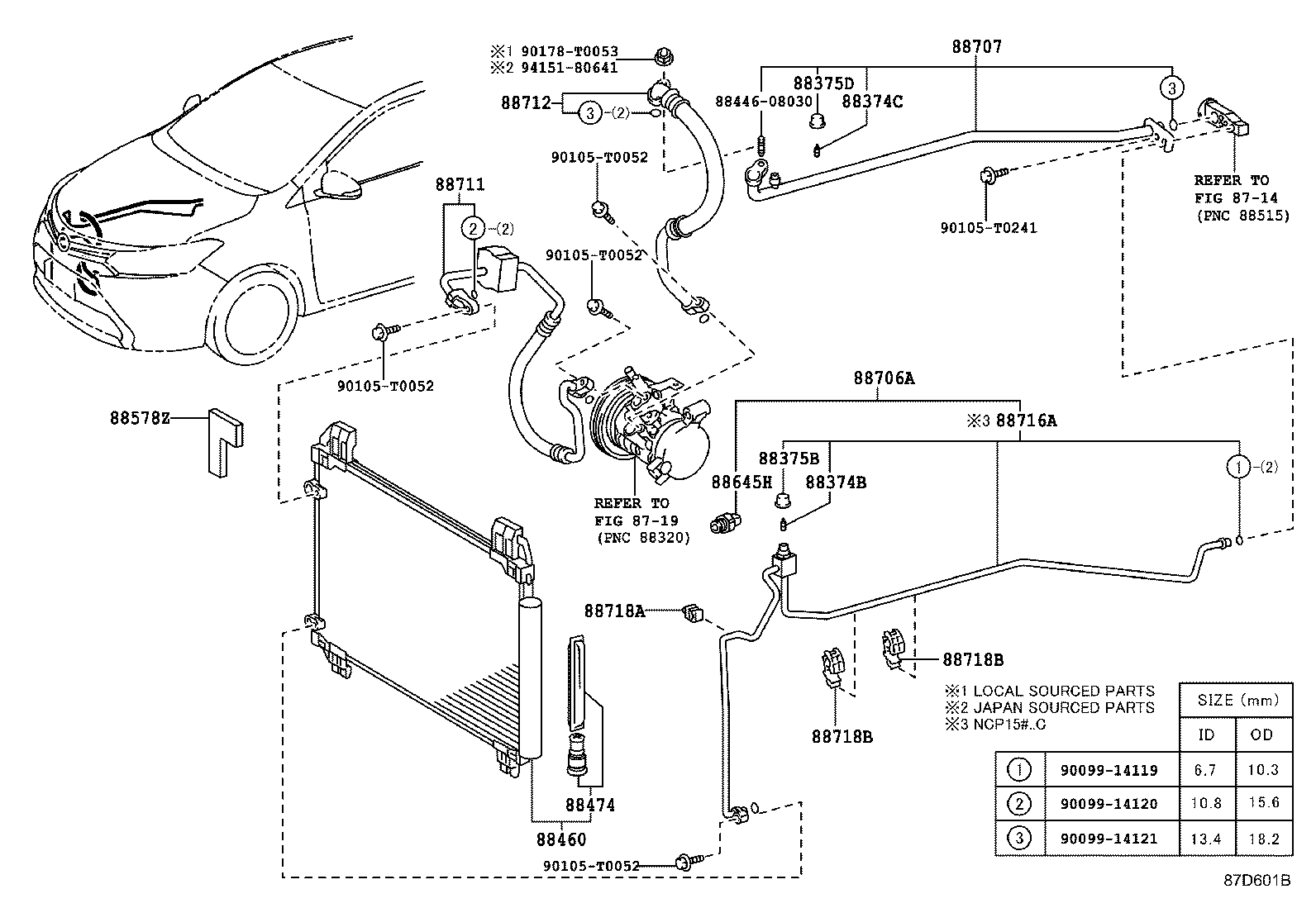

HEATING AIR CONDITIONING COOLER PIPING

(1308- )GCC

 YARIS VIOS LIMO |  HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2  ** Std Part 88460 - CONDENSER ASSY, COOLER 88474 - DRYER, COOLER 88578Z - PACKING, COOLER, NO.1 88645H - SWITCH, PRESSURE NO.1 88706A - TUBE SUB-ASSY, LIQUID, A 88707 - PIPE SUB-ASSY, SUCTION 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88718A - CLAMP(FOR COOLER REFRIGERANT PIPE), NO.1 88718B - CLAMP(FOR COOLER REFRIGERANT PIPE), NO.2 88718B - CLAMP(FOR COOLER REFRIGERANT PIPE), NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
