TOYOTA YARIS NSP152R-AHXRKT / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

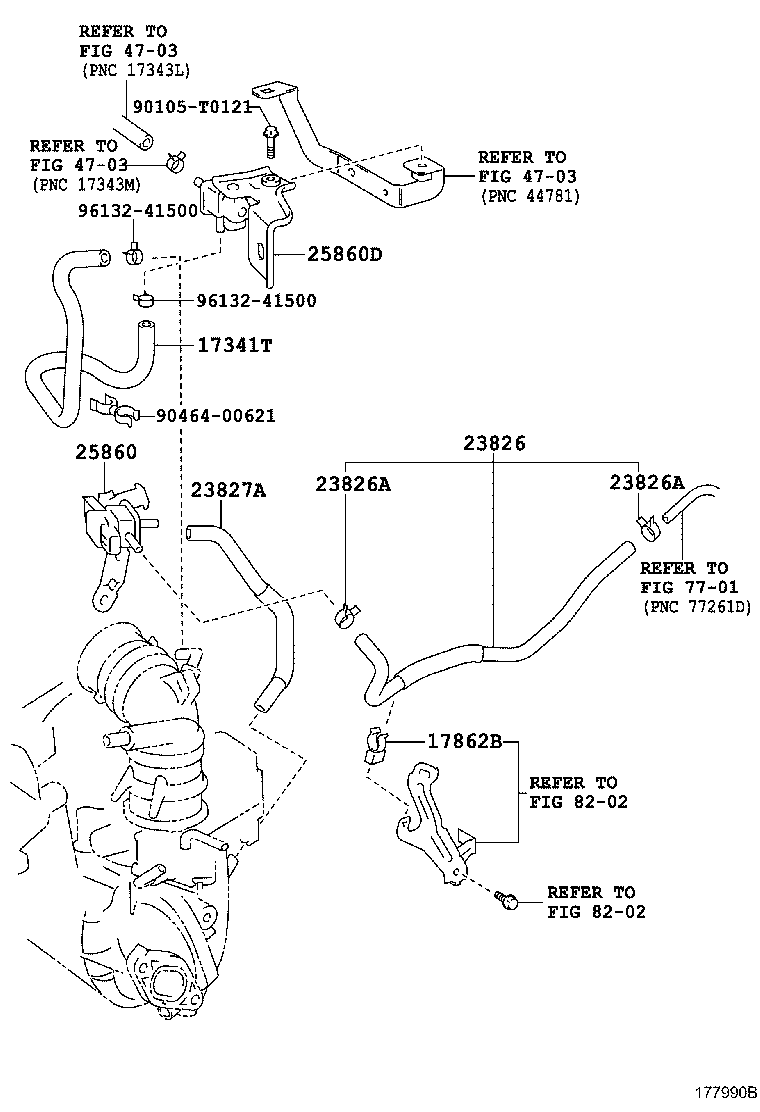

VACUUM PIPING

(1310- )3NRFE

YARIS | VACUUM PIPING 17341T - HOSE, AIR, NO.1 17862B - CLAMP, HOSE 23826 - HOSE, FUEL VAPOR FEED, NO.1 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 23827A - HOSE, FUEL VAPOR FEED, NO.2 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25860D - VALVE ASSY, VACUUM SWITCHING, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
