TOYOTA CENTURY VG20-A / ELECTRICAL / METER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

METER

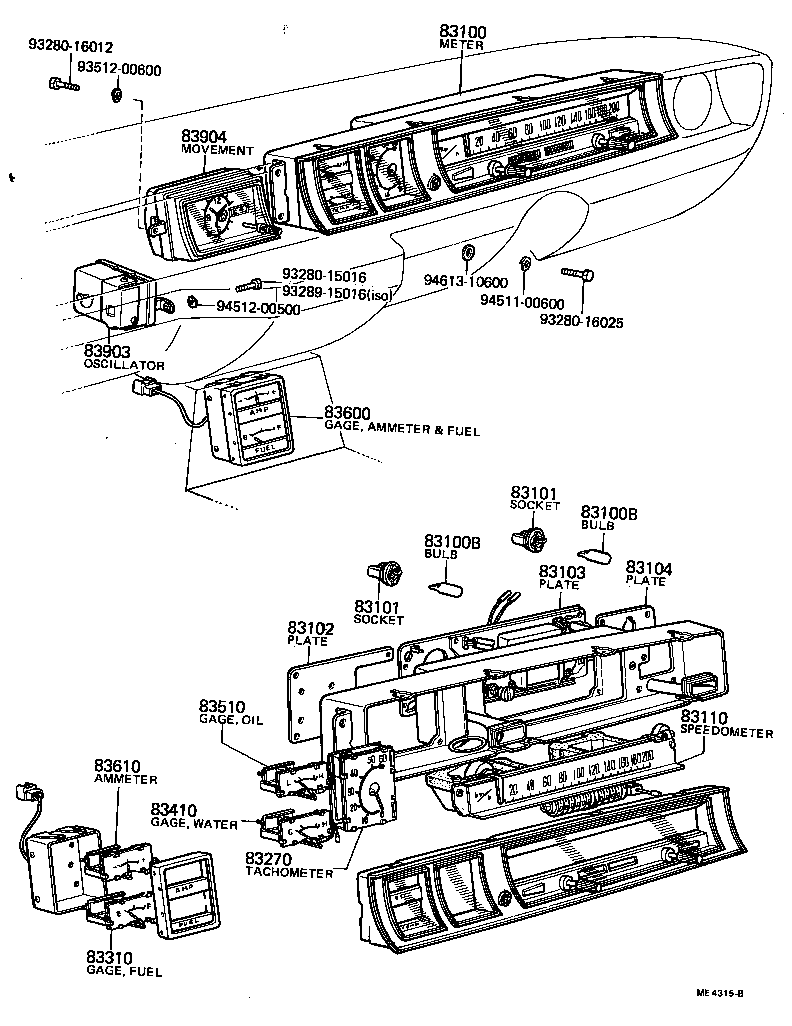

ILLUST NO. 1 OF 2(6711-7109)A

 CENTURY |  METER 83100 - METER ASSY, COMBINATION 83100B - BULB, COMBINATION METER, NO.1 83100B - BULB, COMBINATION METER, NO.1 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 83104 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3 83110 - SPEEDOMETER ASSY 83270 - TACHOMETER ASSY, ENGINE 83310 - GAGE ASSY, FUEL RECEIVER 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER 83510 - GAGE ASSY, OIL PRESSURE RECEIVER 83600 - GAGE ASSY, AMMETER AND OIL PRESSURE OR FUEL RECEIVER 83610 - AMMETER ASSY 83903 - OSCILLATOR SUB-ASSY, CLOCK 83904 - MOVEMENT SUB-ASSY, CLOCK  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
