TOYOTA CENTURY VG20-B / POWERTRAIN-CHASSIS / GEAR SHIFT FORK LEVER SHAFT MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

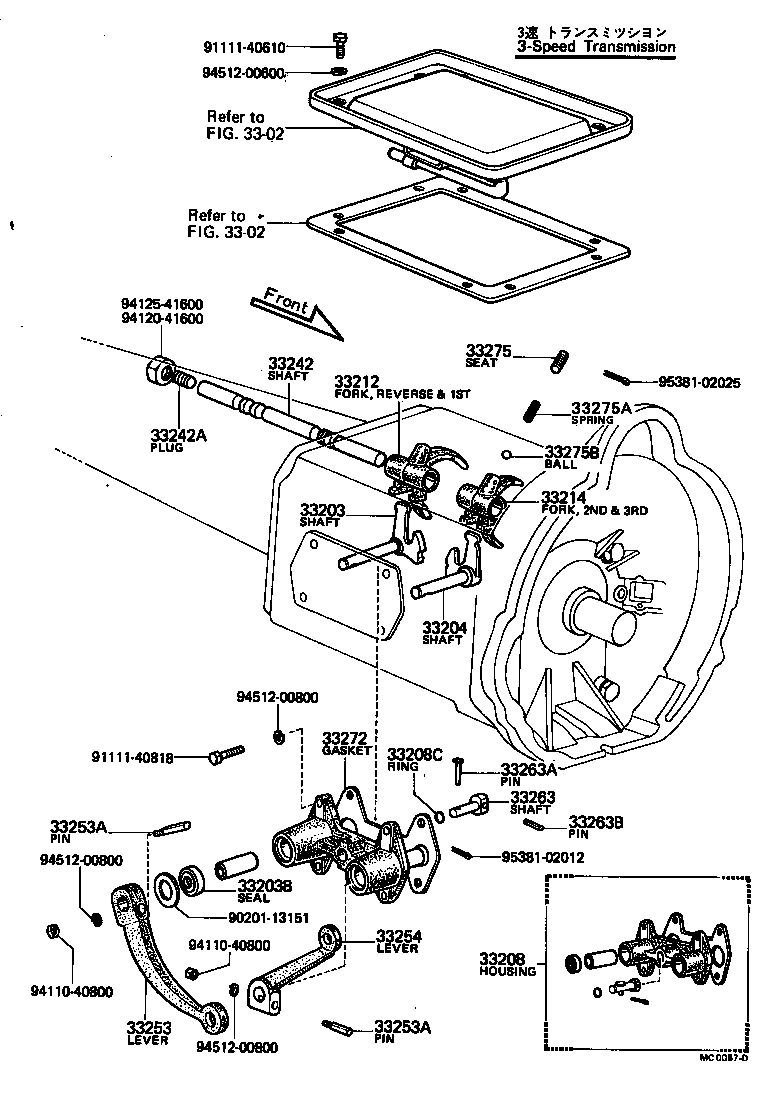

GEAR SHIFT FORK LEVER SHAFT MTM

(6711-6912)B

CENTURY | GEAR SHIFT FORK LEVER SHAFT MTM ** Refer Fig ** Refer Fig 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) 33204 - SHAFT SUB-ASSY, SHIFT LEVER, NO.2 33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT 33208C - RING, O(FOR SHIFT LEVER SHAFT HOUSING) 33212 - FORK, 1ST & REVERSE SHIFT 33214 - FORK, 2ND & 3RD SHIFT 33242 - SHAFT, GEAR SHIFT FORK, NO.1 33242A - PLUG, STRAIGHT SCREW (FOR SHIFT FORK SHAFT ADJUST) 33253 - LEVER, SHIFT OUTER, NO.1 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) 33254 - LEVER, SHIFT OUTER, NO.2 33263 - SHAFT, SHIFT INTER LOCK SUPPORT 33263A - PIN, W/HOLE (FOR SHIFT INTER LOCK SUPPORT SHAFT) 33263B - PIN, STRAIGHT (FOR SHIFT INTER LOCK SUPPORT SHAFT) 33272 - GASKET, SHIFT LEVER SHAFT HOUSING 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) 33275B - BALL, SHAFT DETENT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
