TOYOTA CENTURY VG20-B / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

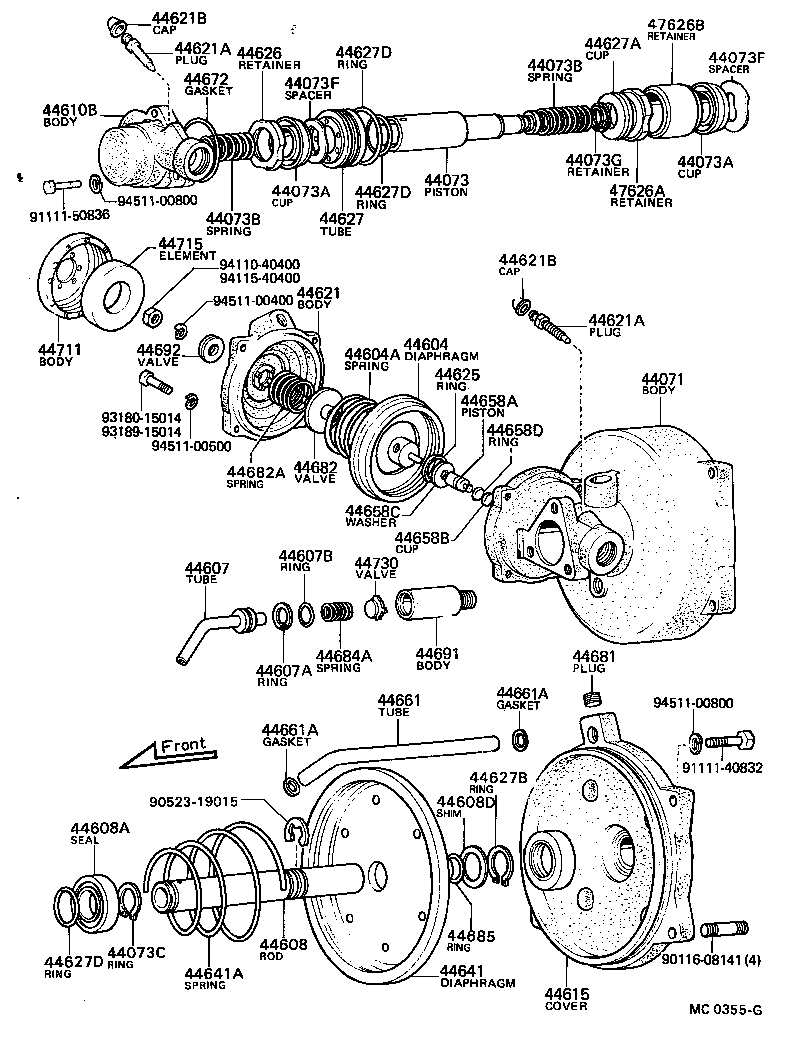

BRAKE BOOSTER VACUUM TUBE

ILLUST NO. 1 OF 2(6711-6903)

 CENTURY |  BRAKE BOOSTER VACUUM TUBE 44071 - BODY SUB-ASSY, BOOSTER 44073 - PISTON, BOOSTER HYDRAULIC REPLACEMENT 44073A - CUP, CYLINDER(FOR HYDRAULIC PISTON) 44073A - CUP, CYLINDER(FOR HYDRAULIC PISTON) 44073B - SPRING(FOR HYDRAULIC VALVE) 44073B - SPRING(FOR HYDRAULIC VALVE) 44073C - RING, HOLE SNAP(FOR BOOSTER HYDRAULIC PISTON) 44073F - SPACER, MASTER CYLINDER PISTON CUP 44073F - SPACER, MASTER CYLINDER PISTON CUP 44073G - RETAINER, PISTON RETURN SPRING 44604 - DIAPHRAGM & PLATE SUB-ASSY, BOOSTER VALVE 44604A - SPRING, COMPRESSION(FOR DIAPHRAGM RETURN) 44607 - TUBE SUB-ASSY, CHECK VALVE 44607A - RING, HOLE SNAP(FOR CHECK VALVE TUBE) 44607B - RING, O(FOR CHECK VALVE TUBE) 44608 - PUSH ROD SUB-ASSY, BOOSTER 44608A - SEAL, OIL(FOR PUSH ROD DUST) 44608D - SHIM(FOR BOOSTER PUSH ROD) 44610B - BODY, HYDRAULIC CYLINDER 44615 - COVER, BOOSTER SHELL 44621 - BODY, BOOSTER VALVE 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) 44625 - RING, BOOSTER STOP WASHER SNAP 44626 - RETAINER, BOOSTER ROD CUP 44627 - TUBE, BOOSTER CYLINDER 44627A - CUP, CYLINDER(FOR BOOSTER ROD) 44627B - RING, HOLE SNAP(FOR ROD CUP RETAINER) 44627D - RING, O(FOR BOOSTER CYLINDER TUBE) 44627D - RING, O(FOR BOOSTER CYLINDER TUBE) 44627D - RING, O(FOR BOOSTER CYLINDER TUBE) 44641 - DIAPHRAGM, BOOSTER 44641A - SPRING, COMPRESSION(FOR RETURN) 44658A - PISTON, CONTROL VALVE 44658B - CUP, CYLINDER(FOR BOOSTER CONTROL VALVE) 44658C - WASHER, BOOSTER PISTON STOP 44658D - RING, O(FOR BOOSTER CONTROL VALVE) 44661 - TUBE, BOOSTER VACUUM 44661A - GASKET OR RING, O(FOR BOOSTER VACUUM TUBE) 44661A - GASKET OR RING, O(FOR BOOSTER VACUUM TUBE) 44672 - GASKET, BOOSTER OR RING, O 44681 - PLUG, BOOSTER 44682 - VALVE, BOOSTER VACUUM 44682A - SPRING, COMPRESSION(FOR VACUUM VALVE) 44684A - SPRING, BOOSTER CHECK VALVE 44685 - RING, O OR GROMMET(FOR BOOSTER PISTON ROD END) 44691 - BODY, CHECK VALVE 44692 - VALVE, BOOSTER AIR 44711 - BODY, AIR CLEANER(FOR BOOSTER) 44715 - ELEMENT, AIR CLEANER(FOR BOOSTER) 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 47626A - RETAINER, MASTER CYLINDER PISTON CUP, NO.1 47626B - RETAINER, MASTER CYLINDER PISTON CUP, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
