TOYOTA CENTURY VG20-C / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CARBURETOR

(6711-7505)

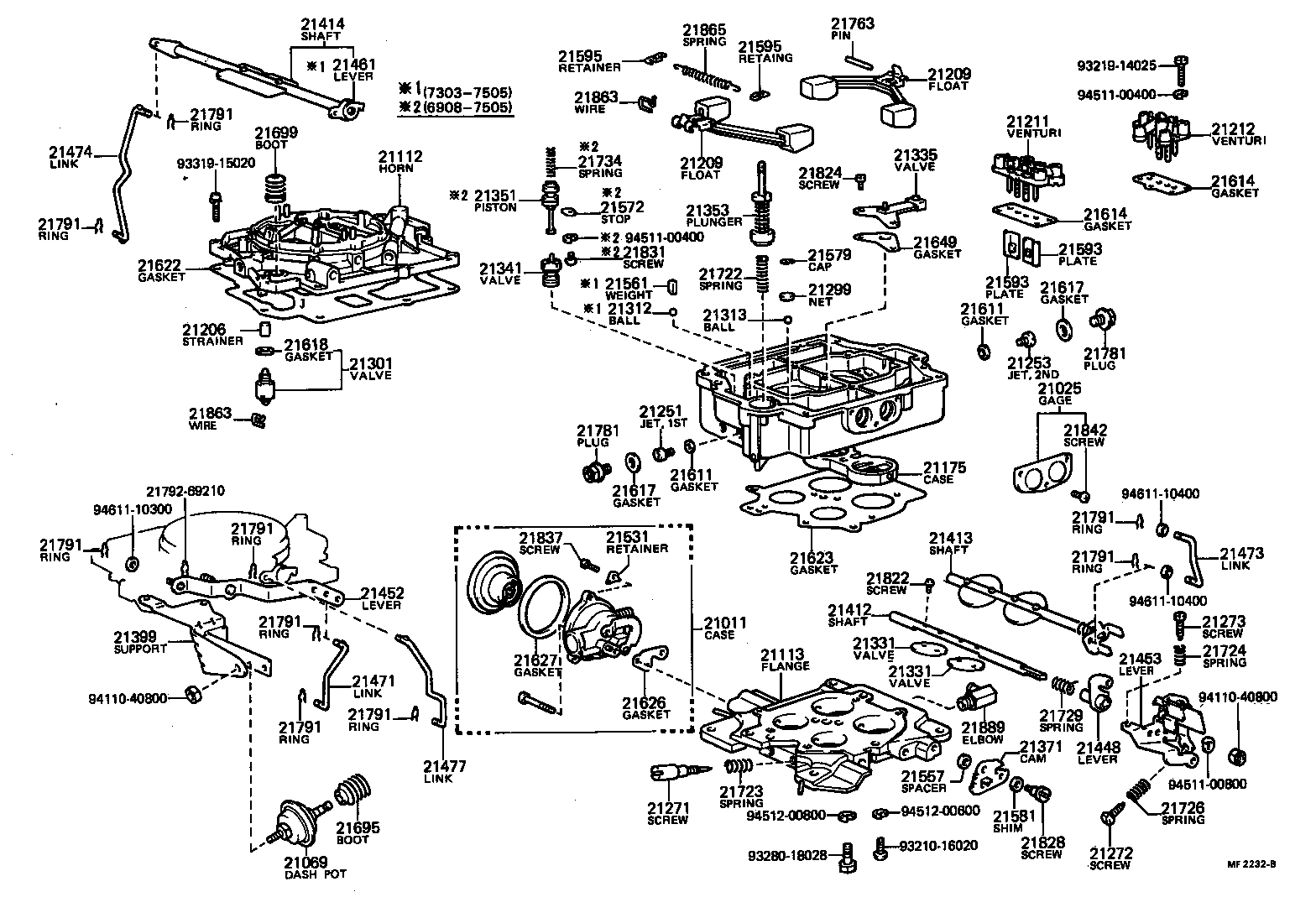

CENTURY | CARBURETOR 21011 - CASE SUB-ASSY, AUTOMATIC CHOKE 21025 - GAGE SUB-ASSY, CARBURETOR LEVEL 21069 - DASH POT SUB-ASSY 21112 - HORN, AIR 21113 - FLANGE, CARBURETOR 21175 - CASE, HIGH SPEED VALVE 21206 - STRAINER SUB-ASSY 21209 - FLOAT SUB-ASSY 21209 - FLOAT SUB-ASSY 21211 - VENTURI, 1ST SMALL 21212 - VENTURI, 2ND SMALL 21251 - JET, 1ST MAIN 21253 - JET, 2ND MAIN 21271 - SCREW, IDLE ADJUSTING 21272 - SCREW, 1ST IDLE ADJUSTING 21273 - SCREW, THROTTLE ADJUSTING 21299 - NET, PUMP FILTER 21301 - VALVE SUB-ASSY, NEEDLE 21312 - BALL, STEEL 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) 21331 - VALVE, 1ST THROTTLE 21331 - VALVE, 1ST THROTTLE 21335 - VALVE, THERMOSTATIC 21341 - VALVE, POWER 21351 - PISTON, POWER 21353 - PLUNGER, PUMP 21371 - CAM, 1ST IDLE 21399 - SUPPORT(FOR DASH POT) 21412 - SHAFT, 1ST THROTTLE 21413 - SHAFT, 2ND THROTTLE 21414 - SHAFT, CHOKE 21448 - LEVER, 1ST KICK 21452 - LEVER, PUMP 21453 - LEVER, 1ST THROTTLE 21461 - LEVER, 1ST IDLE 21471 - LINK, PUMP CONNECTING 21473 - LINK, THROTTLE SHAFT 21474 - LINK, CONNECTING 21477 - LINK, CHOKE LEVER 21531 - RETAINER, COIL HOUSING 21557 - SPACER(FOR 1ST IDLE CAM) 21561 - WEIGHT, PUMP DISCHARGE 21572 - STOP, POWER PISTON 21579 - CAP, STRAINER 21581 - SHIM, 1ST THROTTLE SHAFT 21593 - PLATE(FOR THROTTLE RETURN SPRING SET) 21593 - PLATE(FOR THROTTLE RETURN SPRING SET) 21595 - RETAINER, SPRING 21595 - RETAINER, SPRING 21611 - GASKET, MAIN JET 21611 - GASKET, MAIN JET 21614 - GASKET, VENTURI 21614 - GASKET, VENTURI 21617 - GASKET, MAIN PASSAGE PLUG 21617 - GASKET, MAIN PASSAGE PLUG 21618 - GASKET, NEEDLE VALVE SEAT 21622 - GASKET, AIR HORN 21623 - GASKET, BODY FLANGE 21626 - GASKET, CASE 21627 - GASKET, COIL HOUSING 21649 - GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER) 21695 - BOOT(FOR DASH POT) 21699 - BOOT(FOR PUMP PLUNGER) 21722 - SPRING, PUMP DAMPING 21723 - SPRING, IDLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21726 - SPRING, 1ST IDLE ADJUSTING 21729 - SPRING, 1ST THROTTLE BACK 21734 - SPRING, POWER PISTON 21763 - PIN, FLOAT LEVER 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) ** Std Part 21822 - SCREW, 1ST THROTTLE VALVE SET 21824 - SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET) 21828 - SCREW, 1ST IDLE SET 21831 - SCREW, POWER PISTON STOP 21837 - SCREW, COIL HOUSING SET 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) 21863 - WIRE(FOR FLOAT) 21863 - WIRE(FOR FLOAT) 21865 - SPRING 21889 - ELBOW ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
