TOYOTA CENTURY VG20-D / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

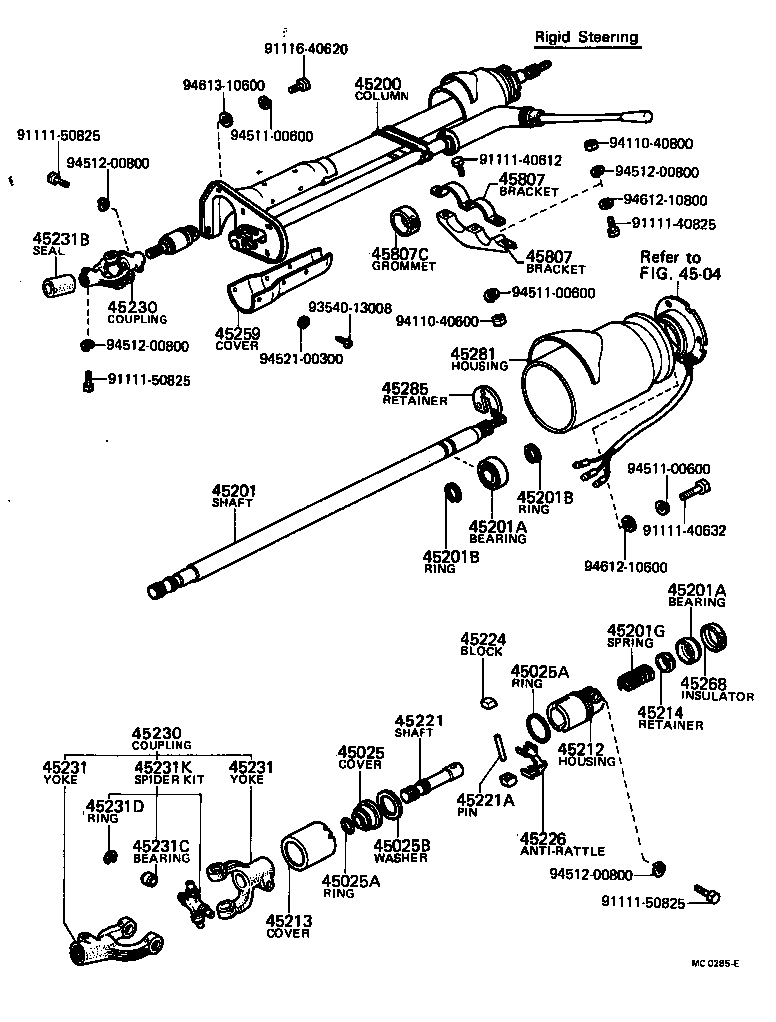

STEERING COLUMN SHAFT

ILLUST NO. 1 OF 3(6711-6903)B,C,D

CENTURY | STEERING COLUMN SHAFT 45025 - COVER, STEERING INTERMEDIATE SHAFT 45025A - RING, O(FOR STEERING COLUMN HOLE COVER) 45025A - RING, O(FOR STEERING COLUMN HOLE COVER) 45025B - WASHER, PLATE(FOR STEERING COLUMN HOLE COVER) ** Refer Fig 45200 - POST ASSY, STEERING 45201 - SHAFT SUB-ASSY, STEERING MAIN 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) 45212 - HOUSING, MAIN SHAFT JOINT 45213 - COVER, MAIN SHAFT JOINT 45214 - RETAINER, MAIN SHAFT SPRING 45221 - SHAFT, STEERING INTERMEDIATE 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) 45230 - COUPLING ASSY, FLEXIBLE 45230 - COUPLING ASSY, FLEXIBLE 45231 - YOKE, MAIN SHAFT FLEXIBLE COUPLING 45231 - YOKE, MAIN SHAFT FLEXIBLE COUPLING 45231B - SEAL, DUST 45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT) 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) 45231K - SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT) 45259 - COVER, STEERING COLUMN, LOWER 45268 - COVER, STEERING INTER SHAFT DUST SEAL 45281 - HOUSING, STEERING COLUMN 45285 - RETAINER, CONTACT RING HOUSING 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT 45807C - GROMMET(FOR STEERING COLUMN CLAMP) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
