TOYOTA CENTURY VG20-D / POWERTRAIN-CHASSIS / STEERING WHEEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

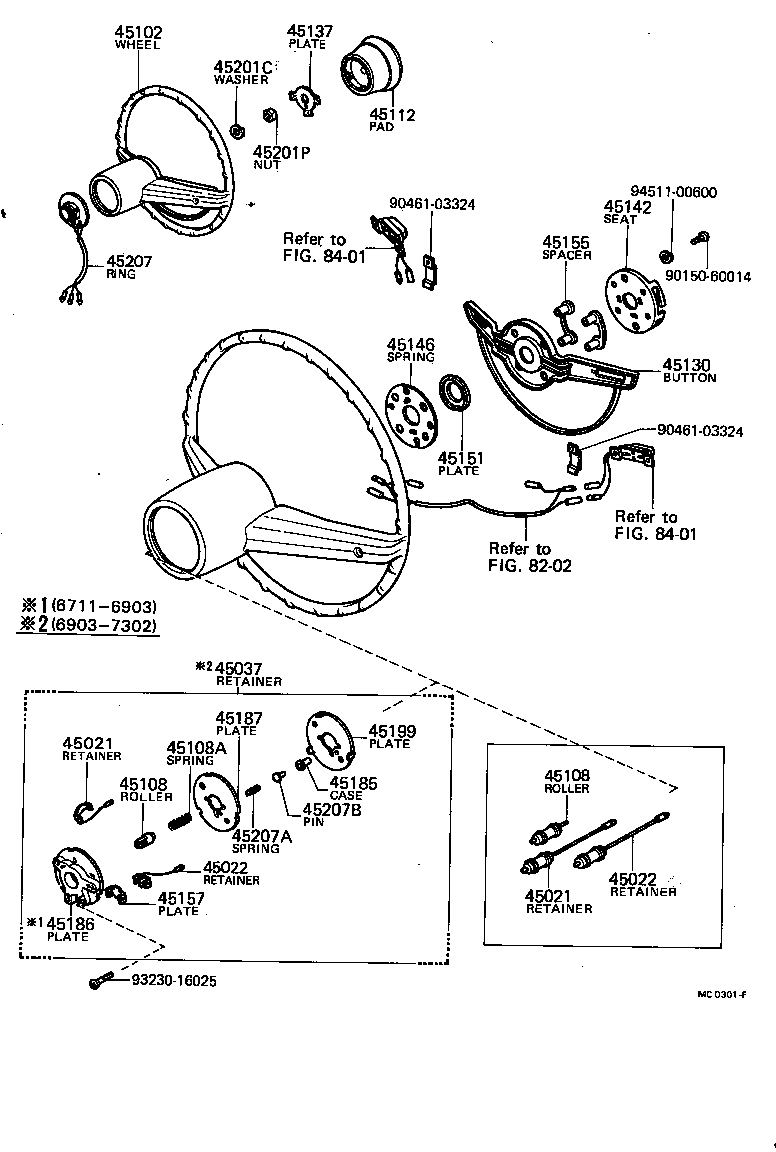

STEERING WHEEL

(6711-7302)

CENTURY | STEERING WHEEL 45021 - RETAINER SUB-ASSY, RH TURN SIGNAL CONTACT 45021 - RETAINER SUB-ASSY, RH TURN SIGNAL CONTACT 45022 - RETAINER SUB-ASSY, LH TURN SIGNAL CONTACT 45022 - RETAINER SUB-ASSY, LH TURN SIGNAL CONTACT 45037 - RETAINER SUB-ASSY, CONTACT ROLLER HOLDER NO.1 45102 - WHEEL SUB-ASSY, STEERING 45108 - ROLLER SUB-ASSY, HORN CONTACT 45108 - ROLLER SUB-ASSY, HORN CONTACT 45108A - SPRING, COMPRESSION(FOR HORN CONTACT ROLLER) 45112 - PAD, STEERING WHEEL 45130 - BUTTON ASSY, HORN 45137 - PLATE, HORN BUTTON STOP 45142 - SEAT, HORN BUTTON CONTACT, NO.1 45146 - SPRING, HORN BUTTON CONTACT 45151 - PLATE,HORN CONTACT SPRING SET 45155 - SPACER, HORN BUTTON CONTACT PLATE 45157 - PLATE, HORN LEAD WIRE CONTACT 45185 - CASE, HORN LEAD SPRING 45186 - COVER, STEERING WHEEL, LOWER NO.2 45187 - COVER, STEERING WHEEL, LOWER NO.3 45199 - PLATE, INSULATOR BACK UP, NO.2 45201C - WASHER, SPRING(FOR STEERING WHEEL SET) 45201P - NUT, STEERING WHEEL SET 45207 - RING, HORN CONTACT 45207A - SPRING, COMPRESSION(FOR HORN EARTH) 45207B - PIN, W/HEAD(FOR HORN EARTH) ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
