TOYOTA PUBLICA KP31-SR / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CARBURETOR

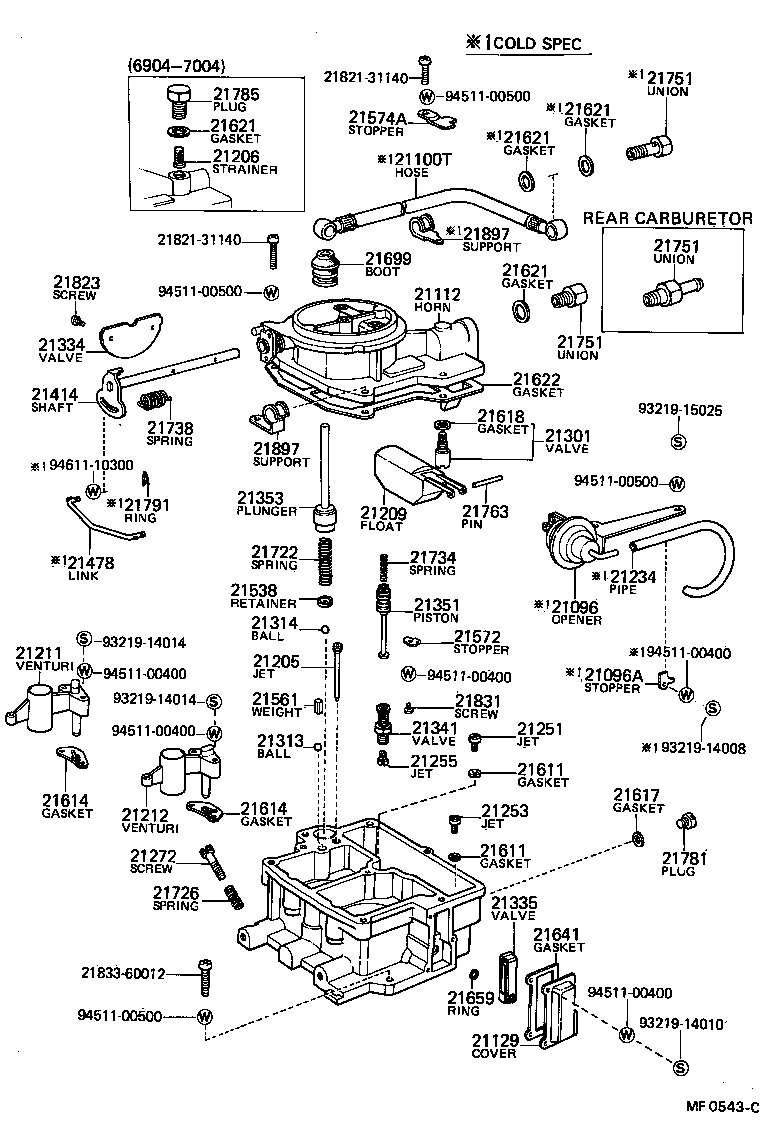

ILLUST NO. 1 OF 2(6904-7304)KB,3KB#

PUBLICA | CARBURETOR 21096 - OPENER SUB-ASSY, THROTTLE 21096A - STOPPER(FOR OPENER) 21100T - HOSE(FOR CARBURETOR TO CARBURETOR) 21112 - HORN, AIR 21129 - COVER(FOR THERMOSTATIC VALVE) 21205 - JET SUB-ASSY, SLOW 21206 - STRAINER SUB-ASSY 21209 - FLOAT SUB-ASSY 21211 - VENTURI, 1ST SMALL 21212 - VENTURI, 2ND SMALL 21234 - PIPE OR HOSE 21251 - JET, 1ST MAIN 21253 - JET, 2ND MAIN 21255 - JET, POWER 21272 - SCREW, 1ST IDLE ADJUSTING 21301 - VALVE SUB-ASSY, NEEDLE 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) 21334 - VALVE, CHOKE 21335 - VALVE, THERMOSTATIC 21341 - VALVE, POWER 21351 - PISTON, POWER 21353 - PLUNGER, PUMP 21414 - SHAFT, CHOKE 21478 - LINK, CONNECTING 21538 - RETAINER, BALL CHECK 21561 - WEIGHT, PUMP DISCHARGE 21572 - STOP, POWER PISTON 21574A - STOPPER, FUEL HOSE 21611 - GASKET, MAIN JET 21611 - GASKET, MAIN JET 21614 - GASKET, VENTURI 21614 - GASKET, VENTURI 21617 - GASKET, MAIN PASSAGE PLUG 21618 - GASKET, NEEDLE VALVE SEAT 21621 - GASKET, UNION NIPPLE 21621 - GASKET, UNION NIPPLE 21621 - GASKET, UNION NIPPLE 21621 - GASKET, UNION NIPPLE 21622 - GASKET, AIR HORN 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) 21659 - RING, O(FOR THERMOSTATIC VALVE) 21699 - BOOT(FOR PUMP PLUNGER) 21722 - SPRING, PUMP DAMPING 21726 - SPRING, 1ST IDLE ADJUSTING 21734 - SPRING, POWER PISTON 21738 - SPRING, CHOKE VALVE RELIEF 21751 - UNION, NIPPLE 21751 - UNION, NIPPLE 21751 - UNION, NIPPLE 21763 - PIN, FLOAT LEVER 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21785 - PLUG, CARBURETOR FUEL INLET STRAINER 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) ** Std Part ** Std Part 21823 - SCREW, CHOKE, VALVE SET 21831 - SCREW, POWER PISTON STOP ** Std Part 21897 - SUPPORT, FRONT(FOR CHOKE SHAFT) 21897 - SUPPORT, FRONT(FOR CHOKE SHAFT) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
