TOYOTA LAND CRUISER VAN FJ40-C / POWERTRAIN-CHASSIS / TRANSFER VALVE BODY VALVE LEVER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

TRANSFER VALVE BODY VALVE LEVER

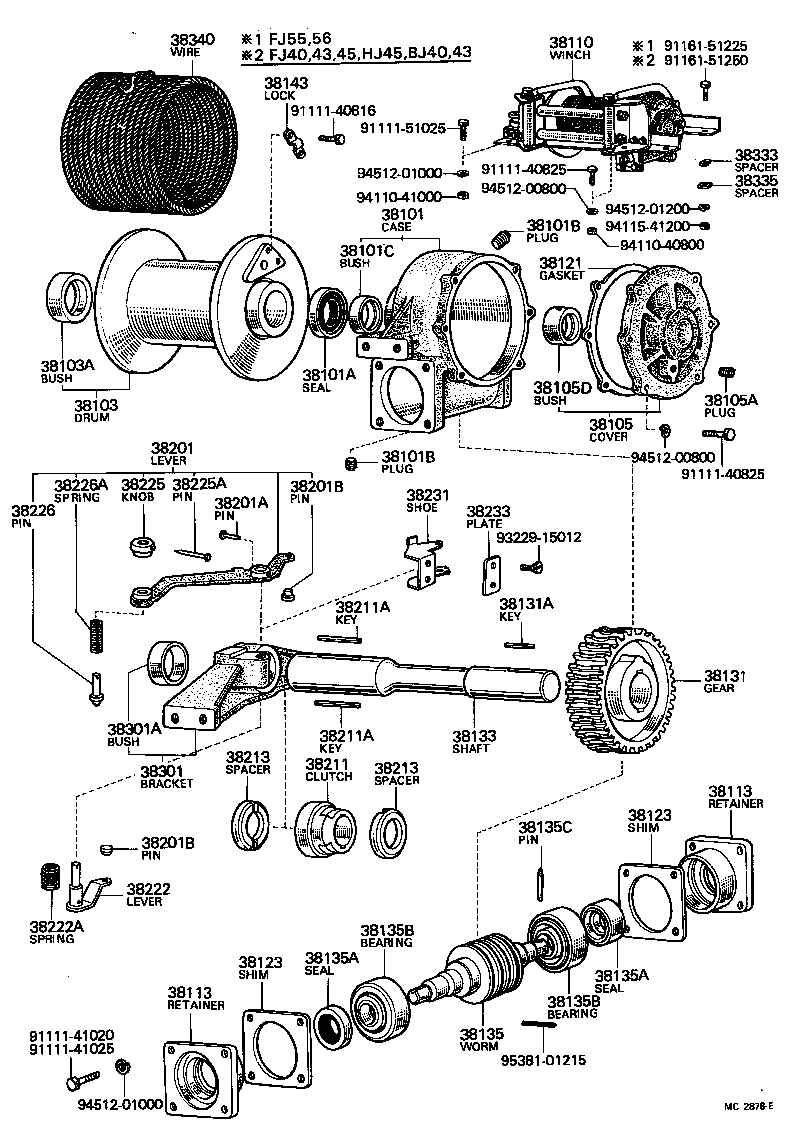

ILLUST NO. 2 OF 2(6903-8007)

LAND CRUISER VAN | TRANSFER VALVE BODY VALVE LEVER 38101 - CASE SUB-ASSY, WINCH GEAR 38101A - SEAL, TYPE T OIL (FOR WINCH GEAR CASE) 38101B - PLUG, W/HEAD TAPER SCREW (FOR WINCH GEAR CASE) 38101B - PLUG, W/HEAD TAPER SCREW (FOR WINCH GEAR CASE) 38101C - BUSH, SOLID (FOR WINCH GEAR CASE) 38103 - DRUM SUB-ASSY, WINCH 38103A - BUSH (FOR WINCH DRUM) 38105 - COVER SUB-ASSY, WINCH GEAR CASE 38105A - PLUG (FOR WINCH SIDE GEAR CASE) 38105D - BUSH (FOR WINCH GEAR CASE COVER) 38110 - WINCH ASSY 38113 - RETAINER, WORM BEARING 38113 - RETAINER, WORM BEARING 38121 - GASKET, WINCH GEAR CASE COVER 38123 - SHIM, ADJUST 38123 - SHIM, ADJUST 38131 - GEAR, WORM 38131A - KEY, SLIDING (FOR WINCH WORM GEAR) 38133 - SHAFT, WORM GEAR 38135 - WORM, WINCH 38135A - SEAL, TYPE T OIL (FOR WINCH WORM) 38135A - SEAL, TYPE T OIL (FOR WINCH WORM) 38135B - BEARING (FOR WINCH WORM) 38135B - BEARING (FOR WINCH WORM) 38135C - PIN, SAFETY LOCK 38143 - LOCK, WIRE 38201 - LEVER SUB-ASSY, WINCH CLUTCH 38201A - PIN, WINCH CLUTCH LEVER 38201B - PIN, WINCH CLUTCH 38201B - PIN, WINCH CLUTCH 38211 - CLUTCH, WINCH 38211A - KEY, WINCH CLUTCH 38211A - KEY, WINCH CLUTCH 38213 - SPACER, CLUTCH FEATHER KEY 38213 - SPACER, CLUTCH FEATHER KEY 38222 - LEVER, WINCH CLUTCH, LOWER 38222A - SPRING (FOR WINCH CLUTCH LOWER LEVER) 38225 - KNOB, WINCH CLUTCH LEVER 38225A - PIN, WINCH CLUTCH LEVER KNOB 38226 - PIN, LEVER SHIFT LOCK 38226A - SPRING, LEVER SHIFT LOCK PIN 38231 - SHOE, BRAKE 38233 - PLATE, BRAKE 38301 - BRACKET SUB-ASSY, WINCH END 38301A - BUSH (FOR WINCH END BRACKET) 38333 - SPACER, MEMBER, NO.1 38335 - SPACER, MEMBER, NO.2 38340 - WIRE ASSY, WINCH CHAIN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
