TOYOTA LAND CRUISER VAN FJ40V-BC / TOOL-ENGINE-FUEL / AIR PUMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

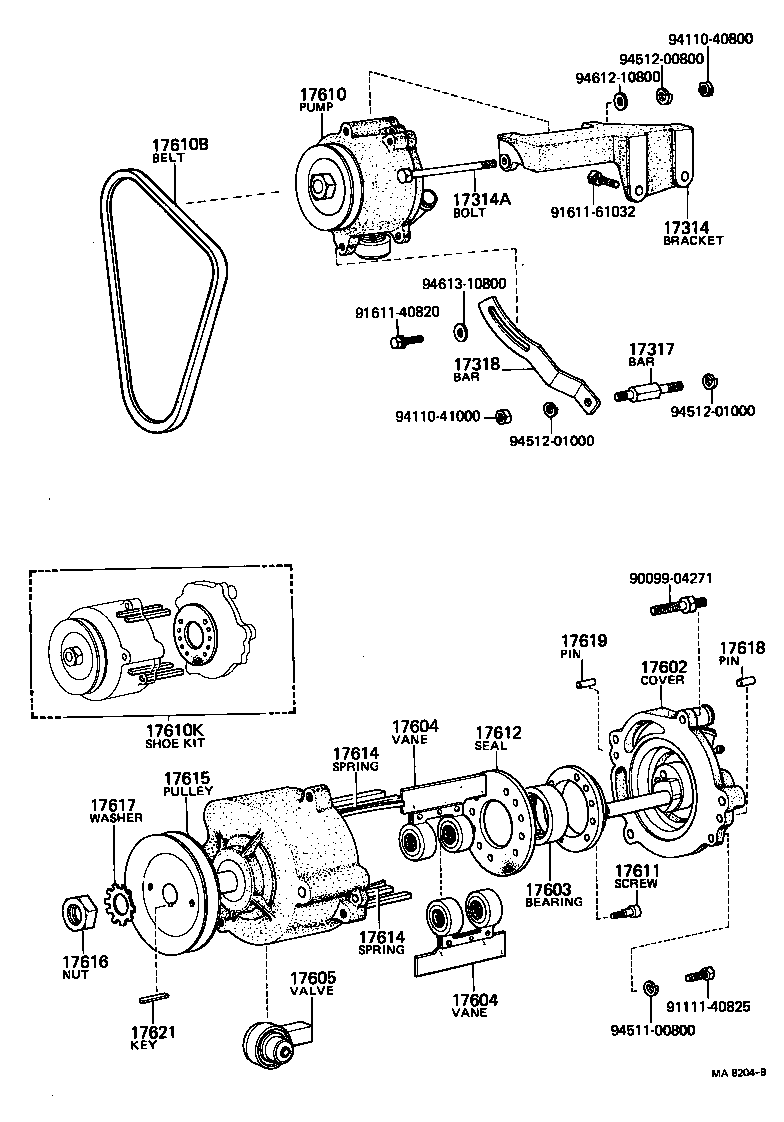

AIR PUMP

(7309-7509)F

LAND CRUISER VAN | AIR PUMP 17314 - BRACKET, AIR PUMP 17314A - BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING) 17317 - BAR, AIR PUMP ADJUSTING, NO.1 17318 - BAR, AIR PUMP ADJUSTING, NO.2 17602 - COVER SUB-ASSY, HOUSING 17603 - BEARING, REAR 17604 - VANE SUB-ASSY 17604 - VANE SUB-ASSY 17605 - VALVE SUB-ASSY, RELIEF 17610 - PUMP ASSY, AIR 17610B - BELT, V(FOR AIR PUMP) 17610K - SHOE KIT, CARBON 17611 - SCREW, ROTOR RING 17612 - SEAL, REAR(FOR AIR PUMP) 17614 - SPRING, SHOE(FOR AIR PUMP) 17614 - SPRING, SHOE(FOR AIR PUMP) 17615 - PULLEY(FOR AIR PUMP) 17616 - NUT, PULLEY LOCK 17617 - WASHER, PULLEY LOCK 17618 - PIN, KNOCK, A(FOR AIR PUMP) 17619 - PIN, KNOCK, B(FOR AIR PUMP) 17621 - KEY(FOR AIR PUMP PULLEY) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
