TOYOTA COASTER BB10-QDER / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COMPRESSOR

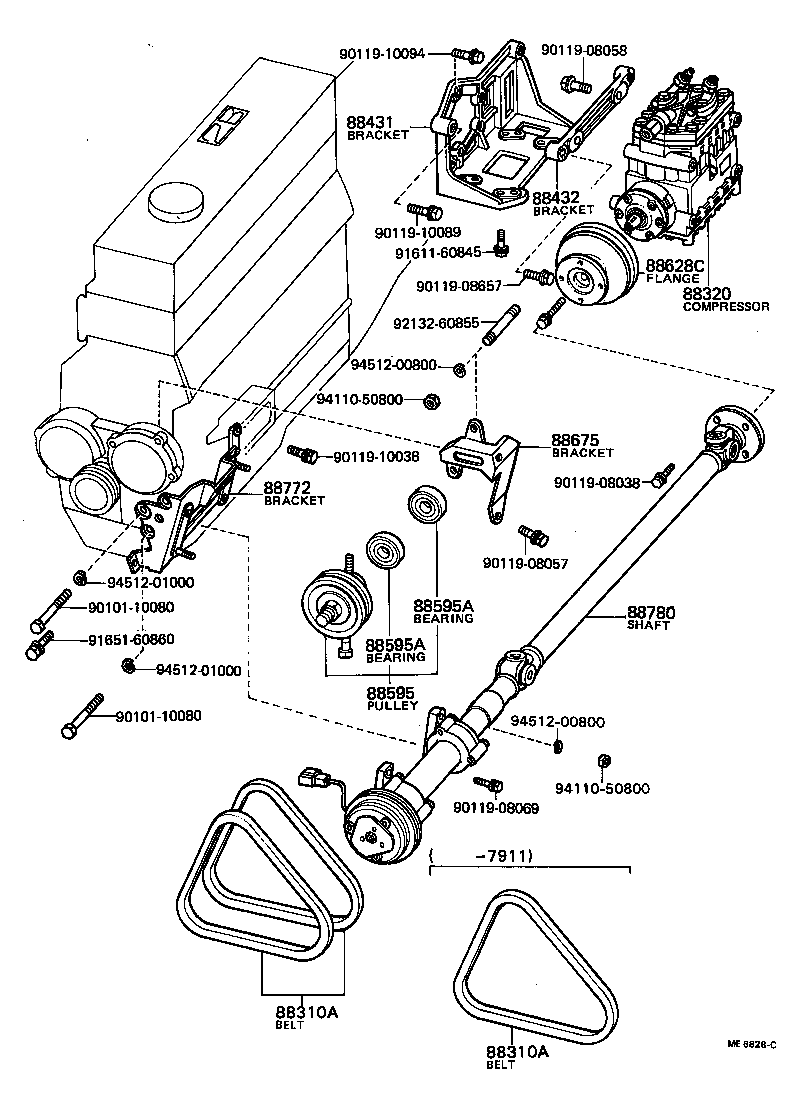

ILLUST NO. 1 OF 2(7708- )BB1#..BC

 COASTER |  HEATING AIR CONDITIONING COMPRESSOR 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 88320 - COMPRESSOR ASSY, COOLER 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 88595 - PULLEY, COOLER COMPRESSOR IDLE 88595A - BEARING (FOR COOLER IDLE PULLEY) 88595A - BEARING (FOR COOLER IDLE PULLEY) 88628C - FLANGE, COUPLING 88675 - BRACKET, IDLER PULLEY (FOR COOLER) 88772 - BRACKET, SHAFT MOUNTING 88780 - SHAFT ASSY  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
