TOYOTA DYNA BU20D-QRTU3 / BODY / REAR BODY SIDE GATE LOCK TAIL GATE LOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR BODY SIDE GATE LOCK TAIL GATE LOCK

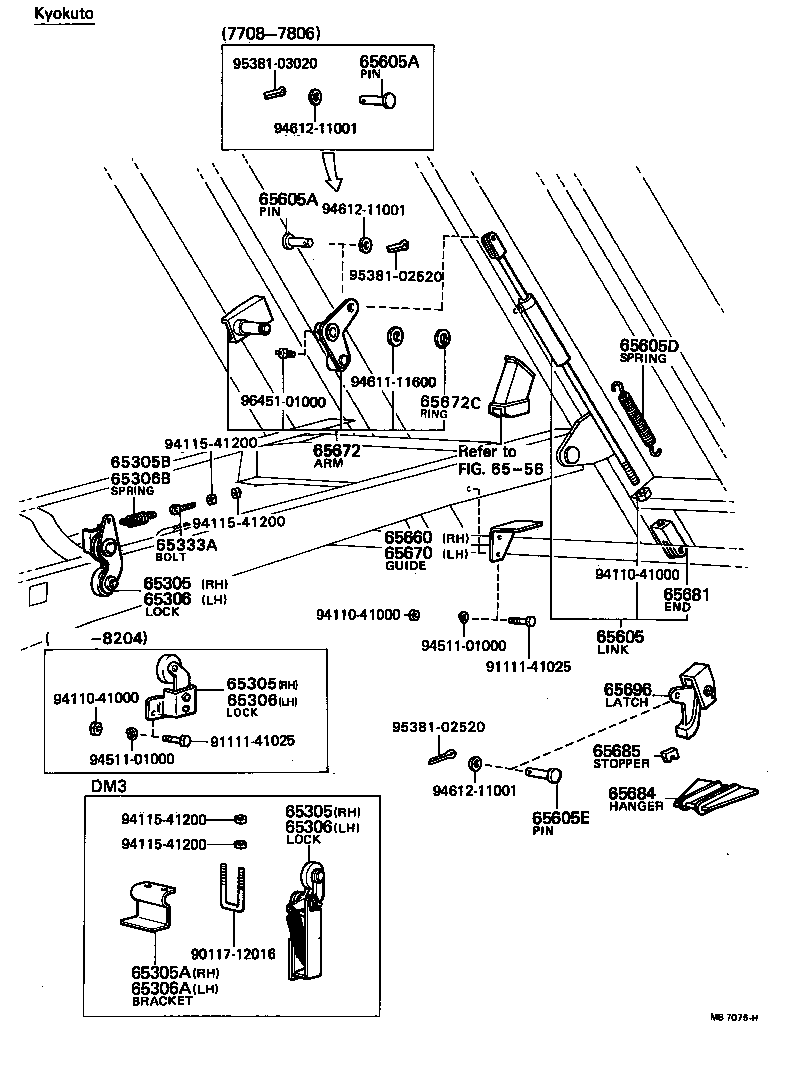

ILLUST NO. 1 OF 3(7708- )DM1,DM4..KKT ; (7904-8008)DM3

DYNA | REAR BODY SIDE GATE LOCK TAIL GATE LOCK 65305 - LOCK SUB-ASSY, BEZEL, RH 65305 - LOCK SUB-ASSY, BEZEL, RH 65305 - LOCK SUB-ASSY, BEZEL, RH 65305A - BRACKET, U BOLT SUPPORT, RH 65305B - SPRING, TENSION, RH(FOR BODY LOCK) 65306 - LOCK SUB-ASSY, BEZEL, LH 65306 - LOCK SUB-ASSY, BEZEL, LH 65306 - LOCK SUB-ASSY, BEZEL, LH 65306A - BRACKET, U BOLT SUPPORT, LH 65306B - SPRING, TENSION, LH(FOR BODY LOCK) 65333A - BOLT, TENSION SPRING ** Refer Fig 65605 - LINK SUB-ASSY, TAIL GATE LOCK 65605A - PIN, TAIL GATE LOCK LINK 65605A - PIN, TAIL GATE LOCK LINK 65605D - SPRING, TENSION(FOR TAIL GATE LOCK LINK SETTING) 65605E - PIN, W/HOLE(FOR TAIL GATE LOCK LINK SETTING) 65660 - GUIDE, ROLLER, RH 65670 - GUIDE, ROLLER, LH 65672 - ARM, TAIL GATE LOCK ROLLER 65672C - RING, SNAP(FOR ROLLER ARM SETTING) 65681 - END, TAIL GATE LOCK LINK 65684 - HANGER, TAIL GATE 65685 - STOPPER, TAIL GATE HANGER 65696 - LATCH, TAIL GATE LOCK ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
