TOYOTA TOWN MASTERACE V WG KR11V-JDEJ / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CARBURETOR

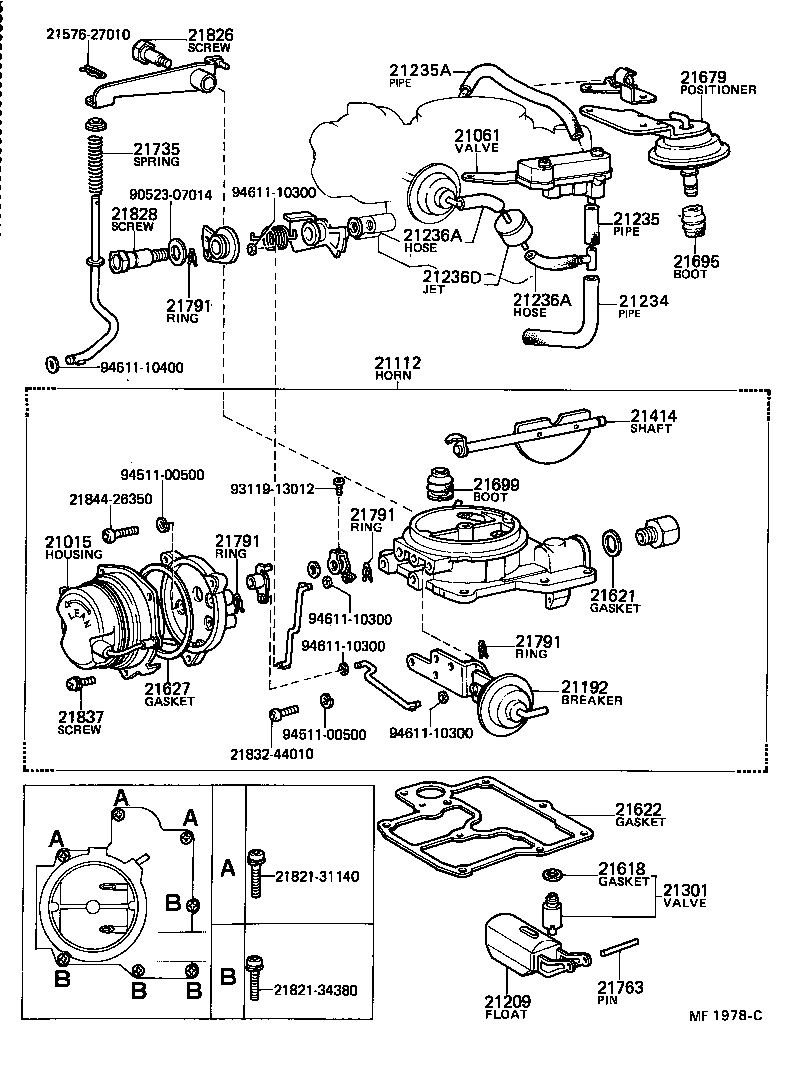

ILLUST NO. 1 OF 2(7802-7910)4KJ

 TOWN MASTERACE V WG |  CARBURETOR 21015 - HOUSING SUB-ASSY, COIL 21061 - VALVE SUB-ASSY, THERMOSTATIC 21112 - HORN, AIR 21192 - BREAKER 21209 - FLOAT SUB-ASSY 21234 - PIPE OR HOSE 21235 - PIPE OR HOSE, CONNECTING 21235A - PIPE OR HOSE, CONNECTING 21236A - HOSE, NO.1(FOR OPENER) 21236A - HOSE, NO.1(FOR OPENER) 21236D - JET(FOR OPENER) 21301 - VALVE SUB-ASSY, NEEDLE 21414 - SHAFT, CHOKE  ** Std Part 21618 - GASKET, NEEDLE VALVE SEAT 21621 - GASKET, UNION NIPPLE 21622 - GASKET, AIR HORN 21627 - GASKET, COIL HOUSING 21679 - POSITIONER 21695 - BOOT(FOR DASH POT) 21699 - BOOT(FOR PUMP PLUNGER) 21735 - SPRING, PUMP ARM 21763 - PIN, FLOAT LEVER 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK)  ** Std Part  ** Std Part 21826 - SCREW, PUMP ARM SET 21828 - SCREW, 1ST IDLE SET  ** Std Part 21837 - SCREW, COIL HOUSING SET  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
