TOYOTA CROWN MS117V-SXKDSW / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

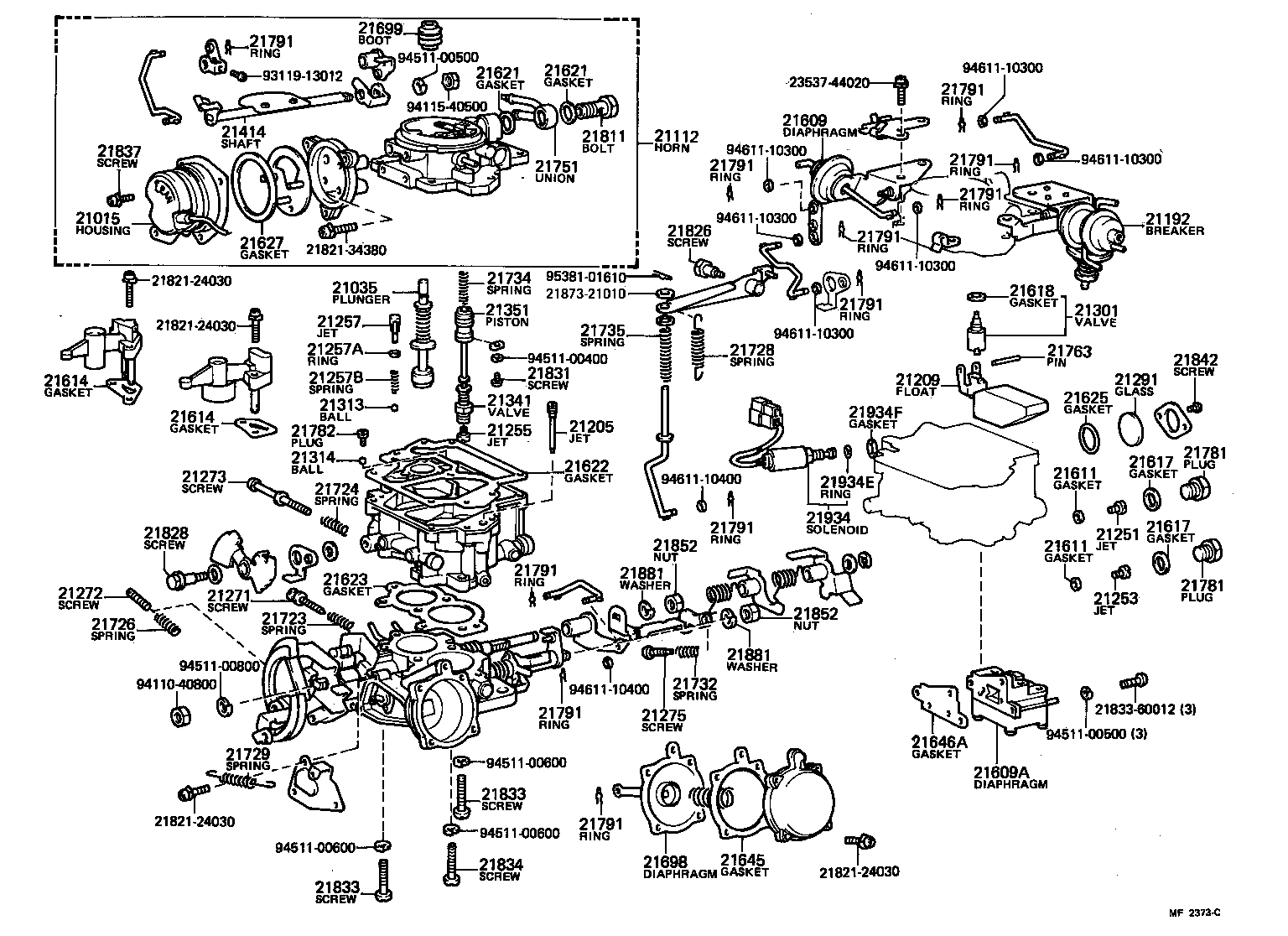

CARBURETOR

(7909-8208)MJ

CROWN | CARBURETOR 21015 - HOUSING SUB-ASSY, COIL 21035 - PLUNGER SUB-ASSY, PUMP 21112 - HORN, AIR 21192 - BREAKER 21205 - JET SUB-ASSY, SLOW 21209 - FLOAT SUB-ASSY 21251 - JET, 1ST MAIN 21253 - JET, 2ND MAIN 21255 - JET, POWER 21257 - JET, PUMP 21257A - RING, O(FOR PUMP JET) 21257B - SPRING(FOR PUMP JET) 21271 - SCREW, IDLE ADJUSTING 21272 - SCREW, 1ST IDLE ADJUSTING 21273 - SCREW, THROTTLE ADJUSTING 21275 - SCREW, ADJUSTING 21291 - GLASS, LEVEL GAGE 21301 - VALVE SUB-ASSY, NEEDLE 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) 21341 - VALVE, POWER 21351 - PISTON, POWER 21414 - SHAFT, CHOKE 21609 - DIAPHRAGM SUB-ASSY 21609A - DIAPHRAGM, NO.2 21611 - GASKET, MAIN JET 21611 - GASKET, MAIN JET 21614 - GASKET, VENTURI 21614 - GASKET, VENTURI 21617 - GASKET, MAIN PASSAGE PLUG 21617 - GASKET, MAIN PASSAGE PLUG 21618 - GASKET, NEEDLE VALVE SEAT 21621 - GASKET, UNION NIPPLE 21621 - GASKET, UNION NIPPLE 21622 - GASKET, AIR HORN 21623 - GASKET, BODY FLANGE 21625 - GASKET, LEVEL GAGE 21627 - GASKET, COIL HOUSING 21645 - GASKET, DIAPHRAGM, CAP 21646A - GASKET, DIAPHRAGM HOUSING, NO.2 21698 - DIAPHRAGM 21699 - BOOT(FOR PUMP PLUNGER) 21723 - SPRING, IDLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21726 - SPRING, 1ST IDLE ADJUSTING 21728 - SPRING, THROTTLE VALVE RETURN 21729 - SPRING, 1ST THROTTLE BACK 21732 - SPRING, THROTTLE ADJUSTING 21734 - SPRING, POWER PISTON 21735 - SPRING, PUMP ARM 21751 - UNION, NIPPLE 21763 - PIN, FLOAT LEVER 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21782 - PLUG, NUT(FOR ACCELERATING SYSTEM) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21811 - BOLT, UNION NIPPLE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 21826 - SCREW, PUMP ARM SET 21828 - SCREW, 1ST IDLE SET 21831 - SCREW, POWER PISTON STOP 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) ** Std Part 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) 21837 - SCREW, COIL HOUSING SET 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) 21852 - NUT, THROTTLE LEVER SET 21852 - NUT, THROTTLE LEVER SET ** Std Part 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) 21934 - SOLENOID, THROTTLE VALVE 21934E - RING, O(FOR SOLENOID VALVE) 21934F - GASKET ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
