TOYOTA MARK 2 TX60-XEKRS / ELECTRICAL / HEATING AIR CONDITIONING VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING VACUUM PIPING

(8009- )TX6#

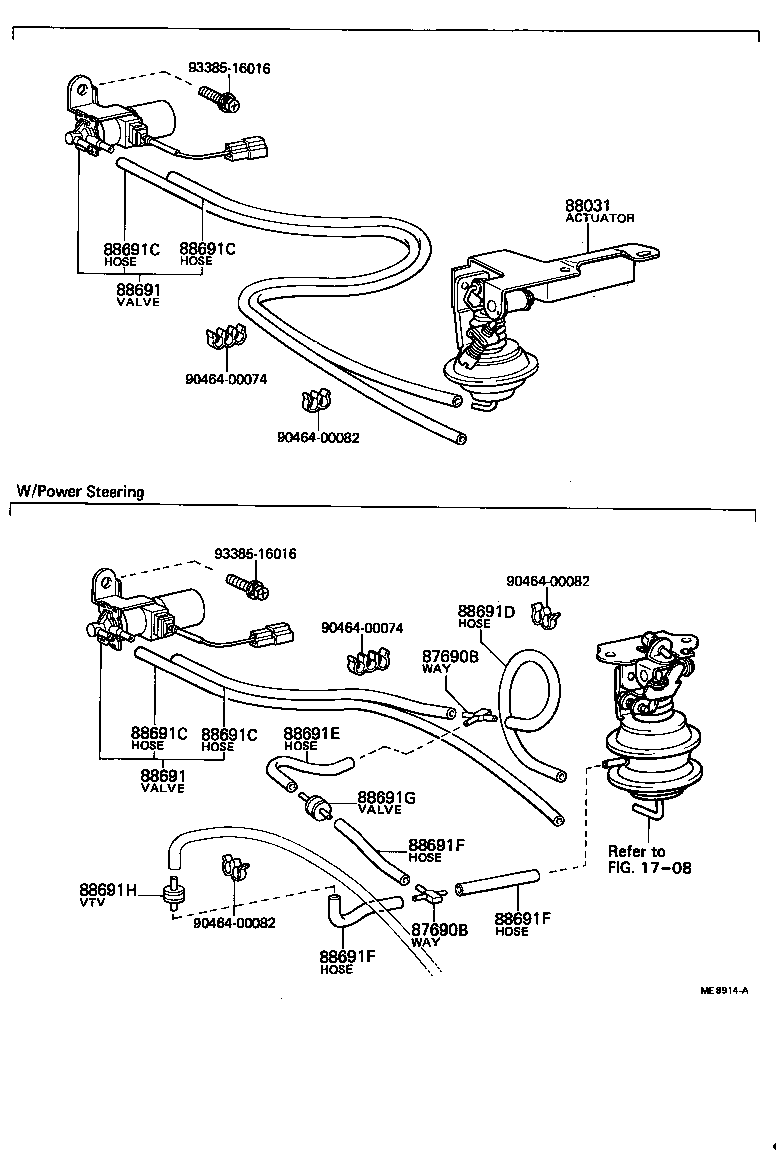

MARK 2 | HEATING AIR CONDITIONING VACUUM PIPING ** Refer Fig 87690B - WAY, 3 87690B - WAY, 3 88031 - ACTUATOR SET, IDLE-UP 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2 88691E - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.3 88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4 88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4 88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4 88691G - VALVE, CHECK(FOR IDLE-UP DIVICE) 88691H - VALVE, VACUUM TRANSMITTING (FOR IDLE UP DIVICE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
