TOYOTA CENTURY VG35-ENQE / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

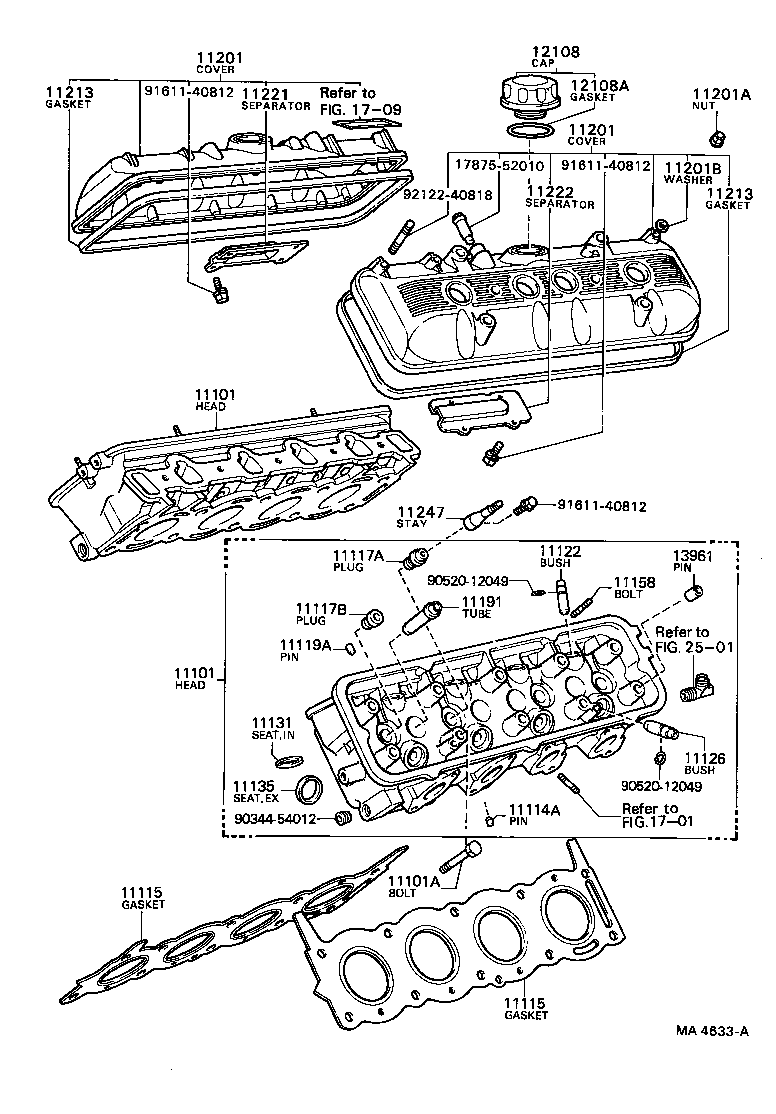

CYLINDER HEAD

(8005- )

CENTURY | CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11114A - PIN, STRAIGHT 11115 - GASKET, CYLINDER HEAD 11115 - GASKET, CYLINDER HEAD 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 11119A - PIN, STRAIGHT, NO.1 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) 11191 - TUBE, SPARK PLUG 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11213 - GASKET, CYLINDER HEAD COVER 11213 - GASKET, CYLINDER HEAD COVER 11221 - SEPARATOR, CYLINDER HEAD COVER, NO.1 11222 - SEPARATOR, CYLINDER HEAD COVER, NO.2 11247 - STAY, CYLINDER HEAD COVER 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) 13961 - PIN, ROCKER SUPPORT ** Refer Fig ** Refer Fig ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
