TOYOTA MARK 2 GX61-XTPME / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

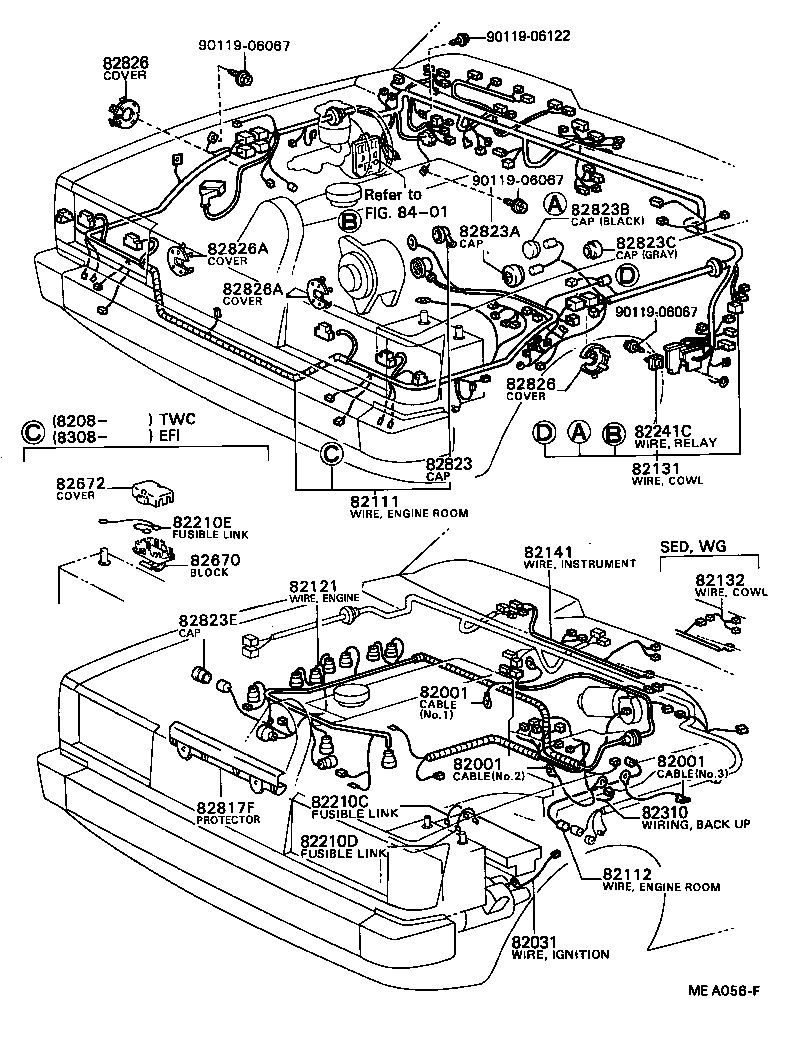

ILLUST NO. 1 OF 5(8009- )GX6#

 MARK 2 |  WIRING CLAMP 82001 - CABLE, BOND, NO.1 82001 - CABLE, BOND, NO.1 82001 - CABLE, BOND, NO.1 82031 - WIRE SUB-ASSY, IGNITION COIL 82111 - WIRE, ENGINE ROOM MAIN 82112 - WIRE, ENGINE ROOM, NO.2 82121 - WIRE, ENGINE 82131 - WIRE, COWL 82132 - WIRE, COWL, NO.2 82141 - WIRE, INSTRUMENT PANEL 82210C - FUSIBLE LINK 82210D - FUSIBLE LINK 82210E - FUSIBLE LINK 82241C - WIRE, RELAY 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH 82670 - BLOCK ASSY, JUNCTION, NO.1 82672 - COVER, JUNKTION BLOCK 82817F - PROTECTOR, WIRING HARNESS, NO.7 82823 - CAP, TERMINAL, NO.1 82823A - CAP, TERMINAL, NO.2 82823B - CAP, TERMINAL, NO.3 82823C - CAP, TERMINAL, NO.4 82823E - CAP, TERMINAL, NO.5 82826 - COVER, WIRING HARNESS HOLE 82826 - COVER, WIRING HARNESS HOLE 82826A - COVER, WIRING HARNESS HOLE, NO.2 82826A - COVER, WIRING HARNESS HOLE, NO.2 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part
