TOYOTA MARK 2 RX60-XTPNS / TOOL-ENGINE-FUEL / EXHAUST GAS RECIRCULATION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

EXHAUST GAS RECIRCULATION SYSTEM

(8009-8208)21RU

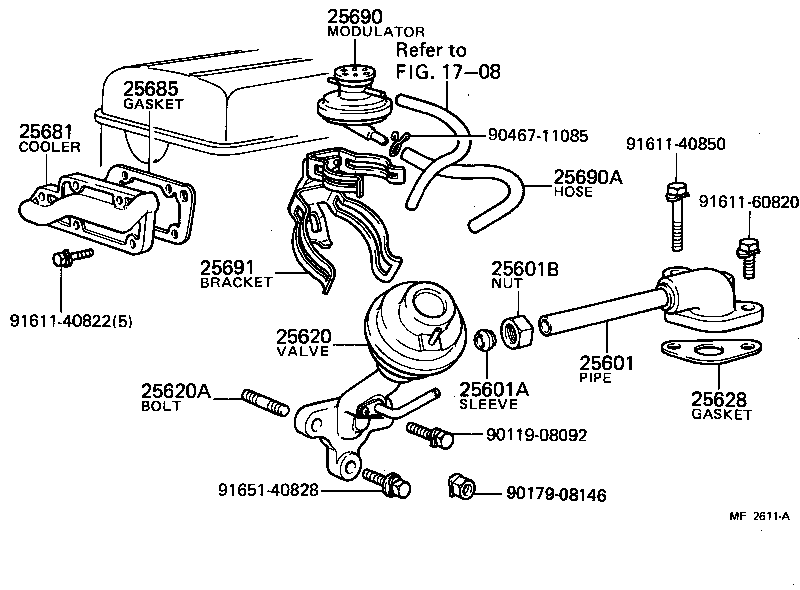

MARK 2 | EXHAUST GAS RECIRCULATION SYSTEM ** Refer Fig 25601 - PIPE SUB-ASSY, EGR, NO.1 25601A - SLEEVE, BALL, EGR PIPE, NO.1 25601B - NUT, UNION, EGR PIPE, NO.1 25620 - VALVE ASSY, EGR 25620A - BOLT, STUD(FOR EGR VALVE) 25628 - GASKET, EGR INLET 25681 - COOLER, EGR, NO.1 25685 - GASKET, EGR COOLER, NO.1 25690 - MODULATOR ASSY, EGR VACUUM 25690A - HOSE(FOR EGR VACUUM MODULATOR) 25691 - BRACKET, EGR VACUUM MODULATOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
