TOYOTA BLIZZARD LD10V-KDCE / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

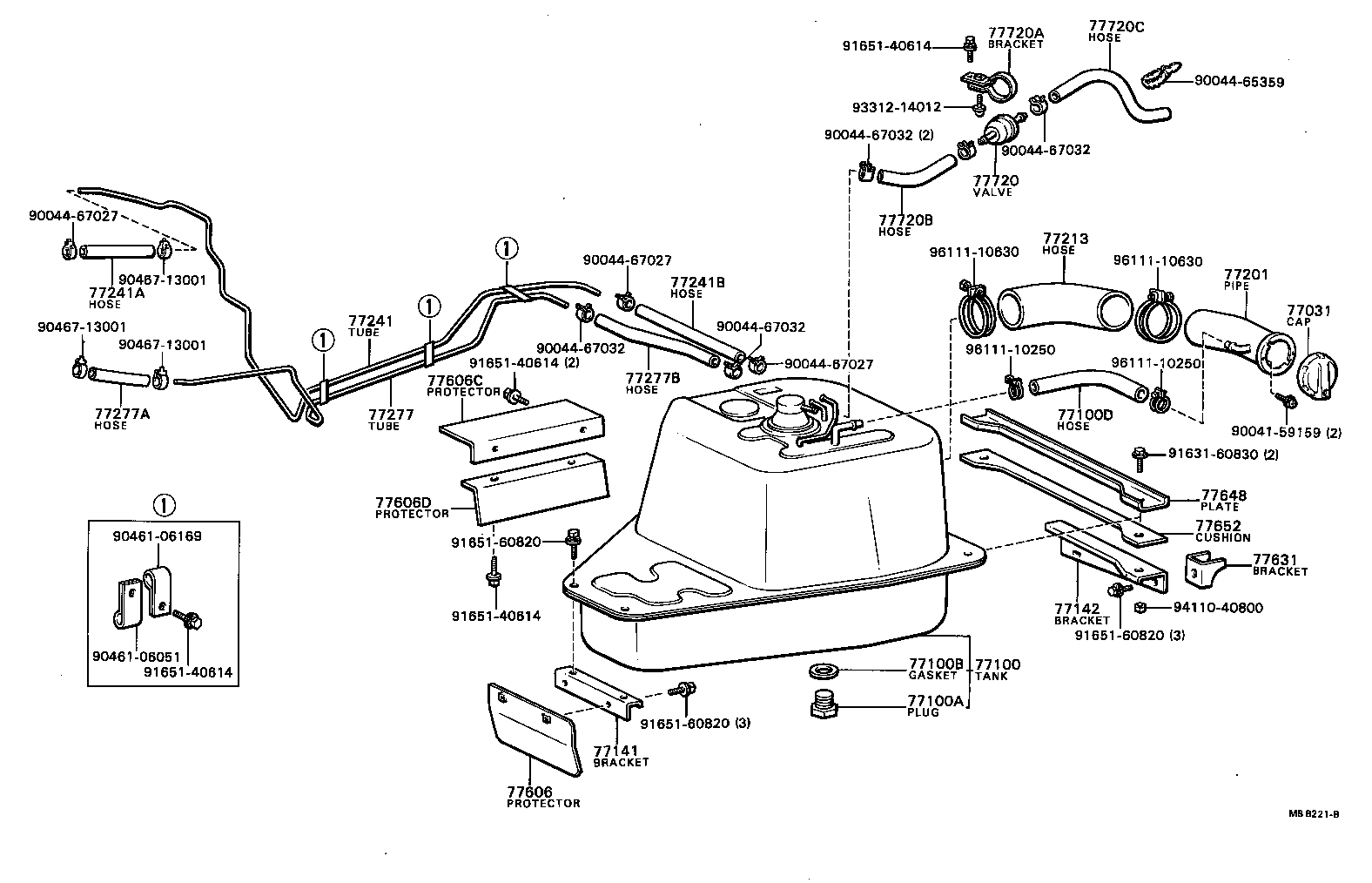

FUEL TANK TUBE

(8003- )

BLIZZARD | FUEL TANK TUBE 77031 - CAP ASSY, FUEL TANK 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77141 - BRACKET, FUEL TANK MOUNTING, FRONT 77142 - BRACKET, FUEL TANK MOUNTING, REAR 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77213 - HOSE, FUEL TANK SUB INLET 77241 - TUBE, FUEL MAIN, NO.1 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) 77277 - TUBE, FUEL RETURN, NO.1 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77606C - PROTECTOR, FUEL TANK, NO.2 77606D - PROTECTOR, FUEL TANK, NO.3 77631 - BRACKET, FUEL TANK, NO.1 77648 - PLATE, FUEL TANK SET, REAR 77652 - CUSHION, FUEL TANK, NO.1 77720 - VALVE SUB-ASSY, SAFETY 77720A - BRACKET, SAFETY VALVE 77720B - HOSE, FUEL, NO.1(FOR SAFETY VALVE) 77720C - HOSE, FUEL, NO.2(FOR SAFETY VALVE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
