TOYOTA BLIZZARD LD10V-KDCE / POWERTRAIN-CHASSIS / TRANSFER GEAR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

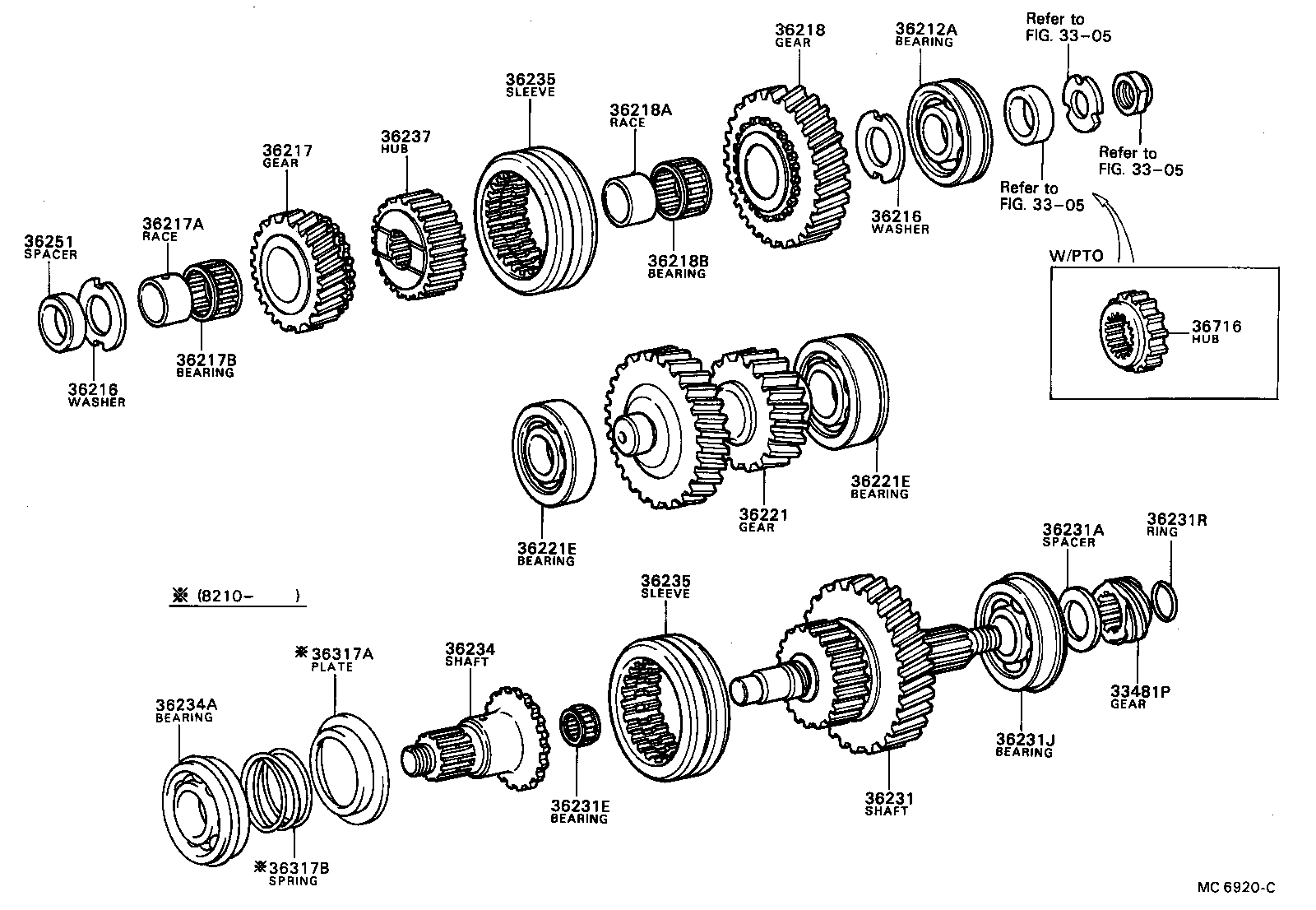

TRANSFER GEAR

(8003- )4F

BLIZZARD | TRANSFER GEAR ** Refer Fig ** Refer Fig ** Refer Fig 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) 36216 - WASHER, TRANSFER INPUT GEAR THRUST 36216 - WASHER, TRANSFER INPUT GEAR THRUST 36217 - GEAR, TRANSFER LOW SPEED INPUT 36217A - RACE, TRANSFER INPUT LOW SPEED GEAR BEARING, INNER 36217B - BEARING (FOR INPUT HIGH SPEED GEAR) 36218 - GEAR, TRANSFER HI SPEED INPUT 36218A - RACE, TRANSFER INPUT HIGH SPEED GEAR BEARING, INNER 36218B - BEARING (FOR INPUT LOW SPEED GEAR) 36221 - GEAR, TRANSFER IDLER 36221E - BEARING, RADIAL BALL (FOR TRANSFER IDLER GEAR) 36221E - BEARING, RADIAL BALL (FOR TRANSFER IDLER GEAR) 36231 - SHAFT, TRANSFER OUTPUT, REAR 36231A - SPACER (FOR TRANSFER OUTPUT SHAFT) 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT) 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) 36231R - RING, O (FOR TRANSFER OUTPUT SHAFT) 36234 - SHAFT, TRANSFER OUTPUT, FRONT 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH 36237 - HUB, TRANSFER CLUTCH 36251 - SPACER, TRANSFER INPUT SHAFT 36317A - PLATE, FRONT DRIVE DISENGAGE 36317B - SPRING, COMPRESSION (FOR FRONT DRIVE DISENGAGE PLATE) 36716 - HUB, POWER TAKE-OFF CLUTCH
