TOYOTA BLIZZARD LD10V-KDCE / POWERTRAIN-CHASSIS / REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

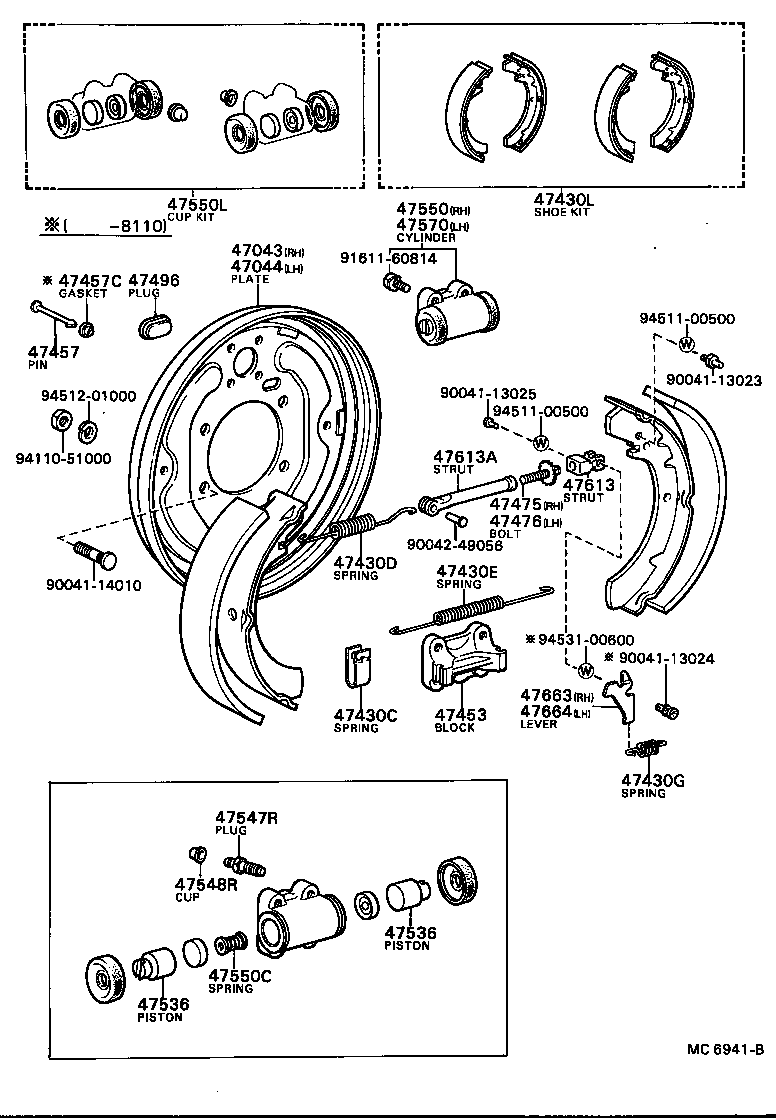

REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

(8003- )

BLIZZARD | REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) 47430L - SHOE KIT, REAR BRAKE 47453 - BLOCK, REAR BRAKE SHOE ANCHOR 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47457C - GASKET(FOR REAR SHOE HOLD DOWN SPRING PIN) 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE) 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) 47496 - PLUG, HOLE(FOR REAR BRAKE) 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) 47550L - CUP KIT, REAR WHEEL CYLINDER 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) 47613 - STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE) 47613A - STRUT, PARKING BRAKE SHOE, NO.2(FOR REAR BRAKE) 47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) 47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
