TOYOTA CAMRY VISTA CV10-JEMNX / POWERTRAIN-CHASSIS / VANE PUMP RESERVOIR POWER STEERING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VANE PUMP RESERVOIR POWER STEERING

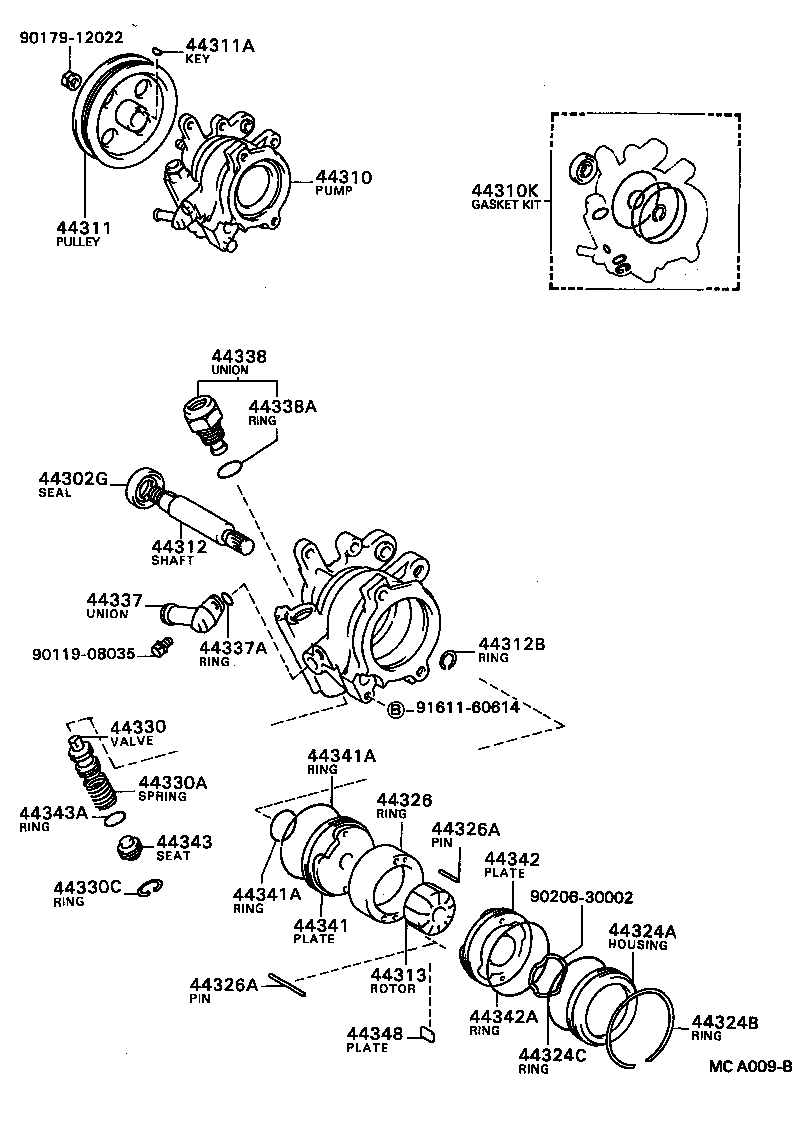

ILLUST NO. 1 OF 2(8308- )CV1#

CAMRY VISTA | VANE PUMP RESERVOIR POWER STEERING 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) 44310 - PUMP ASSY, VANE 44310K - GASKET KIT, POWER STEERING PUMP 44311 - PULLEY, VANE PUMP 44311A - KEY, VANE PUMP PULLEY 44312 - SHAFT, VANE PUMP 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) 44313 - ROTOR, VANE PUMP 44324A - HOUSING, PUMP, REAR 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) 44324C - RING, O(FOR PUMP HOUSING REAR) 44326 - RING, CAM(FOR VANE PUMP) 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) 44330 - VALVE ASSY, FLOW CONTROL 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) 44337 - UNION, POWER STEERING SUCTION PORT 44337A - RING, O(FOR POWER STEERING SUCTION PORT) 44338 - UNION, PRESSURE PORT 44338A - RING, O(FOR PRESSURE PORT UNION) 44341 - PLATE, VANE PUMP SIDE, FRONT 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) 44342 - PLATE, VANE PUMP SIDE, REAR 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) 44343 - SEAT, FLOW CONTROL SPRING 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) 44348 - PLATE, VANE PUMP ** Std Part ** Std Part ** Std Part ** Std Part
