TOYOTA CARINA FR AA63-ACMQF / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

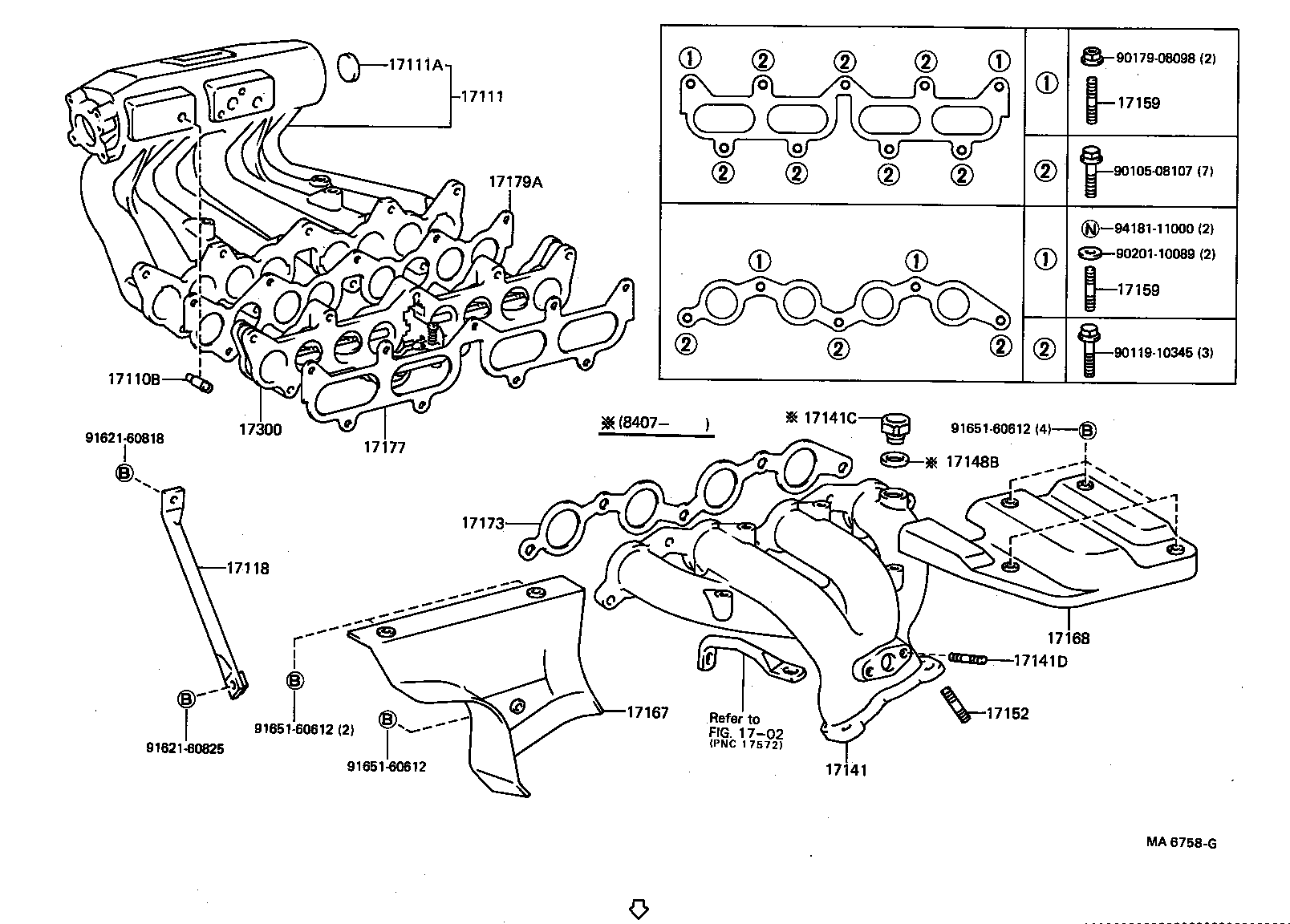

MANIFOLD

(8305-8507)4AGEU

 CARINA FR |  MANIFOLD ** Refer Fig 17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD) 17111 - MANIFOLD, INTAKE 17111A - PLUG, NO.1 17118 - STAY, MANIFOLD 17141 - MANIFOLD, EXHAUST 17141C - PLUG, W/HEAD STRAIGHT SCREW 17141D - BOLT, STUD(FOR OXYGEN SENSOR) 17148B - GASKET, EGR INLET 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17179A - GASKET, INTAKE MANIFOLD, NO.2 17300 - VALVE ASSY, INTAKE AIR CONTROL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
