TOYOTA CARINA FR TA63-ACMQZ / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

MANIFOLD

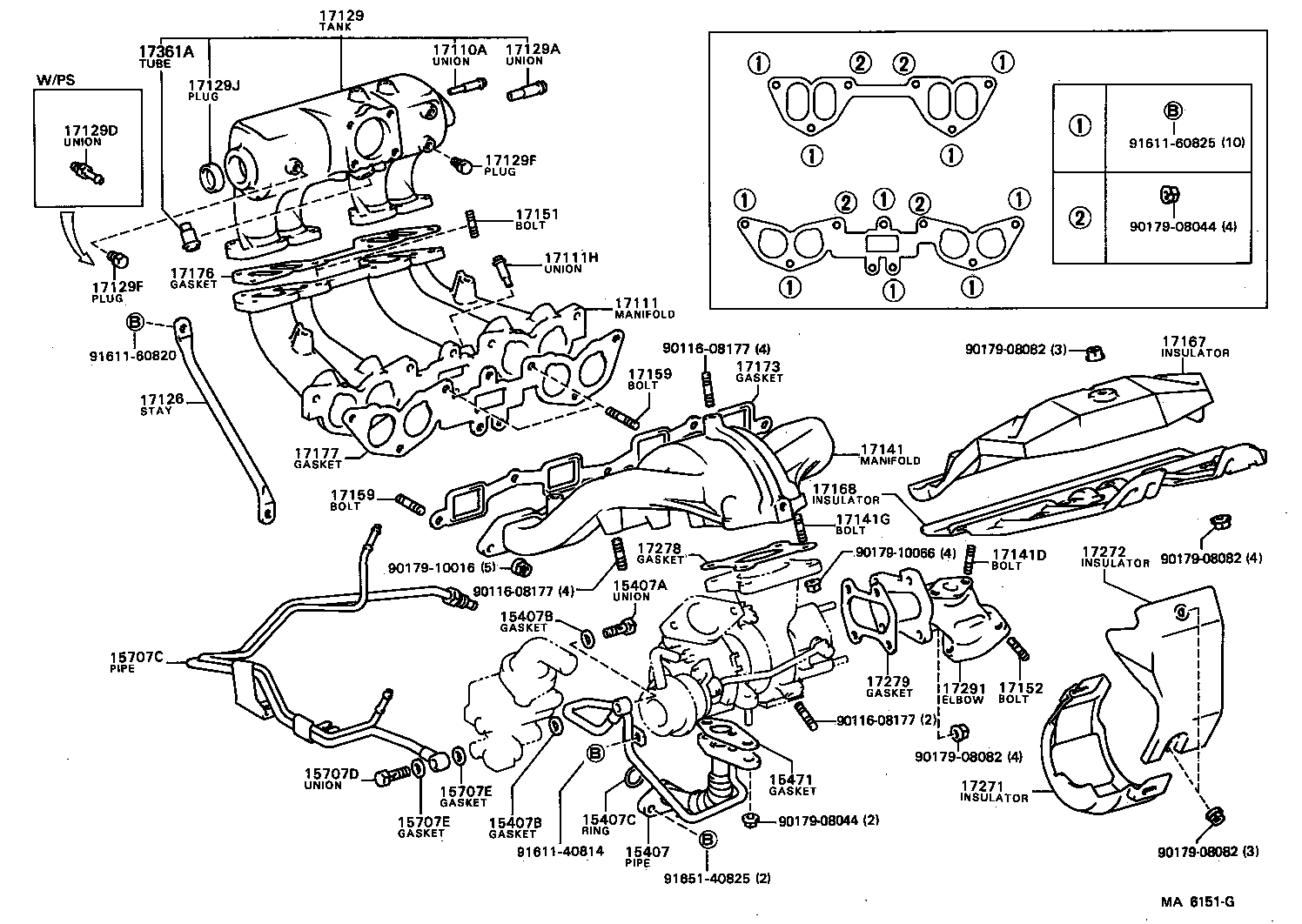

ILLUST NO. 1 OF 2(8210-8507)3TGTEU

 CARINA FR |  MANIFOLD 15407 - PIPE SUB-ASSY, TURBO OIL INLET 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407C - RING, O(FOR TURBO OIL PIPE) 15471 - GASKET, TURBO OIL INLET 15707C - PIPE SUB-ASSY, OIL 15707D - BOLT, UNION(FOR OIL PIPE) 15707E - GASKET(FOR OIL PIPE) 15707E - GASKET(FOR OIL PIPE) 17110A - UNION, VACUUM HOSE 17111 - MANIFOLD, INTAKE 17111H - UNION(FOR INTAKE MANIFOLD WATER) 17126 - STAY, SURGE TANK, NO.2 17129 - TANK, INTAKE AIR SURGE 17129A - UNION, NO.1 17129D - UNION, NO.2 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE 17129J - PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) 17141 - MANIFOLD, EXHAUST 17141D - BOLT, STUD(FOR OXYGEN SENSOR) 17141G - BOLT, STUD(FOR TURBOCHARGER) 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17271 - INSULATOR, TURBO, NO.1 17272 - INSULATOR, TURBO, NO.2 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17279 - GASKET, TURBINE OUTLET ELBOW 17291 - ELBOW, TURBINE OUTLET 17361A - TUBE, AIR(FOR EFI)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
